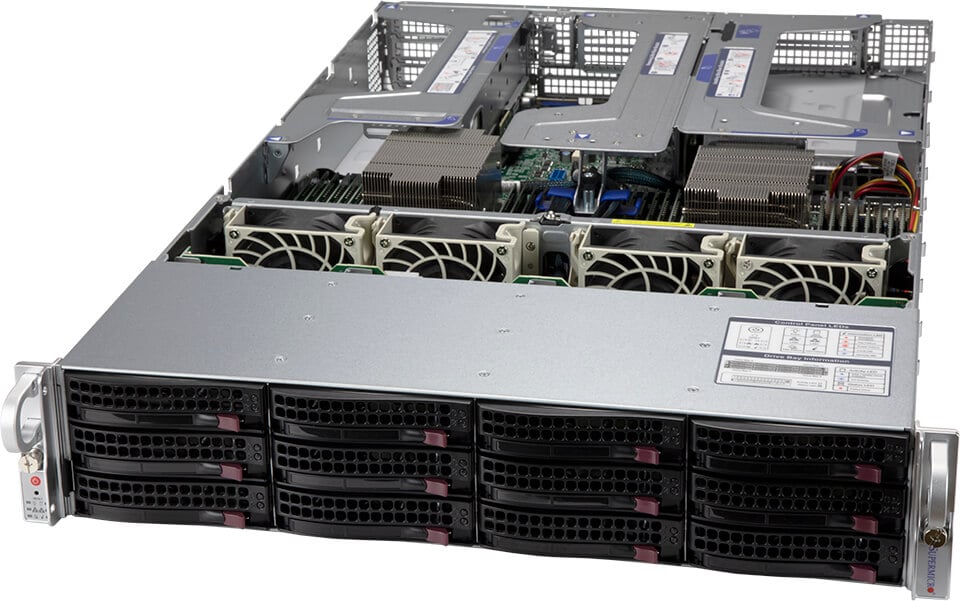

• Silver and black ultra 2u dual amd epyc server with 8tb ram and 12 drive bays showing internal hardware components
1 1

Supermicro

Supermicro AS-2024US-TRT | Ultra 2U Dual AMD EPYC Server, 8TB RAM, 12-Bay

AS-2024US-TRT

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The Supermicro AS-2024US-TRT is a high-performance 2U rackmount server designed for virtualization, cloud computing, and enterprise workloads. It supports dual AMD EPYC 7003/7002 series processors with up to 8TB of DDR4-3200MHz memory across 32 DIMM slots. With 12 hot-swap 3.5-inch drive bays supporting SATA3, SAS3, or NVMe configurations, dual 10GBase-T networking, PCIe 4.0 expansion, and redundant 1600W Titanium-level power supplies, this server delivers exceptional scalability and efficiency for demanding IT environments.

Features

Dual AMD EPYC 7003/7002 series processor support with up to 64 cores per CPU
- PCIe 4.0 architecture with 6 expansion slots for high-speed I/O and GPU support
- 8-channel DDR4-3200MHz memory architecture per processor for maximum bandwidth
- Hot-swap 3.5-inch drive bays with flexible SATA, SAS, or NVMe configuration options
- Dual 10GBase-T networking via Intel X710-AT2 for high-speed connectivity
- IPMI 2.0 with dedicated management LAN and KVM-over-IP for remote administration
- Out-of-Band management license included for comprehensive remote BIOS control
- Redundant 1600W Titanium-level power supplies (96%+ efficiency) for reliability and energy savings
- Supports up to 2 double-width GPUs for AI, machine learning, and HPC workloads
- Tool-less drive bay design for easy maintenance and hot-swap capability
- AST2500 graphics controller for local and remote console access
- Compatible with VMware ESXi, Red Hat Enterprise Linux, SUSE Linux, Windows Server, Ubuntu, and Oracle Linux
- Optimized thermal design for high-TDP processors up to 280W
- H12DSU-iN motherboard with enterprise-grade reliability features

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 2U Rackmount
- Processors: Dual AMD EPYC 7003/7002 Series, Socket SP3, up to 280W TDP per CPU
- Memory: 32x DIMM slots, up to 8TB DDR4-3200MHz ECC Registered SDRAM, 8-channel memory bus
- Drive Bays: 12x hot-swap 3.5-inch bays (12x SATA3 default, or 8x SATA3 + 4x NVMe, or 12x SAS3 with optional kit)
- Expansion Slots: 2x PCIe 4.0 x16 (FH, 10.5" L), 1x PCIe 4.0 x16 (FH, 9.5" L), 1x PCIe 4.0 x16 (LP), 1x PCIe 4.0 x8 (FH, 9.5" L, in x16), 1x PCIe 4.0 x8 (internal LP, in x16)
- Network: Dual 10GBase-T LAN ports via Intel X710-AT2, 1x dedicated IPMI RJ45
- Management: IPMI 2.0 with KVM, dedicated LAN, includes Out-of-Band license (SFT-OOB-LIC)
- Power Supply: Dual 1600W redundant, 80 PLUS Titanium (96%+ efficiency)
- Motherboard: Supermicro H12DSU-iN with AST2500 graphics
- Dimensions: 17.2" W x 3.5" H x 28.46" D (437 x 89 x 723 mm)
- Weight: 36 lbs (16.4 kg) net, 72 lbs (32.7 kg) gross

FAQs

Q: What processor generations does the AS-2024US-TRT support?
A: The AS-2024US-TRT supports dual AMD EPYC 7003 and 7002 series processors (2nd and 3rd generation). Note that AMD EPYC 7003 series processors with AMD 3D V-Cache technology require BIOS version 2.3 or newer. The system supports CPUs with TDP up to 280W.

Q: What storage configurations are available?
A: The server includes 12 hot-swap 3.5-inch drive bays. By default, it supports 12x SATA3 drives. With optional trays, you can configure 8x SATA3 + 4x NVMe drives for hybrid storage. Alternatively, an optional SAS kit enables 12x SAS3 drives. NVMe drives connect directly to the CPU via PCIe 4.0 for low-latency performance.

Q: What is the recommended memory configuration for optimal performance?
A: For optimal performance, Supermicro recommends at least 1 DIMM per memory channel per CPU, which equals 16 DIMMs total (8 per processor). The system supports up to 32 DIMMs with a maximum capacity of 8TB using DDR4-3200MHz ECC Registered, Load Reduced, or 3DS modules.

Q: Can this server be purchased as a barebone system?
A: No, the AS-2024US-TRT is only available as a completely assembled system. Minimum configuration requires 2 processors, 4 memory modules, and 1 drive (HDD or NVMe) to be installed. This ensures proper system validation and optimal performance out of the box.

Q: What type of remote management capabilities does this server offer?
A: The server includes integrated IPMI 2.0 with KVM over a dedicated RJ45 management port. It comes with the Out-of-Band (OOB) license (SFT-OOB-LIC) pre-installed, enabling remote BIOS management and comprehensive server monitoring via SuperDoctor 5, IPMIView, and other Supermicro management tools.
