Supermicro AS-2024S-TR | A+ Mainstream 2U Dual EPYC Server, 16 DIMM, 920W
SKU:AS-2024S-TR
Stock Status: Enquire
Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Custom Built Servers
Need a different spec, quantity or configuration?
We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.
Configure your server now →
Description
Description

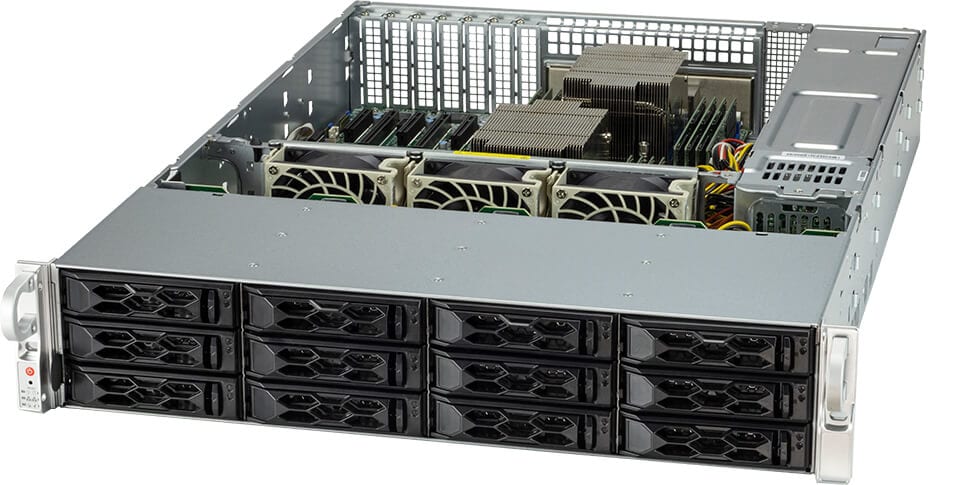

The A+ Mainstream SuperServer AS-2024S-TR is a 2U rackmount server built around the Super H12DSi-N6 motherboard. It takes two AMD EPYC 7002 or 7003 Series processors and suits virtualisation, application and data serving, model analysis and other compute-intensive enterprise workloads.
The dual SP3 sockets support CPUs of up to 64 cores and 128 threads, with up to 240W TDP on air cooling. Sixteen DIMM slots take up to 4TB of 3200MT/s ECC DDR4 RDIMM or LRDIMM. The front panel provides twelve hot-swap 3.5-inch bays, configured by default as 8 SATA/SAS plus 4 NVMe, and a single M.2 NVMe slot is available for a boot drive. Six PCIe 4.0 low-profile slots (3 x16 and 3 x8) handle network, storage and accelerator cards. Networking is two 1GbE RJ45 ports plus a dedicated BMC LAN, and power comes from two redundant 920W Platinum Level (94%) supplies.
The chassis can also be specified with twelve 2.5-inch SAS/SATA bays, and an optional NVMe kit allows up to twelve NVMe drives. SAS drives may require an additional storage controller and cables. The hardware does not require an operating system licence.
Enquire with XS Network Tech for Configured to order Used servers.
Features
Features
- Dual AMD EPYC 7003/7002 Series processors with up to 240W TDP support
- Up to 4TB DDR4-3200 ECC memory across 16 DIMM slots
- Hybrid storage bays allow NVMe, SAS and SATA drives to be mixed
- Up to 12 NVMe drives supported with an optional NVMe kit
- Six PCIe 4.0 low-profile expansion slots
- Dedicated IPMI 2.0 port with virtual media and KVM-over-LAN
- Redundant hot-swap 920W Platinum Level power supplies
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 2U rackmount, 1 node
- Motherboard: Super H12DSi-N6
- Chassis model: CSE-LA26TS-R920LPP1
- Processor: Dual Socket SP3, AMD EPYC 7002/7003 Series
- Core count: Up to 64C/128T, up to 256MB cache per CPU
- CPU power: Supports up to 240W TDP (air cooled)
- Chipset: AMD SP3
- Memory slots: 16 DIMM slots
- Maximum memory: Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM (1DPC)
- Memory voltage: 1.2V
- Drive bays (default): 12 front hot-swap 3.5" bays, 8 SATA/SAS plus 4 NVMe
- Drive bays (option): 12 front hot-swap 2.5" SAS/SATA
- M.2: 1 M.2 NVMe slot (M-key 2280/22110), PCIe 3.0 x4
- Expansion slots: 3 PCIe 4.0 x16 LP, 3 PCIe 4.0 x8 LP
- LAN: 2 x 1GbE RJ45 plus 1 dedicated BMC LAN
- USB: 2 x USB 2.0 and 2 x USB 3.0 (rear)
- Video: 1 VGA port
- DOM: 2 SuperDOM ports
- Cooling: Up to 3 middle 80mm fans, 1 air shroud
- Power supply: 2 x 920W redundant Platinum Level (94%)
- Power management: ACPI/APM
- Dimensions (H x W x D): 89 x 437 x 648 mm
FAQs
Q: Does this server require a licence?
A: The hardware does not require an operating system licence. Out-of-band management uses IPMI 2.0 through the dedicated BMC LAN port.
Q: Which processors does it support?
A: It supports AMD EPYC 7002 and 7003 Series processors in dual SP3 sockets, up to 240W TDP with air cooling.
Q: Can it run NVMe drives in all twelve bays?
A: The default configuration has 4 NVMe and 8 SATA/SAS bays. Up to 12 NVMe drives are supported with the optional NVMe kit.
Q: Can it use SAS drives?
A: Yes, the bays accept SAS drives, but SAS may require an additional storage controller and cables.
Q: How is it powered?
A: Power comes from two redundant 920W Platinum Level (94% efficiency) hot-swap power supplies.
