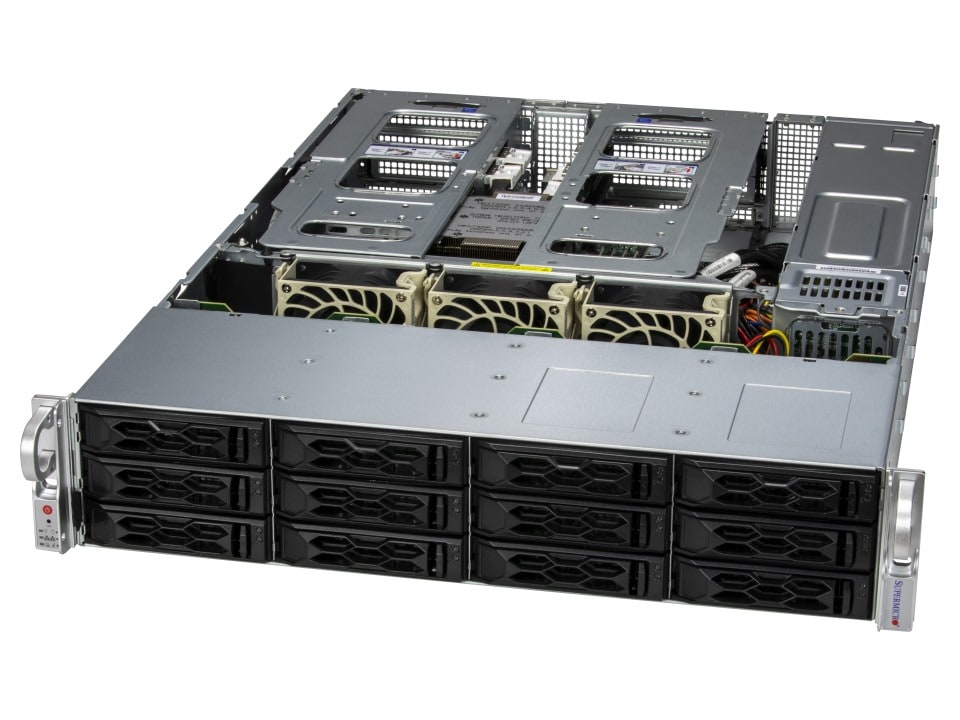

• Silver and black 2u rack mount server with multiple drive bays and cooling fans supermicro as 2015cs tnr h13 clouddc
1 1

Supermicro

Supermicro AS-2015CS-TNR | H13 CloudDC 2U Single-Socket Server, AMD EPYC 9004/9005

AS-2015CS-TNR

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The Supermicro AS-2015CS-TNR is a 2U single-socket rackmount server engineered for cloud computing, virtualization, and edge deployments. Powered by AMD EPYC 9004 or 9005 series processors with up to 160 cores, it features 12 DDR5 DIMM slots supporting up to 3TB of memory, 12 hot-swap 3.5 or 2.5-inch hybrid drive bays for NVMe, SAS, or SATA storage, and PCIe 5.0 expansion slots with dual AIOM OCP 3.0 networking. Ideal for dense compute nodes, value IaaS, CDN services, and storage headnodes requiring high I/O bandwidth and platform efficiency.

Features

Single-socket AMD EPYC 9004/9005 architecture with up to 160 cores for high-density computing
- DDR5 memory support with speeds up to 6400MT/s for enhanced data throughput
- PCIe 5.0 expansion slots for next-generation accelerators, NICs, and storage controllers
- Dual AIOM OCP 3.0 slots for flexible, high-speed networking configurations
- Hybrid storage design supporting NVMe, SAS, and SATA drives with hot-swap capability
- GPU acceleration support for up to 2 double-width or 4 single-width GPUs with PCIe 5.0 x16 connectivity
- Redundant Titanium-level power supplies for 96% efficiency and high availability
- IPMI 2.0 with dedicated LAN port for comprehensive remote management
- OCP Data Center Modular Hardware System (DC-MHS) form factor for standardized deployment
- Tool-less drive bays and optimal airflow design for efficient serviceability
- SuperDoctor 5 and Supermicro Server Automation Assistant for proactive monitoring

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 2U rackmount server
- Processor: Single AMD EPYC 9004/9005 series (up to 160 cores, 320 threads, 400W TDP)
- Memory: 12 DDR5 DIMM slots, up to 3TB ECC RDIMM, speeds up to 6400MT/s (9005 series)
- Storage: 12 hot-swap 3.5-inch/2.5-inch hybrid drive bays (SATA default, optional NVMe or SAS with additional parts)
- M.2 Slots: 2x M.2 PCIe 3.0 x2 NVMe (2280/22110, boot drives)
- Expansion: 2x PCIe 5.0 x16 FHFL, 2x PCIe 5.0 x16 FHHL, 2x PCIe 5.0 x8 FHFL (optional)
- Networking: Dual AIOM (OCP 3.0) slots, 1 dedicated IPMI LAN port
- GPU Support: Up to 2 double-width or 4 single-width GPUs
- Power Supply: Dual 1200W redundant Titanium level (96% efficiency)
- Management: ASPEED AST2600 BMC, SuperDoctor 5, IPMI 2.0
- Dimensions: 437 x 89 x 648mm (17.2 x 3.5 x 25.5 inches)
- I/O: 1 VGA, 1 COM, 2 USB 3.0 (rear)

FAQs

Q: What processors are compatible with the AS-2015CS-TNR?
A: The AS-2015CS-TNR supports single AMD EPYC 9004 and 9005 series processors with up to 160 cores and 320 threads. AMD EPYC 9005 series requires board revision 2.x for drop-in support. The system supports processors with TDP up to 400W.

Q: Can I configure this server with NVMe or SAS storage?
A: Yes. The base configuration includes 12 hot-swap 3.5-inch or 2.5-inch SATA drive bays. Optional NVMe (up to 4 drives) or SAS (up to 12 drives) configurations are available with additional storage controllers and cables. The system also includes 2 M.2 PCIe 3.0 NVMe slots for boot drives.

Q: What networking options are available?
A: The AS-2015CS-TNR features dual AIOM slots compatible with OCP 3.0 networking modules, providing flexible options for 10GbE, 25GbE, or higher-speed Ethernet connectivity. It also includes a dedicated 1GbE IPMI LAN port for out-of-band management.

Q: How much memory can this server support?
A: The system supports up to 3TB of DDR5 ECC RDIMM memory across 12 DIMM slots with single-channel-per-DIMM architecture. Memory speeds reach up to 4800MT/s with AMD EPYC 9004 series processors and up to 6400MT/s with EPYC 9005 series processors.

Q: What are typical use cases for this server?
A: The AS-2015CS-TNR is optimized for cloud computing, virtualization, value IaaS, content delivery networks, edge nodes, storage headnodes, DNS and gateway servers, and data center deployments requiring balanced compute, storage density, and PCIe 5.0 expansion for high-bandwidth workloads.
