Supermicro AS-2014S-TR | A+ Server 2U EPYC, 12x 3.5" SATA, 8 DIMM, 2x 920W PSU
SKU:AS-2014S-TR
Stock Status: Enquire
Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Custom Built Servers
Need a different spec, quantity or configuration?
We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.
Configure your server now →
Description
Description

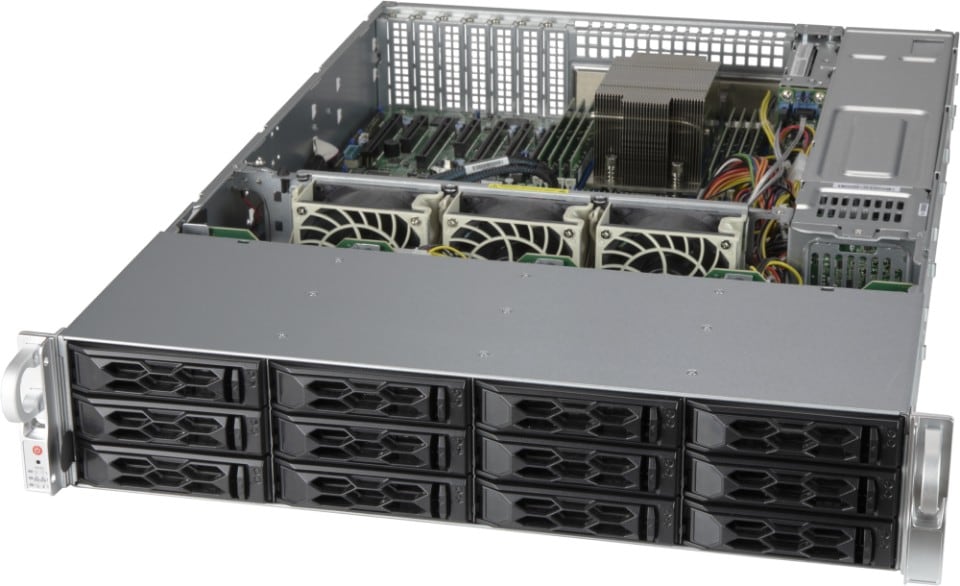

The Supermicro AS-2014S-TR is a 2U single-socket AMD EPYC 7002/7003 rackmount server from the Mainstream A+ Server range, built on the Super H12SSL-i motherboard. It suits backup storage, compact network appliance, and web or database roles.
The chassis provides 12 front hot-swap 3.5" SATA bays, with an optional kit adding 2 rear hot-swap 2.5" SATA bays. There are 8 DDR4 DIMM slots supporting up to 2TB of 3200MT/s ECC RDIMM/LRDIMM, 7 low-profile PCIe 4.0 slots (5 x16 and 2 x8) and 2 M.2 PCIe 4.0 x4 slots. Networking is 2x 1GbE RJ45 plus a dedicated BMC LAN port. Power comes from 2x 920W redundant (1+1) Platinum Level (94%) supplies.
It supports EPYC 7002/7003 processors up to 280W TDP with air cooling, and EPYC 7003 with AMD 3D V-Cache needs BIOS 2.3 or newer. The platform is certified for Windows Server 2019 and 2022, RHEL 8.3 and Oracle Linux 8.3. No licence is required to operate, and IPMI 2.0 out-of-band management is built into the board.
Enquire with XS Network Tech for Configured to order Used servers.
Features
Features
- Single-socket AMD EPYC 7002/7003 platform with support for up to 280W TDP processors
- Up to 2TB DDR4-3200 ECC memory across 8 DIMM slots
- 7 low-profile PCIe 4.0 expansion slots
- 12 hot-swap 3.5" SATA bays, expandable with 2 optional rear 2.5" bays
- Dual M.2 PCIe 4.0 x4 slots for boot or cache drives
- Redundant hot-swap 920W Platinum Level (94%) power supplies
- TPM 2.0, Silicon Root of Trust, secure boot and signed firmware
- IPMI 2.0 with KVM-over-LAN, virtual media, Supermicro Update Manager and SuperDoctor 5
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Motherboard: Super H12SSL-i
- Chassis model: CSE-LA26TS-R920LPP1
- Form factor: 2U rackmount
- Processor: Single socket SP3, AMD EPYC 7002/7003 Series
- Maximum CPU TDP: 280W (air cooled)
- Memory: 8 DIMM slots, up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM (1DPC)
- Memory voltage: 1.2V
- Drive bays: 12 front hot-swap 3.5" SATA
- Optional drive bays: 2 rear hot-swap 2.5" SATA via kit (may need additional storage controller/cables)
- Expansion slots: 5 PCIe 4.0 x16 LP, 2 PCIe 4.0 x8 LP
- M.2: 2 slots, PCIe 4.0 x4, M-key 2242/2260/2280/22110
- Network: 2x RJ45 1GbE plus 1x dedicated BMC LAN
- USB: 6x USB 3.0 (rear)
- Video: 1x VGA
- Serial: 1x COM
- BIOS: AMI 256MB SPI Flash ROM
- Cooling: up to 3x 80x80x38mm middle fans
- Power supply: 2x 920W redundant (1+1), Platinum Level (94%)
- PSU input: 100-127Vac / 200-240Vac / 200-240Vdc, 50-60Hz
- Dimensions (H x W x D): 89 x 437 x 648 mm
- Weight: 15.2 kg net, 27.2 kg gross
- Colour: Silver
- Operating temperature: 10 to 35 C
- Operating humidity: 8% to 90% (non-condensing)
- Compliance: RoHS
FAQs
Q: Does this server need a software licence?
A: No licence is required to operate it. Out-of-band management through IPMI 2.0 and the BMC is built into the motherboard.
Q: Which processors does it support?
A: It takes a single AMD EPYC 7002 or 7003 Series SP3 processor up to 280W TDP with air cooling. EPYC 7003 processors with AMD 3D V-Cache require BIOS 2.3 or newer.
Q: What memory does it accept?
A: It has 8 DIMM slots for DDR4-3200 ECC RDIMM or LRDIMM, up to 2TB in total at one DIMM per channel.
Q: What power does it need?
A: It uses 2x 920W redundant (1+1) Platinum Level (94%) hot-swap power supplies. Input is 100-127Vac, 200-240Vac or 200-240Vdc at 50-60Hz.
Q: Can I add more drive bays?
A: Yes. An optional kit adds 2 rear hot-swap 2.5" SATA bays for 14 bays in total, and this may require an additional storage controller or cables.
Q: Which operating systems is it certified for?
A: It is certified for Windows Server 2019 and 2022, Red Hat Enterprise Linux 8.3 and Oracle Linux 8.3 with EPYC 7003 (Milan) processors.
