Supermicro

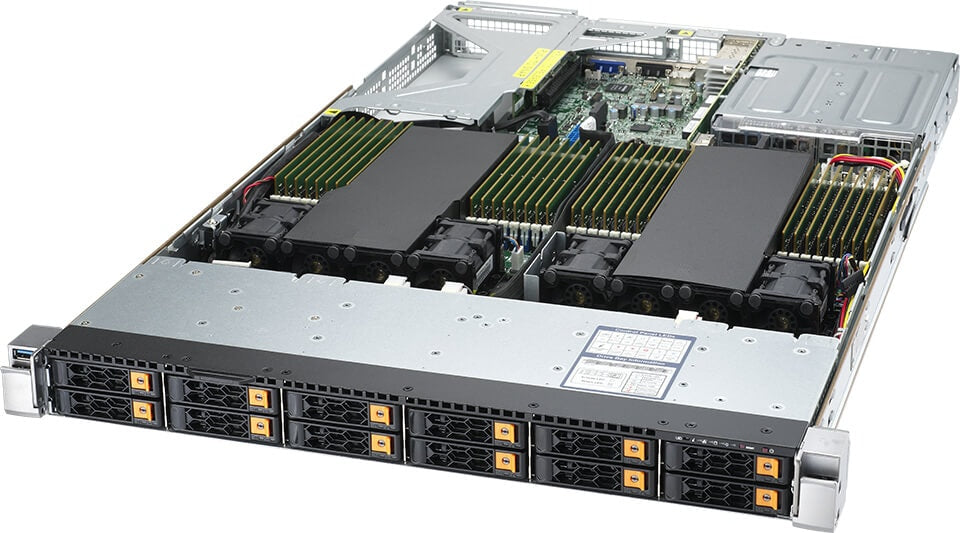

Supermicro AS-1124US-TNRP | Dual AMD EPYC 7002/7003 1U Rack Server, 8TB DDR4, 12x NVMe

AS-1124US-TNRP

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The Supermicro AS-1124US-TNRP is a high-density 1U rackmount server engineered for virtualization, cloud computing, and enterprise workloads. Supporting dual AMD EPYC 7002/7003 series processors with up to 128 cores total, 8TB DDR4 memory across 32 DIMM slots, and 12 hot-swap NVMe drive bays, this system delivers exceptional compute, memory bandwidth, and ultra-fast storage performance. Equipped with quad 10GbE connectivity and redundant titanium-rated power supplies, it combines enterprise reliability with PCIe 4.0 expandability.

Features

Dual AMD EPYC 7002/7003 series processor support with up to 128 cores and 256 threads total
- 8TB maximum DDR4-3200 ECC Registered memory capacity across 32 DIMM slots with 8-channel architecture per CPU
- 12x hot-swap 2.5-inch NVMe U.2 drive bays with PCIe 4.0/3.0 connectivity for ultra-low latency storage
- Optional SAS3 and SATA3 drive support via add-on backplane kits
- Quad 10GbE networking: 2x 10GBase-T and 2x 10G SFP+ via Intel X710-TM4 controller
- Four PCIe 4.0 x16 expansion slots for high-bandwidth adapters, GPUs, or storage controllers
- Redundant 1200W 80 PLUS Titanium (96% efficiency) hot-swap power supplies for maximum uptime
- IPMI 2.0 with KVM, remote virtual media, and Out of Band management license included
- ASPEED AST2500 BMC for comprehensive remote management and monitoring
- Supermicro SuperDoctor 5 and Supermicro Update Manager compatibility for centralized management
- High-performance cooling with 8x counter-rotating 40mm fans
- 1U ultra-compact form factor optimized for high-density data center deployments
- Tool-less hot-swap drive trays for rapid service and maintenance
- Support for Intel VROC (Virtual RAID on CPU) for NVMe software RAID without dedicated HBA
- OS support: VMware ESXi, Citrix Hypervisor, Windows Server, RHEL, SLES, Oracle Linux, Ubuntu Server

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 1U rackmount, 437 x 43 x 739mm (17.2 x 1.7 x 29.1 inches)
- Processor: Dual Socket SP3 for AMD EPYC 7002/7003 series, up to 64 cores per CPU (128 cores total)
- Memory: 32x DIMM slots, up to 8TB DDR4-3200 ECC Registered SDRAM
- Storage: 12x hot-swap 2.5-inch NVMe drive bays (U.2 Gen4/Gen3), optional SAS3/SATA3 support via add-on kit
- Network: Quad 10GbE (2x 10GBase-T RJ45 + 2x 10G SFP+) via Intel X710-TM4 controller
- Expansion: 4x PCIe 4.0 x16 slots (2x full-height 9.5-inch, 1x low-profile, 1x internal proprietary low-profile)
- Management: IPMI 2.0 with dedicated LAN, KVM, virtual media, Out of Band management license included, ASPEED AST2500 BMC
- Power Supply: Dual redundant 1200W/800W 80 PLUS Titanium (96% efficiency) hot-swap PSUs
- Cooling: 8x 40mm counter-rotating fans (23.3K-20.3K RPM)
- Chipset: AMD (native to EPYC platform)

FAQs

Q: What processor generations are supported on the AS-1124US-TNRP?
A: The AS-1124US-TNRP supports both AMD EPYC 7002 (2nd Gen) and 7003 (3rd Gen) series processors in dual Socket SP3 configuration. The latest EPYC 7003 series with AMD 3D V-Cache technology requires BIOS version 2.3 or newer. The system supports up to 64 cores per socket for a total of 128 cores.

Q: Can I use SAS or SATA drives instead of NVMe on this server?
A: Yes, the 12 hot-swap 2.5-inch drive bays natively support NVMe via direct PCIe connectivity. SATA3 and SAS3 drives can be used by installing optional backplane kits and appropriate controllers. A SAS RAID controller would occupy one of the PCIe 4.0 expansion slots to enable SAS drive support.

Q: What is the maximum memory configuration and speed?
A: The AS-1124US-TNRP features 32 DIMM slots (16 per processor) and supports up to 8TB of DDR4-3200 ECC Registered memory. Each processor provides 8 memory channels. For optimal performance, populate memory evenly across both processors using matched RDIMM modules.

Q: What networking capabilities does this server include?
A: The system includes quad 10GbE connectivity via an onboard Intel X710-TM4 controller: 2x 10GBase-T RJ45 copper ports and 2x 10G SFP+ fiber ports. An additional dedicated RJ45 port provides out-of-band management access via IPMI 2.0 with integrated KVM and remote media capabilities.

Q: Is this server suitable for virtualization and cloud deployments?
A: Absolutely. With dual high-core-count AMD EPYC processors, 8TB memory capacity, PCIe 4.0 NVMe storage, and quad 10GbE networking, the AS-1124US-TNRP excels at virtualization, private cloud, and software-defined infrastructure. It is certified for VMware ESXi, Citrix Hypervisor, Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Oracle Linux, and Ubuntu Server.
