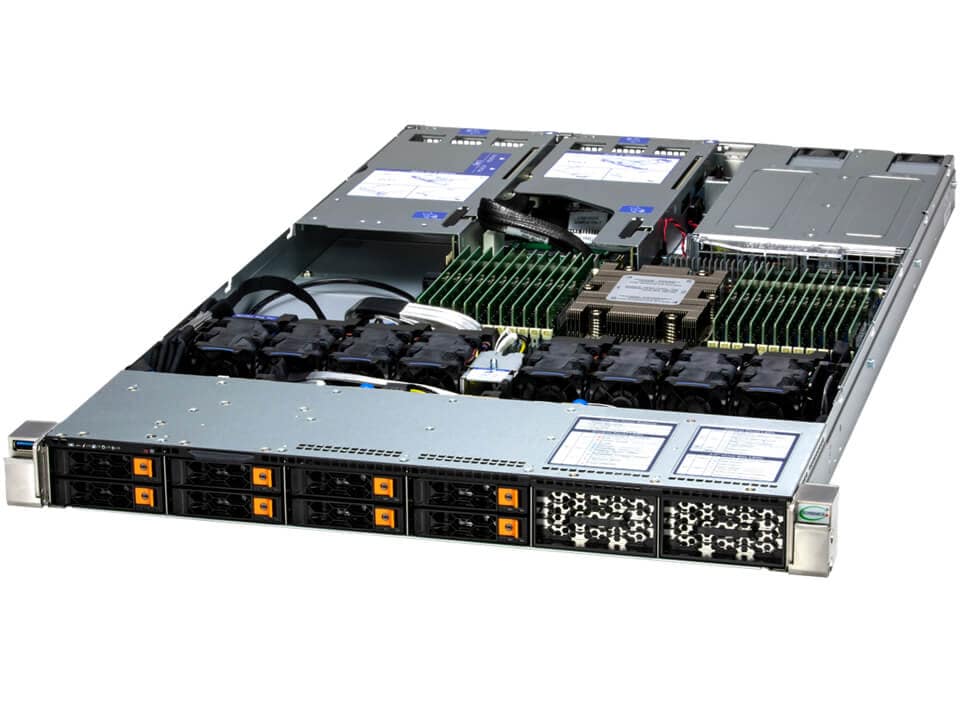

• Silver supermicro as-1115hs-tnr 1u server rack with black and orange drive bays green ram and multiple cooling fans inside
1 1

Supermicro

Supermicro AS-1115HS-TNR | Hyper 1U Server, AMD EPYC 9005/9004, 24x DDR5, 8x 2.5" NVMe/SAS/SATA, PCIe 5.0

AS-1115HS-TNR

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Supermicro AS-1115HS-TNR is a high-density 1U rackmount server built for enterprise virtualization, AI inference, cloud computing, and software-defined storage. Supporting a single AMD EPYC 9004/9005 series processor with up to 192 cores, 24 DDR5 DIMM slots for up to 6TB of memory, and 8 hot-swap 2.5-inch NVMe/SAS/SATA drive bays, this platform delivers exceptional compute and memory capacity in a compact form factor. With PCIe 5.0 expansion slots, AIOM OCP 3.0 networking, and dual redundant 1200W Titanium-level power supplies, the AS-1115HS-TNR is engineered for demanding data center workloads.

Features

High-core-density computing with single AMD EPYC 9004/9005 series processors up to 192 cores/320 threads
- Massive memory capacity: up to 6TB DDR5 RDIMM across 24 slots for memory-intensive workloads
- PCIe 5.0 support with 128 lanes of high-speed I/O for accelerators, storage, and networking
- CXL 1.1+ support for memory expansion and disaggregation
- Flexible hot-swap hybrid storage: NVMe, SAS, and SATA support in the same backplane
- Expandable from 8 to 12 hot-swap 2.5" drive bays with optional parts
- Dual M.2 NVMe slots (PCIe 3.0 x4 and x2) for boot drives or additional storage
- GPU acceleration support: up to 1x double-width or 2x single-width PCIe 5.0 GPUs
- AIOM (Advanced I/O Module) slot with OCP NIC 3.0 compatibility for flexible networking
- Tool-less design for simplified serviceability and reduced maintenance time
- Hot-swappable fans and redundant power supplies for high availability
- Dual 1200W Titanium-level (94%+ efficiency) redundant power supplies
- IPMI 2.0 out-of-band management with dedicated BMC and KVM-over-LAN
- Advanced thermal management with air shroud and optimized airflow for high-TDP CPUs
- Enterprise-grade management tools: SuperDoctor 5, SSM, and SuperServer Automation Assistant

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 1U rackmount server, 17.2" W x 1.7" H x 29.4" D (437 x 43 x 747mm)
- Processor: Single socket SP5 (LGA-6096) for AMD EPYC 9004/9005 series, up to 192 cores/320 threads, supports up to 400W TDP (9005 series requires board revision 2.x)
- Memory: 24x DDR5 RDIMM slots, up to 6TB capacity, DDR5-5600 support (speeds vary: DDR5-4800 at 1DPC, DDR5-4000 at 2DPC)
- Storage: 8x hot-swap 2.5" NVMe/SAS/SATA drive bays (expandable to 12 with optional parts), 2x M.2 PCIe 3.0 NVMe slots (2280/22110)
- Expansion: 2x PCIe 5.0 x16 full-height full-length (10.5"L) slots, 1x PCIe 5.0 x16 full-height half-length (6.6"L) slot, 1x AIOM slot (OCP NIC 3.0 compatible)
- GPU Support: Up to 1x double-width or 2x single-width GPUs (NVIDIA H100, L40S, L4, RTX 4000 Ada)
- Network: 1x AIOM OCP 3.0 slot for flexible networking, 1x RJ45 dedicated IPMI 2.0 management port
- Power: Dual 1200W redundant Titanium-level (94%+) power supplies (800W option available)
- Management: IPMI 2.0 with KVM-over-LAN, virtual media, ASPEED AST2600 BMC, SuperDoctor 5, SuperServer Automation Assistant
- I/O: 3x USB 3.0 (1 front, 2 rear), 1x VGA, front control panel with UID/power/NIC LEDs
- Cooling: 8x 40mm hot-swappable fans with air shroud for CPU and DIMM cooling
- Operating Temperature: 10°C to 35°C (50°F to 95°F)
- Weight: Approximately 14.5 lbs (6.6 kg)

FAQs

Q: What is the maximum memory capacity and configuration?
A: The AS-1115HS-TNR supports up to 6TB of DDR5 memory across 24 DIMM slots using RDIMM modules. Memory speeds depend on configuration: DDR5-4800 at 1 DIMM per channel (1DPC) for up to 3TB, or DDR5-4000/3600 at 2 DIMMs per channel (2DPC) for up to 6TB capacity.

Q: Can I expand the storage beyond 8 drive bays?
A: Yes, the system supports up to 12 hot-swap 2.5-inch NVMe/SAS/SATA drive bays with optional parts and cables. The base configuration includes 8 front-accessible hot-swap bays. Additional storage controllers or cables may be required depending on your drive configuration (NVMe vs. SAS vs. SATA).

Q: Does this server support the latest AMD EPYC 9005 series processors?
A: Yes, the AS-1115HS-TNR supports both AMD EPYC 9004 and 9005 series processors. However, 9005 series drop-in support requires motherboard revision 2.x. The server supports processors up to 400W TDP, though CPUs with high TDP (over 280-290W) may only be supported under specific thermal conditions.

Q: What PCIe 5.0 expansion options are available?
A: The server provides three PCIe 5.0 x16 slots: two full-height full-length (10.5" long), one full-height half-length (6.6" long), plus one AIOM slot compatible with OCP NIC 3.0 for networking. The system can accommodate up to one double-width GPU or two single-width GPUs, supporting models like NVIDIA H100, L40S, and L4.

Q: What management and remote access capabilities does this server offer?
A: The AS-1115HS-TNR features IPMI 2.0 with an ASPEED AST2600 BMC providing KVM-over-LAN, virtual media mounting, and dedicated out-of-band management via a dedicated RJ45 port. Management software includes Supermicro SuperDoctor 5 for monitoring, Supermicro Server Manager (SSM), and SuperServer Automation Assistant (SAA) for datacenter-scale automation.
