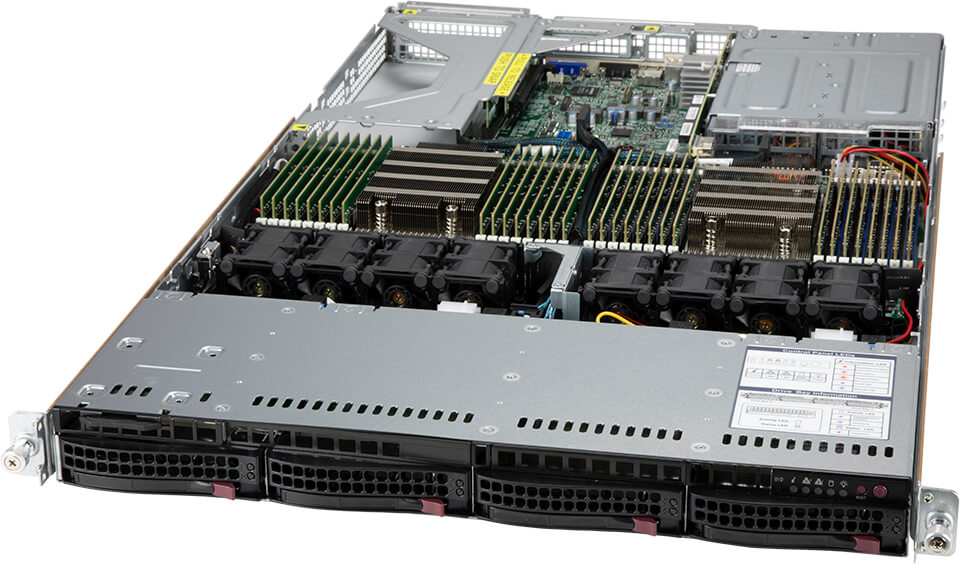

• Silver and black Supermicro AS-1024US-TRT server rack with green RAM modules cooling fans and visible motherboard
1 1

Supermicro

Supermicro AS-1024US-TRT | Ultra 1U Dual AMD EPYC 7002/7003 Server, 8TB DDR4

AS-1024US-TRT

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The Supermicro AS-1024US-TRT is a high-performance 1U rackmount server designed for virtualization, cloud computing, and enterprise workloads. Supporting dual AMD EPYC 7003/7002 series processors with up to 8TB DDR4-3200MHz memory across 32 DIMM slots, this Ultra platform delivers exceptional compute density. Equipped with 4 hot-swap 3.5-inch hybrid drive bays supporting SATA, SAS3, or NVMe, dual 10GbE networking, PCIe 4.0 expansion, and redundant 1000W Titanium power supplies, the AS-1024US-TRT offers the flexibility and reliability required for mission-critical data center deployments.

Features

Dual AMD EPYC 7003/7002 series processor support with up to 64 cores per socket
- 32 DIMM slots supporting DDR4-3200MHz Registered ECC memory up to 8TB capacity
- PCIe 4.0 architecture with four x16 expansion slots for high-bandwidth peripherals
- Flexible storage with 4x hot-swap 3.5" bays supporting SATA3, SAS3, or NVMe configurations
- Dual Intel X710 10GBase-T Ethernet controllers for high-speed networking
- IPMI 2.0 with dedicated management port, KVM over IP, and virtual media support
- AMD Secure Processor with full memory encryption capabilities
- 80 PLUS Titanium redundant power supplies (1000W each) for maximum efficiency and uptime
- Tool-less rail system for easy rack installation and serviceability
- Front panel status LEDs for power, HDD activity, dual NIC status, and UID
- Heavy-duty PWM cooling fans with intelligent thermal management
- Support for optional 2.5" SATA boot drives on front panel
- SuperDoctor 5 system health monitoring and alerting
- Compatible with major hypervisors and enterprise Linux distributions

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 1U Rackmount (17.2" x 1.7" x 29")
- Processor: Dual Socket SP3 for AMD EPYC 7003/7002 series (Milan/Rome)
- Memory: Up to 8TB DDR4-3200MHz Registered ECC across 32 DIMM slots
- Storage: 4x hot-swap 3.5" bays (SATA3 default, optional NVMe or SAS3 with adapter kit)
- Expansion: 2x PCIe 4.0 x16 Full-Height (9.5" length), 1x PCIe 4.0 x16 Low-Profile, 1x PCIe 4.0 x16 internal proprietary
- Networking: Dual 10GBase-T (Intel X710), dedicated IPMI 2.0 RJ45 management port
- GPU Support: Up to 1 double-width or 1 single-width GPU
- Power: Redundant 1000W 80 PLUS Titanium (96%+) hot-swap PSUs
- Management: IPMI 2.0 with KVM, virtual media, SuperDoctor 5, Supermicro Thin-Agent Service
- Operating System Support: VMware ESXi, Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux, Ubuntu Server, Oracle Linux

FAQs

Q: What processors are compatible with the AS-1024US-TRT?
A: The AS-1024US-TRT supports dual AMD EPYC 7003 series (Milan) and 7002 series (Rome) processors in Socket SP3. AMD EPYC 7003 series processors with AMD 3D V-Cache technology require BIOS version 2.3 or newer. The system is optimized for high-TDP processors and requires at least 2 CPUs for operation.

Q: Can I mix SATA, SAS, and NVMe drives in this server?
A: The 4 front hot-swap 3.5-inch bays support SATA3 drives by default. To use SAS3 drives, you need an optional SAS3 RAID controller or HBA. For NVMe support, optional NVMe drive trays and cabling are required. The backplane does not support mixing different drive types simultaneously within the same bay configuration.

Q: What is the recommended memory configuration for optimal performance?
A: For best performance, Supermicro recommends populating at least 1 DIMM per channel per CPU, which equals 16 DIMMs total (8 channels per EPYC processor). The system supports up to 32 DIMMs of DDR4-3200MHz Registered ECC memory for a maximum capacity of 8TB. Minimum configuration requires 4 DIMMs for operation.

Q: Does this server support PCIe 4.0 expansion cards?
A: Yes, the AS-1024US-TRT features four PCIe 4.0 x16 slots: two full-height slots (9.5-inch length), one low-profile slot, and one internal proprietary low-profile slot. This provides extensive expansion options for high-speed NICs, storage controllers, accelerators, and single or double-width GPUs while maintaining PCIe Gen 4 bandwidth.

Q: What remote management capabilities does this server offer?
A: The server includes IPMI 2.0 with dedicated RJ45 LAN port providing out-of-band management with KVM over IP, remote virtual media mounting, and remote power control. Supermicro management software includes SuperDoctor 5 for health monitoring, Supermicro Thin-Agent Service, and compatibility with standard IPMI tools for data center integration.
