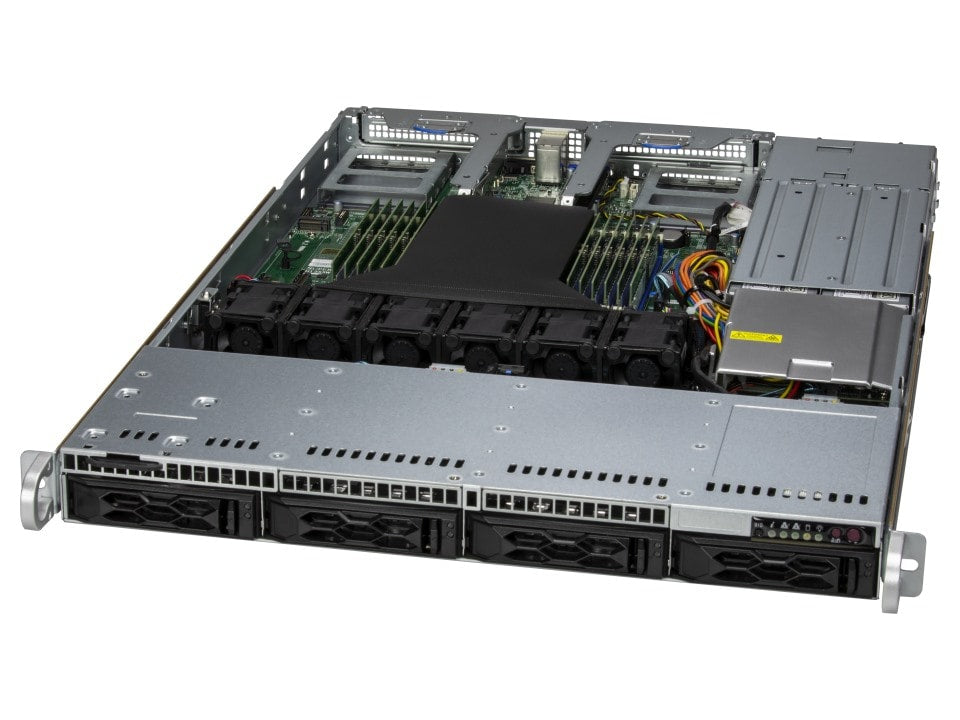

• Silver supermicro as-1015cs-tnr 1u rackmount server with black drive bays and amd epyc 9004 clouddc components visible
1 1

Supermicro

Supermicro AS-1015CS-TNR | H13 CloudDC 1U Rackmount Server, AMD EPYC 9004/9005

AS-1015CS-TNR

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The Supermicro AS-1015CS-TNR is a single-socket 1U CloudDC rackmount server designed for cloud computing, web hosting, edge nodes, and value IaaS deployments. Powered by AMD EPYC 9004/9005 series processors with support for up to 128 cores, it features 12 DDR5 DIMM slots supporting up to 3TB memory at 6400MT/s, 4 hot-swap 3.5-inch hybrid NVMe/SAS/SATA drive bays, dual AIOM OCP 3.0 networking slots, 2 PCIe 5.0 x16 expansion slots, and dual redundant 860W Platinum power supplies. Compact, scalable, and optimized for high-density data center environments.

Features

AMD EPYC 9004/9005 series single-socket SP5 platform with up to 128 cores and 256 threads
- 12-channel DDR5 memory architecture supporting up to 3TB at speeds up to 6400MT/s
- PCIe 5.0 expansion with 2x PCIe 5.0 x16 FHHL slots and 2x AIOM OCP 3.0 slots for double the I/O bandwidth
- Hybrid storage architecture: 4 hot-swap 3.5"/2.5" bays (SATA native, NVMe/SAS optional) plus 2 M.2 boot slots
- CXL 1.1+ support for memory pooling and accelerator connectivity
- Tool-less chassis design with hot-swap drive trays and redundant power supplies for rapid deployment
- IPMI 2.0 with KVM-over-LAN, virtual media, and Redfish API for comprehensive remote management
- Built on OCP Data Center Modular Hardware System (DC-MHS) and M-SDNO form factor standards
- Advanced security: TPM 2.0, Silicon Root of Trust, secure boot, NIST 800-193 compliance
- Dual redundant 860W 80 PLUS Platinum power supplies with full redundancy based on configuration
- Optimized thermal design with up to 6 PWM-controlled fans for 10°C–35°C operation
- Compatible with AMD 3D V-Cache technology for enhanced performance in memory-intensive workloads
- VMware ESXi, Citrix Hypervisor, Red Hat, SUSE, and Oracle Linux certified

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 1U rackmount (1.7" H x 17.2" W x 25.6" D)
- Processor: Single socket SP5 for AMD EPYC 9004/9005 series (up to 128 cores, 400W TDP)
- Memory: 12 DDR5 DIMM slots, up to 3TB ECC RDIMM, speeds up to 6400MT/s (1DPC)
- Storage: 4x hot-swap 3.5"/2.5" hybrid NVMe/SAS/SATA drive bays (NVMe/SAS require additional controllers), 2x M.2 PCIe 3.0 x2 NVMe boot slots (2280/22110)
- Expansion: 2x PCIe 5.0 x16 FHHL slots, 2x AIOM OCP 3.0 networking slots (PCIe 5.0 x16)
- Management: IPMI 2.0 with dedicated RJ45 LAN, KVM-over-LAN, Redfish API, SuperDoctor 5
- Power Supply: Dual redundant 860W 80 PLUS Platinum level hot-swap PSUs
- Cooling: Up to 6 heavy-duty 4cm PWM fans with optimal speed control
- Security: TPM 2.0 header, Silicon Root of Trust, secure boot, NIST 800-193 compliant
- Operating Temperature: 10°C to 35°C
- Weight: 25 lbs (net)
- Certifications: VMware ESXi, Citrix Hypervisor, Red Hat Enterprise Linux, SUSE Linux, Oracle Linux compatible

FAQs

Q: What processors are compatible with the AS-1015CS-TNR?
A: The AS-1015CS-TNR supports single-socket AMD EPYC 9004 and 9005 series processors with up to 128 cores and 256 threads. AMD EPYC 9005 series support requires motherboard revision 2.x. The system supports processors up to 400W TDP air-cooled, with higher TDP processors supported under specific cooling conditions.

Q: How much memory can this server support?
A: The server features 12 DDR5 DIMM slots supporting up to 3TB of ECC registered DDR5 memory. Memory speeds up to 6400MT/s are supported with 1DPC (one DIMM per channel) configuration. For maximum capacity, use 256GB 3DS ECC RDIMM modules at DDR5-4800MHz speeds.

Q: What storage options are available?
A: The AS-1015CS-TNR includes 4 hot-swap 3.5"/2.5" drive bays that support SATA drives natively. NVMe and SAS drive support requires additional controller cards and cables. The system also has 2 internal M.2 PCIe 3.0 x2 slots (2280/22110) dedicated for boot drives only. Installing NVMe drives in the front bays disables 3.5" drive functionality.

Q: What networking options does this system support?
A: The server features dual AIOM (OCP 3.0 compliant) networking slots with PCIe 5.0 x16 interfaces, providing flexible high-speed networking options. A dedicated IPMI RJ45 LAN port enables out-of-band management. The dual AIOM design allows for redundant networking or multi-function configurations tailored to cloud and data center deployments.

Q: What are the typical use cases for this server?
A: The AS-1015CS-TNR is optimized for cloud computing, web hosting, value IaaS platforms, CDN edge nodes, DNS and gateway servers, virtualization, and compact data center deployments. Its single-socket design, high memory capacity, PCIe 5.0 expansion, and flexible storage make it ideal for workloads requiring high core counts and memory bandwidth without dual-processor overhead.
