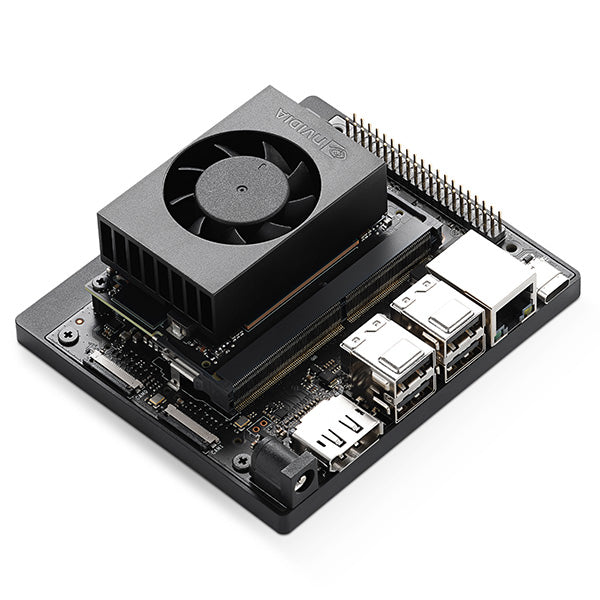

• NVIDIA 945-13766-0007-000 dev board with black Raspberry Pi, cooling fan, and ports
1 1

NVIDIA

NVIDIA 945-13766-0007-000 | Jetson Orin Nano Super Dev Kit, 8GB, 67 TOPS

945-13766-0007-000

Stock Status: Enquire

$721.05 inc. GST
$655.50 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Jetson Orin Nano Super Developer Kit pairs a Jetson Orin Nano 8GB module with a reference carrier board, giving developers, students and makers a compact platform for edge-AI prototyping. It suits generative AI, computer vision and robotics projects, including vision transformers, LLMs and vision-language models.

The module delivers up to 67 INT8 TOPS from an NVIDIA Ampere GPU with 1024 CUDA cores and 32 Tensor cores, alongside a 6-core Arm Cortex-A78AE CPU. It carries 8GB of 128-bit LPDDR5 with 102 GB/s of memory bandwidth and runs within a 7W to 25W power range. Connectivity includes four USB 3.2 Gen2 Type-A ports, a USB Type-C port, Gigabit Ethernet, DisplayPort and two MIPI CSI-2 camera connectors. This is a regional part number for the IN and TW markets, built around the Jetson Orin Nano 8GB module.

The reference carrier board accepts all Jetson Orin Nano and Orin NX modules and adds M.2 Key M slots for NVMe storage, an M.2 Key E slot for wireless and a 40-pin expansion header. Software is delivered through NVIDIA JetPack and Jetson Linux with no subscription required, and the Super performance mode needs the latest JetPack update.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Up to 67 INT8 TOPS of AI performance, a 1.7x improvement over the previous Orin Nano developer kit's 40 TOPS
- Memory bandwidth raised from 68 to 102 GB/s through the Super software update
- Runs generative AI models such as vision transformers, LLMs and vision-language models
- Reference carrier board accepts all Orin Nano and Orin NX modules, which suits product prototyping
- Expansion through M.2 Key M for NVMe, M.2 Key E for wireless, a 40-pin header and two MIPI CSI-2 camera connectors
- Supported by the NVIDIA Jetson AI software stack, including Isaac, Metropolis and JetPack

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- AI performance: 67 INT8 TOPS
- GPU: NVIDIA Ampere architecture, 1024 CUDA cores, 32 Tensor cores
- CPU: 6-core Arm Cortex-A78AE v8.2 64-bit, 1.5MB L2 + 4MB L3
- CPU frequency: 1.7 GHz (Super mode)
- Memory: 8GB 128-bit LPDDR5
- Memory bandwidth: 102 GB/s
- Storage: SD card slot and external NVMe
- Video encode: 1080p30 supported by 1-2 CPU cores
- Video decode: 1x 4K60 (H.265), 2x 4K30 (H.265), 5x 1080p60 (H.265), 11x 1080p30 (H.265)
- Power: 7W to 25W
- Camera: 2x MIPI CSI-2 22-pin connectors
- PCIe: M.2 Key M (x4 PCIe Gen3), M.2 Key M (x2 PCIe Gen3), M.2 Key E
- USB: 4x USB 3.2 Gen2 Type-A, 1x USB Type-C (UFP)
- Networking: Gigabit Ethernet
- Display: DisplayPort
- I/O: 40-pin expansion header
- Operating system: Linux (NVIDIA JetPack / Jetson Linux)
- Module: Jetson Orin Nano 8GB with reference carrier board

FAQs

Q: Does it need a software licence or subscription?
A: No. Software is provided through the NVIDIA JetPack SDK and Jetson Linux, with no subscription required.

Q: What power range does the module run in?
A: The module operates in a 7W to 25W range in Super mode. Power draw depends on the workload and the selected power mode.

Q: Which modules does the carrier board support?
A: The reference carrier board is compatible with all Jetson Orin Nano and Orin NX modules, so you can prototype across different module options.

Q: How can I add storage and wireless?
A: Use the M.2 Key M slots for NVMe storage and the M.2 Key E slot for wireless modules. There is also an SD card slot for additional storage.

Q: Do I need to update software to get the Super performance?
A: Yes. The Super performance mode, with up to 67 INT8 TOPS and 102 GB/s memory bandwidth, requires the latest JetPack software update.
