Cisco

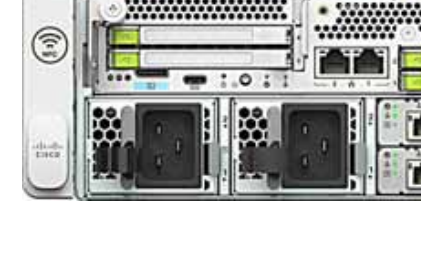

Cisco UCSXE-PSU-2400W | UCS XE9305 2400W Titanium AC Power Supply

UCSXE-PSU-2400W

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 2400W Titanium-rated AC power supply is built for the Cisco UCS XE9305 chassis in the Cisco Unified Edge range. It suits distributed edge sites such as retail, branch and remote locations running virtualised, containerised or AI workloads on compute, storage, networking and security nodes.

Each PSU delivers up to 2400W at 200-240 VAC, derating to 1300W at 100-127 VAC, with a 12V output and a maximum input of 2700 VA at 230 VAC. Input frequency is 47 to 63 Hz and the inlet is an IEC60320 C20 connector. The chassis has two power supply bays and is configured with two PSUs for N+N grid redundancy. The units are hot-swappable and removable from the front with a latching mechanism, with no special tools required.

This is the AC variant. DC feeds use the separate UCSXE-PSU-2400WDC. The power supply itself needs no licence, and the chassis is managed through Cisco Intersight. Power requirements can be sized with the Cisco UCS Power Calculator.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Titanium-efficiency 2400W hot-swappable power supply
- N+N (grid) redundancy when two PSUs are fitted
- Front-removable via latching mechanism, no special tools required
- Supports both high-line (200-240V) and low-line (100-127V) AC input
- 12V output for the UCS XE9305 chassis
- Can be sized with the Cisco UCS Power Calculator
- DC sibling available as UCSXE-PSU-2400WDC for DC feeds

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product ID: UCSXE-PSU-2400W
- Description: 2400 Watt Power Supply for UCS-XE9305 Chassis
- Type: AC
- Efficiency rating: Titanium
- Maximum output per PSU: 2400W at 200-240 VAC nominal
- Maximum output per PSU at low line: 1300W at 100-127 VAC nominal
- Input voltage: 100 to 127 VAC and 200 to 240 VAC
- Maximum input: 2700 VA at 230 VAC
- Input frequency: 47 to 63 Hz
- Output voltage: 12V
- Power connector: IEC60320 C20
- Power redundancy: Grid (N+N)
- Power supply bays per chassis: Two
- Approved configuration: two power supplies per chassis
- Chassis operating temperature: 0 to 40 C (32 to 104 F)
- Chassis operating humidity: 5% to 90% non-condensing
- Chassis operating altitude: 0 to 3000 m (0 to 10,000 ft)

FAQs

Q: Does this power supply need a licence?
A: No. The power supply itself needs no licence. The chassis is managed through Cisco Intersight, and Intersight Server licences apply only to the compute nodes.

Q: What output does it deliver on a standard Australian supply?
A: At 200-240 VAC it delivers up to 2400W. At 100-127 VAC it is derated to 1300W. Maximum input is 2700 VA at 230 VAC.

Q: How many power supplies does the chassis use?
A: The UCS XE9305 has two power supply bays and the approved configuration is two PSUs per chassis, providing N+N grid redundancy.

Q: Which power cords work with this PSU?
A: The inlet is an IEC60320 C20 connector. Cisco cord options include CAB-AC-16A-AUS (16A, 250 VAC, Australia), CAB-AC-2500W-INT and CAB-C19-CBN.

Q: How does this differ from UCSXE-PSU-2400WDC?
A: This is the AC model with a 100-127 / 200-240 VAC input. UCSXE-PSU-2400WDC is the separate DC model for -48 to -72 VDC feeds.
