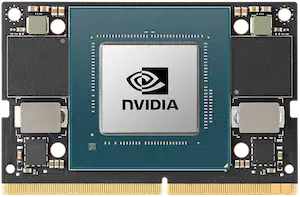

• Nvidia Jetson Orin NX 16GB AI module with teal circuit board and silver metallic components for AI processing
1 1

NVIDIA

NVIDIA 900-13767-0000-0A1 | Jetson Orin NX 16GB AI Module, 157 TOPS, USA Made

900-13767-0000-0A1

Stock Status: Enquire

$2,112.55 inc. GST
$1,920.50 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Jetson Orin NX 16GB is a compact edge AI system-on-module from the Jetson Orin NX series, smaller than a credit card. It is built for robotics, autonomous machines, multi-camera vision systems and generative AI inference at the edge. This SKU is the USA-origin variant of the 16GB module.

It pairs a 1024-core NVIDIA Ampere GPU with 32 Tensor Cores and an 8-core Arm Cortex-A78AE CPU, backed by 16GB of 128-bit LPDDR5 delivering 102.4 GB/s of memory bandwidth. AI performance is rated at up to 157 TOPS, supported by two NVDLA v2 deep learning accelerators and a PVA v2 vision accelerator. Power modes are selectable at 10W, 15W, 25W and 40W, so it can be matched to the thermal and power limits of the host design.

The module uses a 260-pin SO-DIMM connector and mounts on compatible Jetson Orin NX and Orin Nano carrier boards. It supports external NVMe storage and runs the NVIDIA JetPack and Jetson Linux software stack. A carrier board is required to use the module.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Up to 157 TOPS of AI performance in a credit-card-sized module
- Ampere GPU with 1024 CUDA cores and 32 Tensor Cores
- Dual NVDLA v2 deep learning accelerators plus a PVA v2 vision accelerator
- Supports generative AI and transformer-based models at the edge
- Multiple camera inputs via MIPI CSI-2
- Scalable power modes from 10W to 40W
- Runs the NVIDIA JetPack and Jetson Linux software stack

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- AI performance: up to 157 TOPS
- GPU: 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
- GPU max frequency: 1173 MHz
- CPU: 8-core Arm Cortex-A78AE v8.2 64-bit, 2MB L2 + 4MB L3 cache
- CPU max frequency: 2 GHz
- DL accelerator: 2x NVDLA v2, up to 1.4 GHz
- Vision accelerator: 1x PVA v2
- Memory: 16GB 128-bit LPDDR5, 102.4 GB/s
- Storage: supports external NVMe (no onboard eMMC)
- Video encode: 1x 4K60 (H.265), 3x 4K30 (H.265), 6x 1080p60 (H.265), 12x 1080p30 (H.265)
- Video decode: 1x 8K30 (H.265), 2x 4K60 (H.265), 4x 4K30 (H.265), 9x 1080p60 (H.265), 18x 1080p30 (H.265)
- CSI camera: up to 4 cameras (8 via virtual channels), 8 lanes MIPI CSI-2 D-PHY 2.1, up to 20Gbps
- PCIe: 1 x4 + 3 x1, PCIe Gen4, Root Port and Endpoint
- USB: 3x USB 3.2 Gen2 (10 Gbps), 3x USB 2.0
- Networking: 1x GbE
- Display: 1x 8K30 multi-mode DP 1.4a (+MST) / eDP 1.4a / HDMI 2.1
- Other I/O: 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC and DSPK, PWM, GPIOs
- Power modes: 10W, 15W, 25W, 40W
- Form factor: 69.6mm x 45mm, 260-pin SO-DIMM connector
- Origin: USA

FAQs

Q: Does this module need a carrier board?
A: Yes. It is a system-on-module with a 260-pin SO-DIMM connector and mounts on a compatible Jetson Orin NX or Orin Nano carrier board.

Q: What power modes does it support?
A: The module supports configurable power modes of 10W, 15W, 25W and 40W, so you can trade performance against the power and thermal budget of your design.

Q: Does it have onboard storage?
A: No. It has no onboard eMMC and relies on external NVMe storage supplied through the carrier board.

Q: What software does it run?
A: It runs the NVIDIA JetPack SDK and Jetson Linux software stack, which supports AI and computer vision development.

Q: How does this SKU differ from other Orin NX 16GB modules?
A: This SKU is the USA-origin variant of the Orin NX 16GB. The core specifications are the same as the standard 16GB module, with the difference being the country of origin.
