NVIDIA

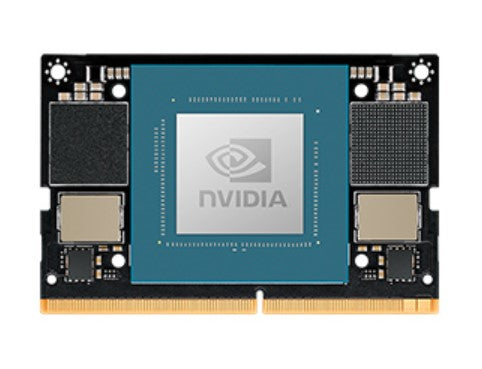

NVIDIA 900-13767-0030-000 | Jetson Orin Nano 8GB AI Module, 40 TOPS, 6-Core Arm

900-13767-0030-000

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Jetson Orin Nano 8GB is a compact system-on-module from NVIDIA's Jetson Orin family, built for edge AI, robotics, drones, intelligent video analytics, smart cameras and embedded vision products.

It pairs an NVIDIA Ampere architecture GPU with 1024 CUDA cores and 32 Tensor Cores with a 6-core Arm Cortex-A78AE v8.2 64-bit CPU. The 8GB of 128-bit LPDDR5 memory delivers 68 GB/s of bandwidth, and the module provides up to 40 TOPS of sparse INT8 AI performance. Power is configurable from 7W to 15W, with a 25W mode available on newer JetPack releases. This 8GB, 40 TOPS variant needs no subscription, as it is supported by the free NVIDIA JetPack SDK.

The module uses a 260-pin SO-DIMM connector in a 69.6 x 45 mm form factor, which is mechanically compatible with Jetson Orin NX modules. It works with Jetson Orin Nano and Orin NX carrier boards and the JetPack 5.x and 6.x SDK, and a carrier board is required to supply power and I/O.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Up to 40 TOPS of AI performance for generative AI, vision and robotics workloads at the edge
- NVIDIA Ampere GPU with Tensor Cores
- Software-compatible with the Jetson Orin NX and AGX Orin families via the JetPack SDK
- Supports the NVIDIA AI software stack, including CUDA, TensorRT, cuDNN, Isaac and Metropolis
- 260-pin SO-DIMM form factor, pin-compatible with Orin NX modules
- Configurable power modes for balancing performance and energy use

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- AI performance: up to 40 TOPS (sparse INT8)
- GPU: NVIDIA Ampere architecture, 1024 CUDA cores, 32 Tensor Cores
- CPU: 6-core Arm Cortex-A78AE v8.2 64-bit
- Memory: 8GB 128-bit LPDDR5, 68 GB/s
- Module power: 7W to 15W configurable (25W mode on newer JetPack releases)
- Form factor: 69.6 x 45 mm, 260-pin SO-DIMM connector

FAQs

Q: Does the Jetson Orin Nano 8GB module need a software licence or subscription?
A: No subscription is required. The module is supported by the free NVIDIA JetPack SDK, although some NVIDIA AI Enterprise software may be licensed separately.

Q: How is the module powered?
A: It offers configurable power modes from 7W to 15W, with a 25W mode available on newer JetPack releases. It needs a carrier board to supply power and I/O, such as the Jetson Orin Nano Developer Kit carrier.

Q: Which carrier boards and software does it work with?
A: It uses a 260-pin SO-DIMM connector and works with Jetson Orin Nano and Orin NX carrier boards. It is supported by the JetPack 5.x and 6.x SDK, and third-party carriers are also available.

Q: Is it mechanically compatible with Jetson Orin NX modules?
A: Yes. The 260-pin SO-DIMM form factor is mechanically compatible with Jetson Orin NX modules.

Q: What are the key specifications of this 8GB variant?
A: It delivers up to 40 TOPS of sparse INT8 performance from an Ampere GPU with 1024 CUDA cores and 32 Tensor Cores, a 6-core Arm Cortex-A78AE CPU and 8GB of 128-bit LPDDR5 memory.
