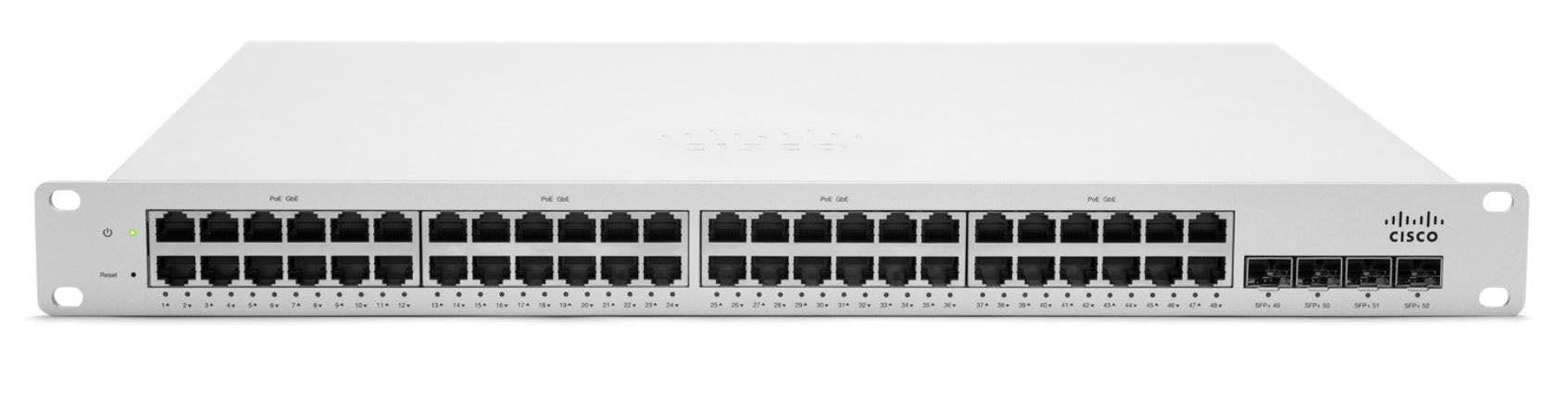

• Meraki MS320-48FP-HW silver switch with black ports and white label
1 1

Meraki

Meraki MS320-48FP-HW | MS320 48-Port PoE+ Switch, 740W, 4x 10G SFP+

MS320-48FP-HW

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MS320-48FP-HW is a cloud-managed Layer 3 access switch with 48 Gigabit PoE+ ports, a 740W PoE budget and four 10GbE SFP+ uplinks. It suits branch and campus deployments that need centralised management through the Meraki Dashboard, with virtual stacking and an optional second hot-swappable power supply for redundancy. This is the hardware-only unit and requires a separate Meraki Enterprise licence for operation.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cloud management through the Meraki Dashboard
- Virtual stacking for unified management of many switch ports
- Layer 7 application visibility, network topology and QoS
- 802.1X access control, MAC-based RADIUS authentication, BPDU guard and root guard
- Optional redundant hot-swappable power supply
- Link aggregation (LACP), STP/RSTP, IGMP snooping, DHCP snooping, ACLs
- Rack mount and desktop mount hardware included

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 48 x 10/100/1000BASE-T RJ45 ports with PoE/PoE+ (802.3af/802.3at)
- 4 x 10GbE SFP+ uplink ports (non-shared)
- 740W PoE budget
- Switching capacity: 176 Gbps
- Stacking bandwidth: 80 Gbps (virtual stacking supported)
- MAC address table: 32K entries
- Jumbo frames: 9600 bytes
- Layer 3: static routing, OSPFv2, DHCP server/relay, warm spare
- Default PSU: 1 x MS-PWR-1025WAC (1025W AC), with a second PSU slot for redundancy
- Power input: 100-240 VAC, 47-63 Hz
- Operating temperature: 0-40°C (32-104°F)
- Form factor: 1U rack-mountable, approx. 19.08 x 17.32 x 1.75 in, 9.7 lb (4.4 kg)
- Requires a separate Meraki Enterprise licence (LIC-MS320-48FP-xYR)

FAQs

Q: What is the PoE budget of the MS320-48FP-HW?
A: It provides a 740W PoE budget across its 48 Gigabit ports, supporting 802.3af and 802.3at (PoE+) devices.

Q: Does this switch include a licence?
A: No. The MS320-48FP-HW is the hardware-only unit. A separate Meraki Enterprise licence (LIC-MS320-48FP-xYR) is required for the switch to operate and be managed through the Meraki Dashboard.

Q: What uplink options are available?
A: It has four non-shared 10GbE SFP+ uplink ports, suitable for fibre or direct attach connections to a core or aggregation layer.

Q: Can I add power redundancy?
A: Yes. The switch ships with one MS-PWR-1025WAC (1025W AC) power supply and has a second PSU slot for an optional hot-swappable redundant supply.

Q: Does it support Layer 3 routing?
A: Yes. It supports static routing, OSPFv2, and DHCP server and relay, along with warm spare capability.
