• Meraki MS150-48FP-4X cloud-managed PoE+ switch with 48x 1G ports
1 1

Meraki

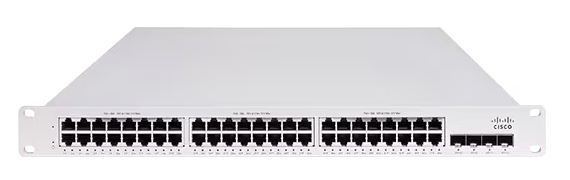

Meraki MS150-48FP-4X | Meraki MS150 48-Port Gigabit PoE+ Switch, 740W, 4x 10G SFP+

MS150-48FP-4X

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Meraki MS150-48FP-4X is a cloud-managed Layer 2 stackable access switch designed for branch and campus deployments. With 48 Gigabit Ethernet ports delivering PoE+ and a 740W power budget, it efficiently powers high-density wireless access points, IP cameras, and VoIP devices. Four 10G SFP+ uplinks and 80Gbps stacking capability enable scalable, high-performance network architectures with zero-touch provisioning through the Meraki cloud dashboard.

Features

Layer 2 Ethernet switching with static routing support
- PoE+ (802.3at) delivering up to 30W per port with dynamic power allocation
- 740W total PoE budget for powering access points, cameras, and phones
- Cloud-managed through Meraki Dashboard with 99.9% cloud SLA
- Zero-touch provisioning and automatic firmware updates
- 80 Gbps physical and virtual stacking (up to 8 switches)
- Non-blocking 176 Gbps switching fabric
- 802.1X authentication for network access control
- VLAN tagging, VLAN routing, and dynamic VLAN assignment
- Spanning Tree Protocol (STP) for network redundancy
- Broadcast storm control and Dynamic ARP Inspection
- DHCP snooping for enhanced security
- Remote troubleshooting and packet capture tools
- Network-wide visibility and real-time monitoring
- Seamless integration with Meraki wireless, security, and SD-WAN solutions

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

48x 10/100/1000 Mbps RJ45 ports with PoE+ (802.3at) support
- Total PoE budget: 740W with up to 30W per port
- 4x 10 Gigabit Ethernet SFP+ uplink ports
- Switching capacity: 176 Gbps non-blocking
- Layer 2 switching with static routing capabilities
- 2x dedicated 80 Gbps stacking ports (stack up to 8 switches)
- Cloud-managed via Meraki Dashboard with zero-touch provisioning
- VLAN support: 802.1q tagging, dynamic VLAN assignment
- Security features: 802.1X authentication, Dynamic ARP Inspection, DHCP snooping
- Management: SNMP, Syslog, remote packet capture
- Operating temperature: 0°C to 45°C
- 1U rack-mountable form factor

FAQs

Q: Does the MS150-48FP-4X require a license to operate?
A: Yes, all Meraki switches require either an Enterprise or Advanced cloud license to operate and pass traffic. Licenses are sold separately on a per-device, per-year basis and enable cloud management, automatic firmware updates, and technical support through the Meraki Dashboard.

Q: Can I stack multiple MS150-48FP-4X switches together?
A: Yes, the MS150-48FP-4X includes two dedicated 80 Gbps stacking ports that allow you to stack up to eight MS150 switches, providing simplified management and increased capacity for growing network deployments.

Q: What is the difference between MS150 Enterprise and Advanced licenses?
A: The MS150 series offers two license tiers: Enterprise and Advanced. Advanced licenses provide additional features such as Adaptive Policy capabilities. All MS150 switches in an organization must use the same license tier in co-term licensing models.

Q: Can this switch power Wi-Fi 6 or Wi-Fi 7 access points?
A: Yes, with 740W total PoE+ budget and up to 30W per port, the MS150-48FP-4X is designed to support high-density Wi-Fi 6, Wi-Fi 6E, and Wi-Fi 7 access point deployments, along with IP cameras and IoT devices.

Q: Is the MS150-48FP-4X suitable for enterprise campus environments?
A: Absolutely. The MS150-48FP-4X provides Layer 2 access switching with static routing, robust PoE+ delivery, high-speed 10G uplinks, and stackability, making it ideal for medium to large enterprise branch offices and campus access layer deployments.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
