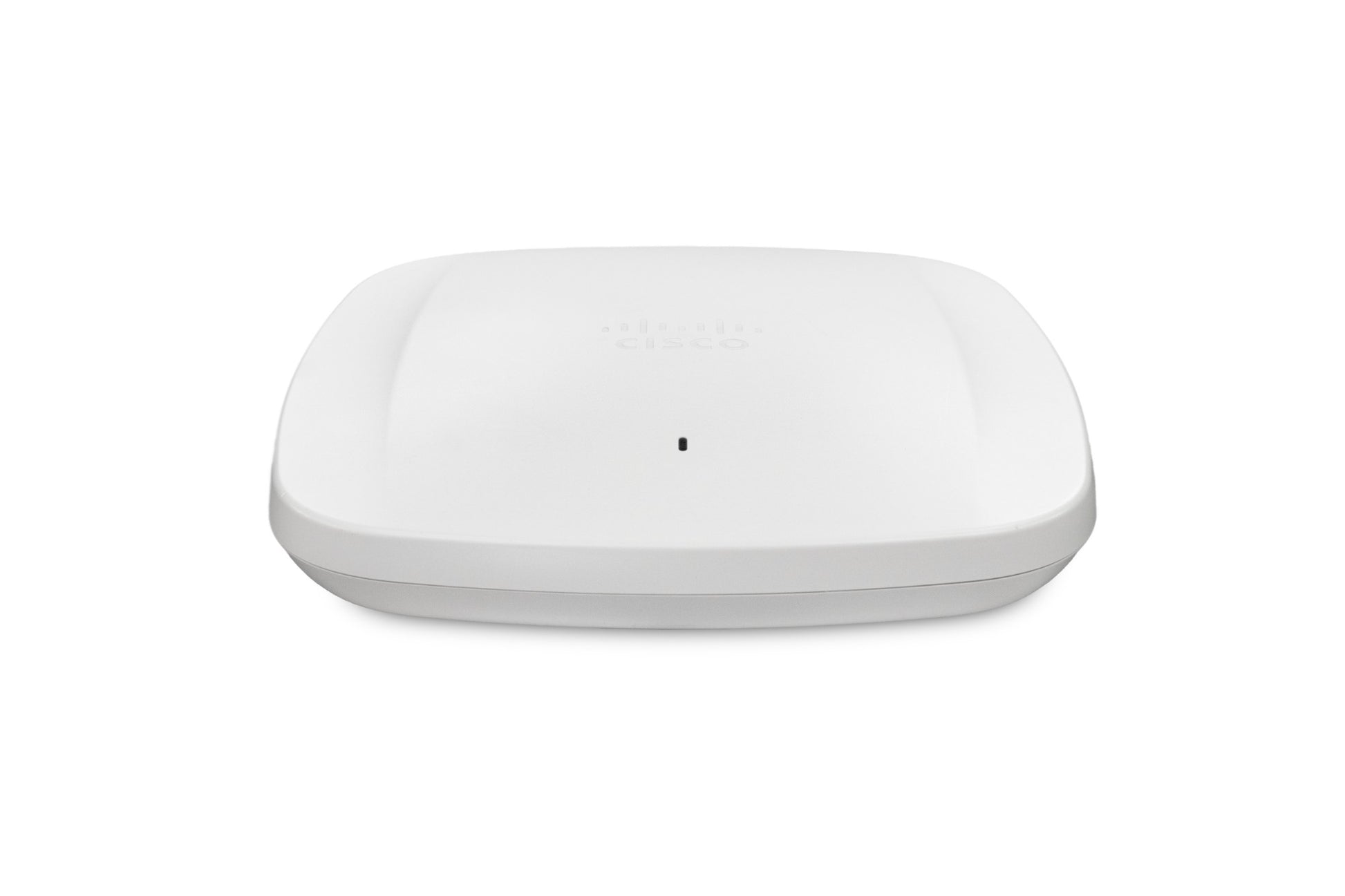

Meraki MR57-HW | MR57 Wi-Fi 6E Tri-Band Access Point, 7.78 Gbps

SKU:MR57-HW

Stock Status: Enquire

Request Quote

Sale Sold out

Shipping calculated at checkout.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MR57 is a cloud-managed Wi-Fi 6E indoor access point designed for high-density enterprise environments including offices, schools, hospitals, and retail. With 4x4:4 MU-MIMO across tri-band radios delivering up to 7.78 Gbps aggregate throughput, plus a dedicated security radio for real-time WIDS/WIPS and integrated Bluetooth Low Energy radio for IoT, the MR57 supports demanding applications and future-proof wireless connectivity. Dual 5 Gigabit Ethernet ports provide high availability and link aggregation, while 802.3bt PoE++ simplifies deployment.

Features

Wi-Fi 6E (802.11ax) with support for 2.4 GHz, 5 GHz, and 6 GHz bands
- Tri-band 4x4:4 MU-MIMO with up to 7.78 Gbps aggregate throughput
- Software-defined flex radio toggles between 5 GHz and 6 GHz operation
- Dedicated fourth scanning radio for real-time WIDS/WIPS (Air Marshal) and automated RF optimization
- Fifth integrated Bluetooth Low Energy radio for IoT, asset tracking, and location analytics
- Dual 5 Gigabit multigigabit Ethernet ports for link aggregation or high availability
- OFDMA and MU-MIMO in both uplink and downlink for efficient multi-client performance
- Transmit beamforming for extended range and enhanced receive sensitivity
- Cloud-managed via Meraki Dashboard with zero-touch provisioning and self-configuration
- Layer 7 application visibility, traffic shaping, and QoS policies per network, SSID, user group, or individual client
- WPA3, 192-bit encryption, AES hardware acceleration, and 802.1X authentication
- Integration with Meraki Systems Manager for device-based policy enforcement
- Advanced analytics including machine learning-based anomaly detection and location tracking
- Automatic firmware updates and remote troubleshooting via Meraki cloud
- Support for high-density deployments and bandwidth-intensive applications like HD video and VoIP

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Wi-Fi Standard: 802.11ax (Wi-Fi 6E)
- Radio Configuration: Tri-band 4x4:4 MU-MIMO (2.4 GHz, 5 GHz, 6 GHz)
- Aggregate Data Rate: Up to 7.78 Gbps (4,804 Mbps @ 6 GHz, 2,402 Mbps @ 5 GHz, 574 Mbps @ 2.4 GHz)
- Advanced Features: OFDMA, DL/UL MU-MIMO, BSS Coloring, beamforming
- Dedicated Security Radio: Fourth radio for real-time WIDS/WIPS and automated RF optimization
- Bluetooth/IoT Radio: Fifth integrated BLE radio for asset tracking and beaconing
- Ethernet Ports: Dual 5 Gbps multigigabit Ethernet (IEEE 802.3bz)
- Power: 802.3at (PoE+) and 802.3bt (PoE++) compliant, 40W max consumption
- USB Port: USB 2.0 for additional connectivity options
- Management: Cloud-managed via Meraki Dashboard with automatic firmware updates
- Security: WPA3, 192-bit encryption, AES hardware-based encryption, 802.1X, Active Directory integration
- QoS: Layer 7 traffic shaping, WMM, 802.1p, DSCP
- Mounting Options: Ceiling, wall, or desktop (mounting hardware included)
- Certifications: FCC, CE, IC compliant

FAQs

Q: Does the MR57 require a license to operate?
A: Yes, all Meraki access points require a Meraki cloud license on a per-device, per-year basis. The MR57-HW is sold as unclaimed hardware and requires separate purchase of a Meraki Enterprise license to activate and manage the device.

Q: What is the difference between Wi-Fi 6 and Wi-Fi 6E?
A: Wi-Fi 6E extends Wi-Fi 6 (802.11ax) into the new 6 GHz spectrum band, providing additional channels that increase throughput and reduce interference. The 6 GHz band is exclusive to Wi-Fi 6E devices, eliminating competition from legacy devices and enabling full bandwidth utilization for compatible clients.

Q: Can the MR57 operate in dual 5 GHz mode instead of tri-band?
A: Yes, the MR57 features a software-defined flex radio that can be toggled between 5 GHz and 6 GHz operation via the Meraki Dashboard. This allows deployment in either dual 5 GHz configuration or true tri-band mode depending on client device compatibility and spectrum requirements.

Q: What are the benefits of dual Ethernet ports on the MR57?
A: The dual 5 Gigabit Ethernet ports support link aggregation for higher throughput, high availability for automatic failover, and power sharing where both ports can supply PoE to the access point. This provides deployment flexibility and enhanced reliability for mission-critical networks.

Q: What power options are supported for the MR57?
A: The MR57 supports 802.3at PoE+ and 802.3bt PoE++ with a maximum power consumption of 40W. Minimum power requirement is 30W via PoE+ with USB disabled. Alternative power options include a 54V DC adapter (MA-PWR-50WAC) or PoE injector (MA-INJ-6), sold separately.
