Cisco

Cisco CW9172H-CFG | Wireless 9172 Wi-Fi 7 Tri-Band Wall-Plate Access Point

CW9172H-CFG

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco CW9172H is a cloud-managed Wi-Fi 7 wall-plate access point engineered for next-generation wireless deployments in offices, hotels, schools, healthcare facilities, and distributed enterprise locations. Featuring tri-band tri-radio 2x2:2 operation across 2.4 GHz, 5 GHz, and 6 GHz bands, it delivers up to 9 Gbps aggregate throughput, with a dedicated fourth radio for WIDS/WIPS and RF optimization, plus an integrated Bluetooth Low Energy radio for IoT applications. Designed for moderate-density environments, the CW9172H combines high performance with a compact wall-mount form factor and multiple wired access ports, offering seamless cloud or on-premises management flexibility.

Features

Wi-Fi 7 (802.11be) tri-band operation: concurrent 2.4 GHz, 5 GHz, and 6 GHz radios with 2x2:2 MIMO
- Up to 9 Gbps aggregate frame rate for high-throughput applications
- Dedicated fourth radio for 24/7 wireless intrusion detection/prevention (WIDS/WIPS) and Air Marshal security
- Integrated Bluetooth Low Energy (BLE) radio for location analytics and IoT device visibility
- Multi-Link Operation (MLO) and MU-MIMO/OFDMA for efficient multi-client transmission
- Layer 7 application visibility and traffic shaping with integrated DPI engine

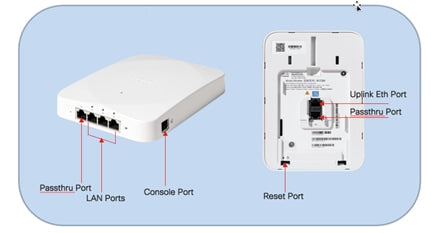

- Three switched LAN ports with PoE-out capability on Port 1 for pass-through devices
- Cloud-based zero-touch provisioning: auto-configures on connection to Meraki cloud
- Automatic firmware updates and remote diagnostics via Meraki dashboard
- Advanced QoS: WMM, 802.1p, DSCP, U-APSD for VoIP and video optimization
- Enterprise-grade security: WPA3, 192-bit encryption, AES hardware acceleration, 802.1X authentication
- RF optimization: automated channel selection, transmit power tuning, and client connection management
- Machine learning-based anomaly detection and wireless client performance scoring
- Location analytics API for real-time client density and movement tracking
- Wall-plate form factor with integrated wired access ports for in-room connectivity
- Physical security options: Kensington lock support, port lock accessory, security screws

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

Wi-Fi Standard: 802.11be (Wi-Fi 7), backward compatible with 802.11a/b/g/n/ac/ax
- Radio Configuration: Tri-band tri-radio 2x2:2 (2.4 GHz, 5 GHz, 6 GHz), 6 spatial streams
- Aggregate Throughput: Up to 9 Gbps (5764 Mbps @ 6 GHz, 2882 Mbps @ 5 GHz, 344 Mbps @ 2.4 GHz)
- Dedicated Security Radio: Fourth radio for real-time WIDS/WIPS, automated RF optimization
- IoT Radio: Integrated Bluetooth Low Energy (BLE) radio for scanning and beaconing
- Antennas: Six integrated internal omnidirectional antennas
- Uplink Port: 1x RJ-45 2.5G BASE-T Ethernet (100/1000/2500 Mbps), PoE-powered
- LAN Ports: 3x RJ-45 switched Ethernet ports; Port 1 supports 802.3af PoE output
- Power Requirements: 802.3bt (Class 5, up to 45W) for full operation; operates with degraded performance on 802.3at/af
- Maximum Power Consumption: 32W typical
- Management: Meraki cloud dashboard or Cisco Catalyst 9800 WLC (on-premises/hybrid)
- Security Features: WPA3, 192-bit encryption, AES hardware acceleration, 802.1X, Active Directory integration, PCI compliance reporting
- Layer 7 Traffic Shaping: Integrated packet inspection, QoS with WMM, 802.1p, DSCP support
- Operating Temperature: 0°C to 40°C
- Humidity: 0% to 95% non-condensing
- Mounting: Wall-plate mount, single-gang junction box compatible, optional desktop mount (CW-ACC-DESK1-00)

FAQs

Q: What management options are available for the CW9172H?
A: The CW9172H supports flexible deployment: cloud management via the Meraki dashboard, on-premises management with Cisco Catalyst 9800 Wireless LAN Controllers, or hybrid configurations. The access point automatically discovers its management mode on first boot, eliminating the need for preconfiguration.

Q: Does the CW9172H support PoE output for downstream devices?
A: Yes. When powered by 802.3bt (Class 5, 45W), Port 1 can supply 802.3af PoE output (up to 15.4W) to downstream devices such as IP phones or cameras. With 802.3at (30W) input, the port can deliver up to 7W (Class 2) on firmware MR 32.1.6 or later.

Q: Is the CW9172H compatible with legacy Wi-Fi clients?
A: Yes. The CW9172H is fully backward compatible with 802.11a/b/g/n/ac/ax devices, ensuring seamless connectivity for existing wireless infrastructure alongside next-generation Wi-Fi 7 clients.

Q: What is the purpose of the dedicated fourth radio?
A: The fourth radio operates as a dedicated tri-band scanning radio, providing continuous real-time WIDS/WIPS, RF interference characterization, rogue access point containment (2.4/5 GHz), and automated RF optimization without impacting client throughput or data performance.

Q: Can the CW9172H be used in hospitality or guest environments?
A: Yes. The CW9172H is designed for hospitality deployments, with features including one-click guest isolation for secure Internet-only access, captive portal support, multiple SSID capability, and integration with Meraki Systems Manager for device posture-based access control.
