Cisco

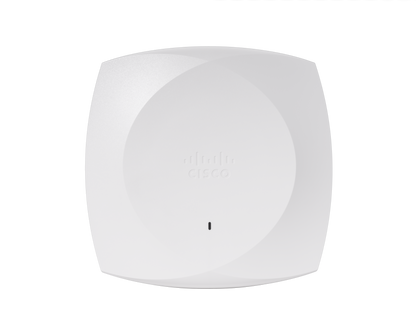

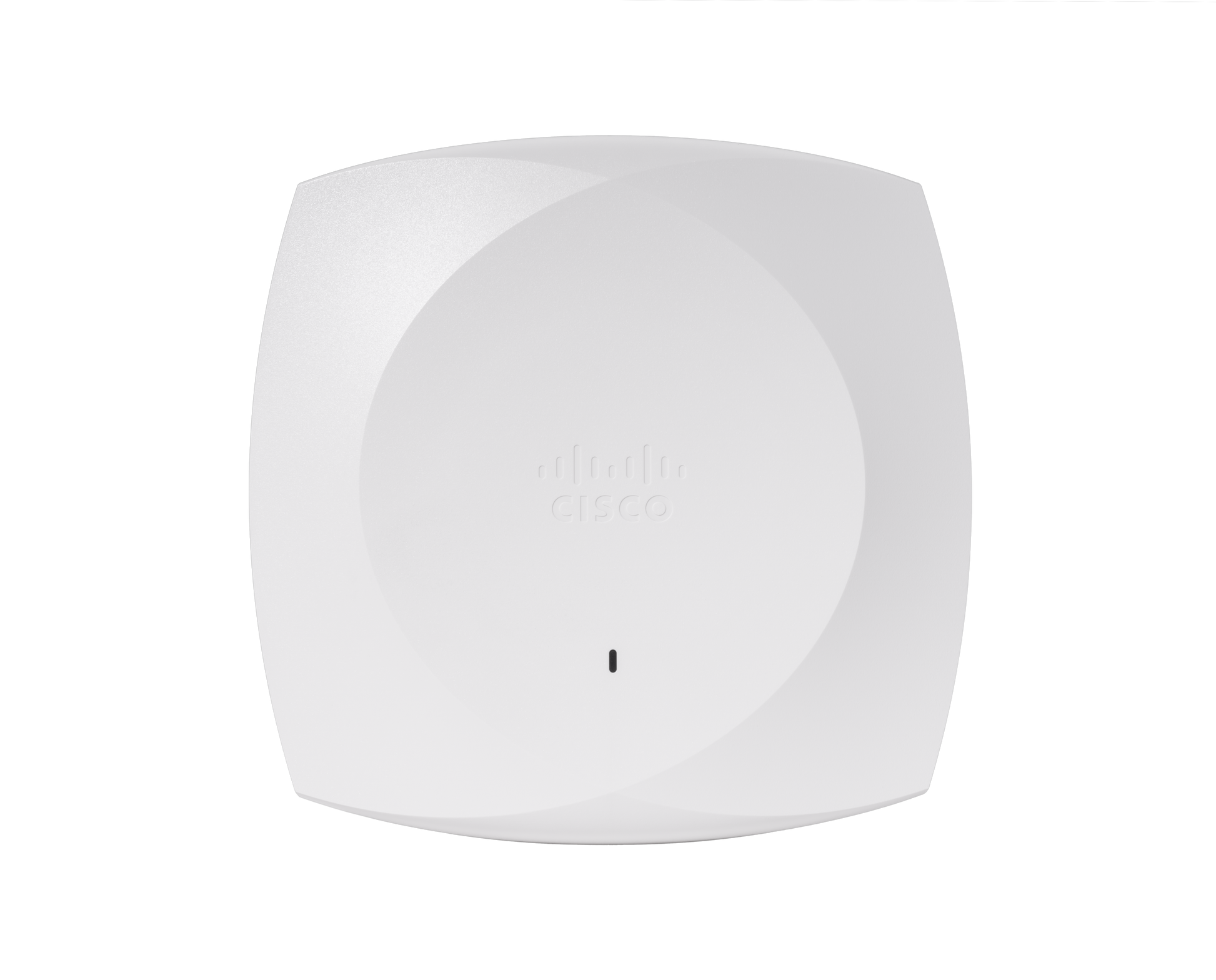

Cisco CW9172I-CFG | CW9172 Wi-Fi 7 Tri-Band Access Point, 9 Gbps, 2x2:2

CW9172I-CFG

4 in stock

$2,181.62 AUD
$2,181.62 AUD
$2,181.62 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco CW9172I is a cloud-managed Wi-Fi 7 indoor access point delivering up to 9 Gbps aggregate throughput across concurrent 2.4 GHz, 5 GHz, and 6 GHz tri-band radios. Featuring a flexible 2x2:2 architecture that can switch to dual-band 4x4:4 mode, it includes a dedicated fourth radio for real-time WIDS/WIPS with automated RF optimization, and a fifth integrated Bluetooth/IoT radio. Designed for offices, retail, healthcare, and hospitality environments requiring high-performance connectivity, enterprise-grade security, and simplified cloud management.

Features

802.11be Wi-Fi 7 compatible with tri-band concurrent operation (2.4/5/6 GHz)
- Software-configurable flex radio: tri-band 2x2:2 or dual-band 2x2:2 + 4x4:4
- Up to 9 Gbps aggregate throughput with 160 MHz channel support
- Multi-Link Operation (MLO) for simultaneous multi-band transmission
- Uplink and downlink MU-MIMO and OFDMA for high-density environments
- Dedicated fourth radio for 24/7 WIDS/WIPS and Air Marshal rogue AP containment
- Automated RF optimization with continuous cloud-fed channel and power tuning
- Integrated Bluetooth 5.3 and IoT radio for BLE beaconing and asset tracking
- 2.5 Gbps multigigabit Ethernet uplink for full Wi-Fi 7 throughput
- Layer 7 DPI firewall with application-based traffic shaping and QoS
- WPA3-Enterprise and WPA3-Personal with 802.1X authentication
- 802.1p and DSCP QoS for voice and video prioritization (WMM)
- Integrated omnidirectional antennas with transmit beamforming
- Cloud-managed via Meraki Dashboard with zero-touch provisioning
- Automatic firmware updates and network-wide policy deployment
- Machine learning-based anomaly detection and client health scoring
- Advanced location analytics and client density tracking via API
- Guest access with captive portal and splash page customization
- Active Directory and RADIUS integration for enterprise authentication
- Compatible with Cisco Catalyst 9800 WLC and Meraki cloud management

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

Wi-Fi Standard: 802.11be (Wi-Fi 7), backward compatible with 802.11a/b/g/n/ac/ax
- Radio Configuration: Tri-band 2x2:2 (2.4 GHz, 5 GHz, 6 GHz) or dual-band 2x2:2 (2.4 GHz) + 4x4:4 (5 GHz)
- Aggregate Data Rate: Up to 9 Gbps (5764 Mbps @ 6 GHz, 2882 Mbps @ 5 GHz, 344 Mbps @ 2.4 GHz)
- Dedicated Security Radio: Fourth radio for real-time WIDS/WIPS and automated RF optimization
- IoT Radio: Fifth integrated Bluetooth 5.3 / BLE radio for beaconing and scanning

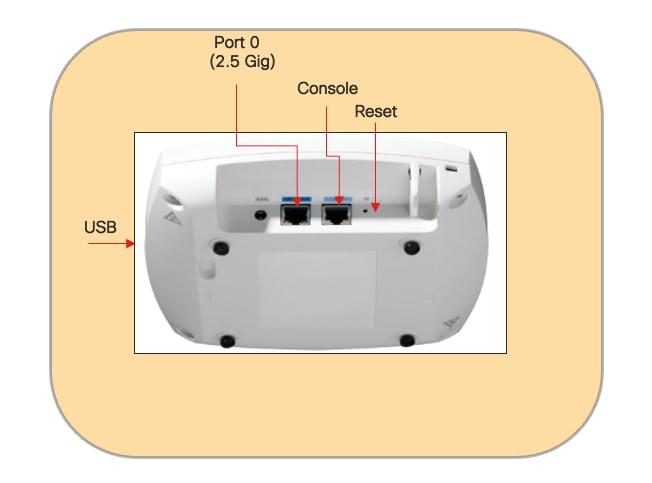

- Ethernet Port: 1x 2.5 Gbps multigigabit RJ45 (100/1000/2500BASE-T)
- Power Options: 802.3af, 802.3at (30W recommended), 802.3bt (up to 32W for full operation)
- USB Port: 1x USB 2.0 (4.5W capability for IoT extensions)
- Dimensions: 7.8 x 7.8 x 2.1 inches (20 x 20 x 5.3 cm)
- Weight: 1.9 lb (874 g)
- Management: Cloud-managed via Meraki Dashboard or on-premises via Cisco Catalyst 9800 Wireless LAN Controller
- Advanced Features: MU-MIMO, OFDMA, Multi-Link Operation (MLO), transmit beamforming
- Security: WPA3-Enterprise, WPA3-Personal, 802.1X, AES hardware-based encryption, integrated layer 7 firewall
- Mounting: Compatible with AIR-AP-BRACKET-1, AIR-AP-T-RAIL-R (included), AIR-AP-BRACKET-2

FAQs

Q: What is the flex radio feature on the CW9172I?
A: The CW9172I features a software-defined flex radio that can operate in either tri-band mode (2.4/5/6 GHz at 2x2:2 each) or dual-band mode (2.4 GHz at 2x2:2 and 5 GHz at 4x4:4). This allows you to switch to high-performance dual-band operation in regions where 6 GHz is not yet approved or when you need stronger 5 GHz performance for higher client density.

Q: Can this access point be managed with both Meraki and Catalyst controllers?
A: Yes, the CW9172I is a unified platform that supports both cloud management via Meraki Dashboard and on-premises management via Cisco Catalyst 9800 Wireless LAN Controllers. Organizations can deploy in cloud, on-premises, or hybrid configurations without replacing hardware, providing architectural flexibility and investment protection.

Q: What PoE standard is required for full functionality?
A: The CW9172I requires 802.3at (PoE+) delivering up to 30W for full operation of all radios and features. It can operate with 802.3af power, but with reduced functionality (only 2.4 GHz radio at 1x1). For maximum performance including USB power and the 4x4 flex radio mode, 802.3bt Class 5 delivering up to 32W is recommended.

Q: Does the CW9172I include IoT and Bluetooth capabilities?
A: Yes, the CW9172I includes a dedicated fifth radio supporting Bluetooth 5.3 / BLE for seamless deployment of beaconing, device scanning, and location-aware applications. It also supports 802.15.4 for IoT use cases, enabling asset tracking, environmental monitoring, and smart building applications without impacting wireless client performance.

Q: Is a Meraki subscription license required to use this access point?
A: Yes, when deploying the CW9172I in Meraki management mode, an active Meraki MR subscription license is required for cloud management, firmware updates, and access to the Meraki Dashboard. When deployed in Catalyst mode with a 9800 controller, standard Cisco licensing applies instead.
