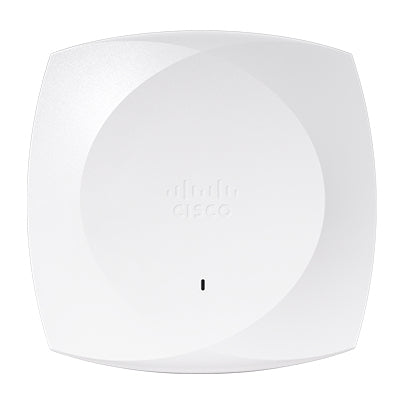

• White square-shaped cisco cw9176d1-cfg wi-fi 7 tri-band access point with directional antenna and 18 gbps speed
1 1

Cisco

Cisco CW9176D1-CFG | CW9176 Wi-Fi 7 Tri-Band Access Point, Directional Antenna, 18 Gbps, 1x 5GbE + 1x 1GbE

CW9176D1-CFG

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco CW9176D1-CFG is an enterprise-grade Wi-Fi 7 access point designed for high-density environments such as warehouses, auditoriums, and large open spaces. Featuring an integrated directional antenna for optimized coverage patterns, this tri-band access point delivers up to 18 Gbps throughput across 2.4 GHz, 5 GHz, and 6 GHz bands with three 4x4:4 radios. The global-use design supports flexible deployment with both Cisco cloud management and Catalyst 9800 WLC on-premises control, enabling seamless migration between management platforms without hardware replacement.

Features

Wi-Fi 7 (802.11be) with 320 MHz channels in 6 GHz band for up to 18 Gbps aggregate throughput
- Tri-band simultaneous operation: 2.4 GHz, 5 GHz, and 6 GHz with three 4x4:4 MU-MIMO radios
- Internal directional antenna optimized for warehouses, auditoriums, and high-ceiling deployments
- Multi-gigabit Ethernet uplinks: 1x 5 Gbps mGig + 1x 1 Gbps (10 Gbps capable with Cat 6A cabling)
- Flexible radio architecture: XOR radio configurable as 2.4 GHz or dual 5 GHz for band optimization
- Dedicated scanning radio for tri-band Air Marshal WIDS/WIPS, spectrum analysis, and location analytics
- Integrated Bluetooth Low Energy (BLE) radio for asset tracking, wayfinding, and IoT applications
- Ultra-wideband (UWB) IoT radio for precision location services and sensor connectivity
- Built-in GPS/GNSS module for geolocation and outdoor asset tracking use cases
- USB port for external IoT devices and sensor integration
- Unified management: Seamless migration between Meraki cloud and Catalyst 9800 WLC without hardware swap
- Global-use SKU: Single part number deploys worldwide, auto-configures regulatory domain
- Advanced security: WPA3-R3, WPA3 Suite-B 192-bit, Enhanced Open (OWE), 802.1X with dynamic VLAN
- Uplink/downlink OFDMA and MU-MIMO for high-density environments with hundreds of concurrent clients
- Target Wake Time (TWT) for IoT battery life optimization and BSS coloring for interference mitigation
- Preamble puncturing and multi-link operation (MLO) for resilient, high-throughput connectivity
- Maximal Ratio Combining (MRC) and beamforming for extended range and reliability
- 4096-QAM modulation for maximum spectral efficiency and throughput in clean RF environments
- Meraki Dashboard: Zero-touch provisioning, AI-driven insights, automated RF optimization, and real-time alerts
- Cisco Catalyst Center and DNA integration: Network assurance, policy automation, and client analytics
- Plenum-rated (UL 2043) for above-ceiling installations in commercial buildings
- Supports mesh networking as gateway or repeater for outdoor and remote connectivity

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

Wi-Fi Standard: 802.11be (Wi-Fi 7), backward compatible with 802.11ax/ac/a/n/g/b
- Radio Configuration: Tri-band, tri-radio - 2.4 GHz (4x4:4), 5 GHz (4x4:4), 6 GHz (4x4:4)
- Maximum Data Rate: 18 Gbps aggregate throughput
- Antenna Type: Internal directional antenna optimized for high-ceiling environments
- Ethernet Ports: 1x 5 Gbps mGig (RJ-45) + 1x 1 Gbps (RJ-45), up to 10 Gbps capable
- Power Input: 802.3bt (Class 6, 39W max), 802.3at (25.5W), or 802.3af (config-only, radios disabled)
- Additional Radios: Dedicated scanning radio for WIDS/WIPS, BLE for IoT/location, 2.4 GHz IoT radio
- Channel Width: 20/40 MHz (2.4 GHz), 20/40/80/160 MHz (5 GHz), 20/40/80/160/320 MHz (6 GHz)
- Management: Meraki cloud dashboard or Catalyst 9800 WLC with Cisco DNA Essentials/Advantage licenses
- Dimensions: 241 x 241 x 51 mm (9.5 x 9.5 x 2.0 in)
- Weight: 1.56 kg (3.4 lbs)
- Environmental: Operating 0-50°C, 10-90% RH non-condensing, plenum-rated (UL 2043)
- Security: WPA3-Personal/Enterprise, WPA3-R3, Enhanced Open, 802.1X, AES-256 encryption
- Certifications: Wi-Fi 7 certified, FCC Part 15C/15E, EN 300 328, EN 301 893, CISPR 32 Class B

FAQs

Q: What makes the CW9176D1 different from the CW9176I?
A: The CW9176D1 features an integrated directional antenna designed for high-ceiling environments like warehouses, auditoriums, and large open spaces, whereas the CW9176I uses omnidirectional antennas suitable for standard enterprise deployments. The directional pattern provides focused coverage and eliminates the need for external antennas in challenging installations.

Q: Can I switch between Meraki cloud management and Catalyst 9800 WLC?
A: Yes, the CW9176D1 supports flexible management mode migration. The access point can be switched between Meraki cloud dashboard and on-premises Catalyst 9800 WLC control without hardware replacement or reconfiguration, protecting your infrastructure investment as network requirements evolve.

Q: What PoE standard is required for full functionality?
A: For full operation with all three 4x4 radios, IoT radios, and 10 Gbps uplink capability, 802.3bt PoE (Class 6, up to 60W) is required. With 802.3at PoE+, the 2.4 GHz radio operates at 2x2 mode with 2.5 Gbps uplink. 802.3af PoE only supports configuration staging with all radios disabled.

Q: Does this access point support Wi-Fi 6E clients?
A: Yes, the CW9176D1 is backward compatible with Wi-Fi 6E (802.11ax in 6 GHz), Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), and all legacy standards. The 6 GHz radio operates in both 802.11ax and 802.11be modes, ensuring support for current and next-generation client devices.

Q: What licensing is required for Meraki cloud management?
A: Meraki cloud deployment requires either MR Enterprise or MR Advanced licensing (per-device subscription). The CW9176D1 can also be deployed with Cisco DNA Essentials or DNA Advantage licenses when managed by Catalyst 9800 WLC on-premises. Licenses are sold separately and available in 1, 3, 5, 7, and 10-year terms.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
