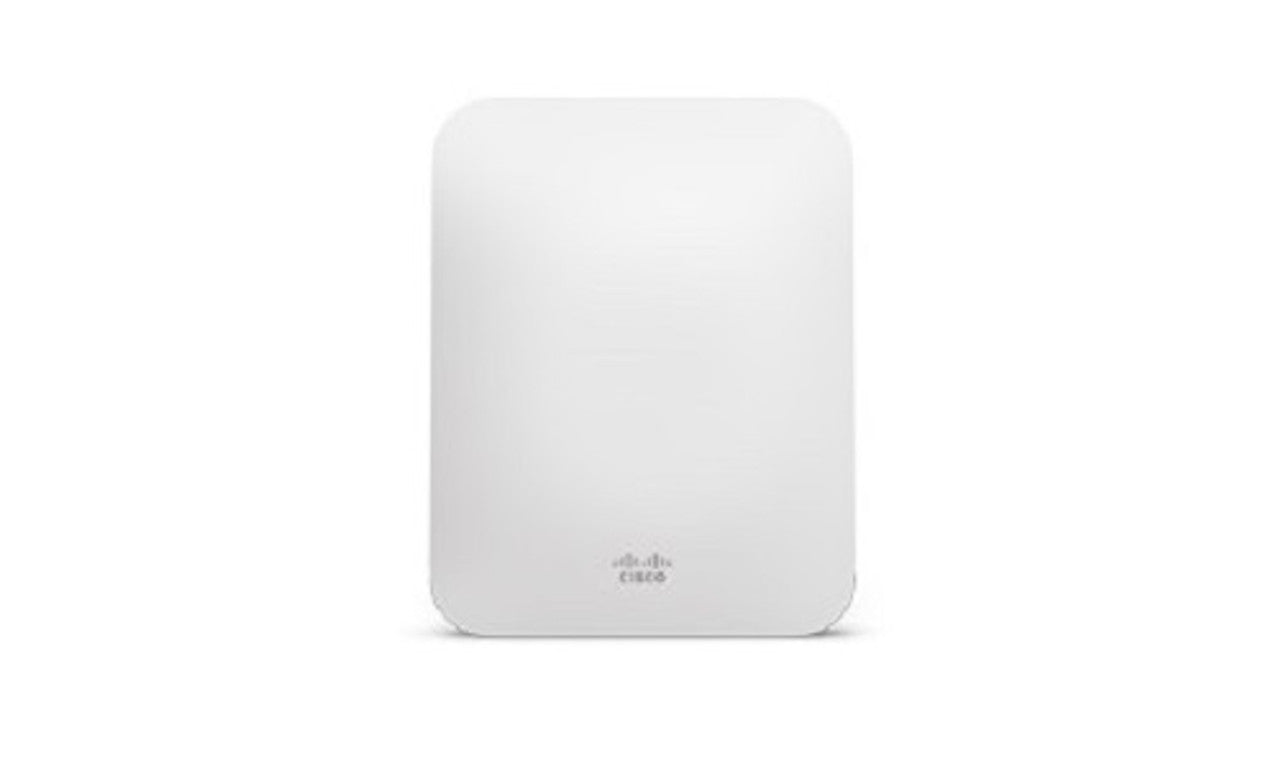

Meraki MR18-HW | MR18 Wi-Fi 4 Dual-Band Access Point, 600Mbps, PoE
SKU:MR18-HW
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Meraki MR18 is a cloud-managed indoor access point from the Meraki MR Series, built for offices, schools, hospitals, hotels and large retail sites. It suits voice and video applications, PCI-compliant retail and remote sites without on-site IT, and its mesh capability helps in hard-to-wire areas.
It runs dual-concurrent 2x2:2 MIMO 802.11n radios on 2.4 GHz and 5 GHz for a combined data rate of up to 600 Mbps. A third dedicated radio performs 24x7 WIPS/WIDS scanning and RF spectrum analysis, so security and RF monitoring never take capacity from client traffic. A single Gigabit RJ45 port carries data and 802.3af PoE, with a maximum draw of 9.8 W, and a 12V DC input is also provided. Integrated omni-directional antennas give 3 dBi at 2.4 GHz and 5 dBi at 5 GHz.
The MR18-HW is the hardware only SKU. A Meraki Enterprise cloud licence is required to operate it and is not part of the hardware. The access point is managed from the Meraki cloud dashboard, and an optional MA-INJ-4-XX PoE injector or AC-MR-1-XX AC adapter can be used where PoE is not available.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Dual-concurrent 802.11n radios delivering up to 600 Mbps combined data rate
- Dedicated third radio for 24x7 WIPS/WIDS and RF spectrum analytics
- Layer 7 application-aware traffic shaping and firewall
- Integrated policy firewall, guest isolation, Air Marshal WIPS and Teleworker VPN with IPsec
- WPA2-Enterprise 802.1X, VLAN tagging (802.1q) and PCI compliance reporting
- Fast roaming with 802.11r, 802.11k, PMK and OKC, plus Layer 3 roaming
- Band steering to move 5 GHz-capable clients onto the 5 GHz band
- Self-healing mesh with zero-touch cloud deployment and automatic firmware updates
- Automatic RF optimisation with integrated spectrum analyser
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Wi-Fi standard: Wi-Fi 4 (802.11a/b/g/n), dual-band, dual-concurrent 2x2:2 MIMO
- Radios: one 2.4 GHz 802.11b/g/n radio, one 5 GHz 802.11a/n radio
- Dedicated radio: third radio for dual-band WIPS and spectrum analysis
- Maximum data rate: 600 Mbps combined
- Maximum TX power: 24 dBm at 2.4 GHz and 5 GHz (HT20 MCS0)
- Antenna: integrated omni-directional, 3 dBi at 2.4 GHz, 5 dBi at 5 GHz
- Ethernet: 1x 10/100/1000Base-T RJ45 with 802.3af PoE
- PoE input: 24 to 57 V, 802.3af compatible
- DC input: 12V DC, 5 mm x 2.1 mm connector, centre positive
- Power consumption: 9.8 W maximum
- Mounting: desktop, wall mount and ceiling tile rail (9/16, 15/16 or 1 1/2 in rails)
- Physical security: security screw, Kensington lock hard point, anti-tamper cable bay, concealed mount plate
- Operating temperature: 0 to 40 C (32 to 104 F)
- Humidity: 5 to 95% non-condensing
- Dimensions (W x D x H): 186 x 146 x 30 mm, excluding deskmount feet or mount plate
- Weight: 0.73 kg (25.7 oz)
- LED indicators: 2 Ethernet status, 1 power/booting/firmware upgrade status
- Regulatory: FCC, IC, CE, C-Tick (Australia/NZ), Anatel, RoHS, UL2043 plenum rating
- MTBF: 575,000 hours
FAQs
Q: Does the MR18-HW need a licence to operate?
A: Yes. The MR18 requires a Meraki Enterprise cloud licence to operate, and the licence is not part of the MR18-HW hardware SKU.
Q: How is the MR18 powered?
A: It runs from 802.3af PoE (24 to 57 V) or a 12V DC adapter, with a maximum draw of 9.8 W. Optional accessories are the MA-INJ-4-XX PoE injector and the AC-MR-1-XX AC adapter.
Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.
Q: What is the third radio for?
A: The dedicated third radio scans both bands continuously for WIPS/WIDS security and RF spectrum analysis, so monitoring does not use the client-serving radios.
Q: What mounting options does the MR18 support?
A: It can be used on a desktop, mounted on a wall, or fitted to a ceiling tile rail using 9/16, 15/16 or 1 1/2 inch flush or recessed rails.
