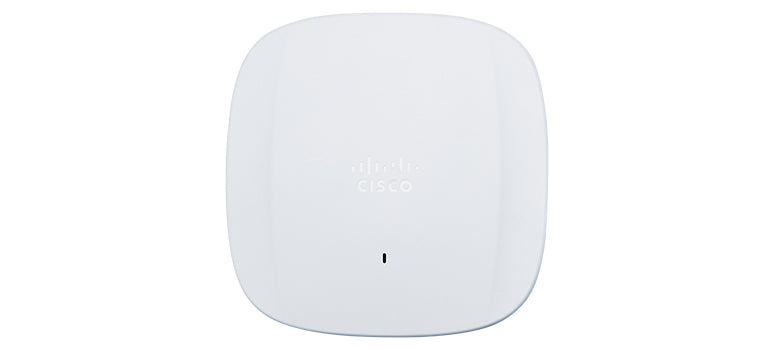

Cisco CW9166I-ROW | Catalyst 9166I Wi-Fi 6E Tri-Band Access Point, 4x4 MIMO

Q: What are the key benefits of Wi-Fi 6E on the CW9166I?
A: Wi-Fi 6E extends Wi-Fi 6 into the 6 GHz band, offering more available spectrum, higher throughput, reduced interference, and greater capacity for high-density deployments. The CW9166I supports three simultaneous 4x4 radios across 2.4 GHz, 5 GHz, and 6 GHz, delivering up to 7.78 Gbps aggregate performance. The 6 GHz band provides cleaner airspace with more non-overlapping channels, ideal for mission-critical applications and ultra-high-density environments.

Q: Can the CW9166I-ROW be managed on-premises or only through the cloud?
A: The CW9166I offers flexible, dual-mode management. It can be cloud-managed via the Cisco Meraki Dashboard or deployed on-premises using Cisco Catalyst Center with a Catalyst 9800 Wireless LAN Controller. Customers can choose the management mode that best fits their infrastructure and migrate between modes as business needs evolve, providing investment protection and operational flexibility.

Q: What power options are supported by this access point?
A: The CW9166I requires PoE+ (802.3at) at a minimum, drawing up to 25W for full radio operation. For USB port functionality (up to 4.5W), 802.3bt UPoE is required, with total power consumption up to 30.5W. Note that 802.3af is not supported. The AP can also be powered via an optional DC power adapter (54V) or PoE injectors such as the Cisco AIR-PWRINJ-6 (802.3at) or AIR-PWRINJ-7 (802.3bt).

Q: What is the XOR radio feature and how does it work?
A: The XOR radio is a software-configurable dual-band radio that can operate in either 5 GHz or 6 GHz mode. This allows administrators to dynamically shift RF capacity between a secondary 5 GHz radio and a 6 GHz radio based on client device support and network demand. When set to 6 GHz mode, the CW9166I provides true tri-band operation (2.4 GHz, 5 GHz, 6 GHz). In dual 5 GHz mode, it offers additional 5 GHz capacity for legacy Wi-Fi 5 and Wi-Fi 6 clients.

Q: What additional radios are included beyond the client-serving radios?
A: Beyond the three 4x4 client-serving radios, the CW9166I includes a dedicated fourth radio for real-time RF scanning, automated RF optimization, and wireless intrusion detection and prevention (WIDS/WIPS). A fifth radio supports Bluetooth Low Energy 5 for location-based services, asset tracking, and IoT sensor integration. These dedicated radios ensure that security monitoring and IoT services do not impact client throughput.
