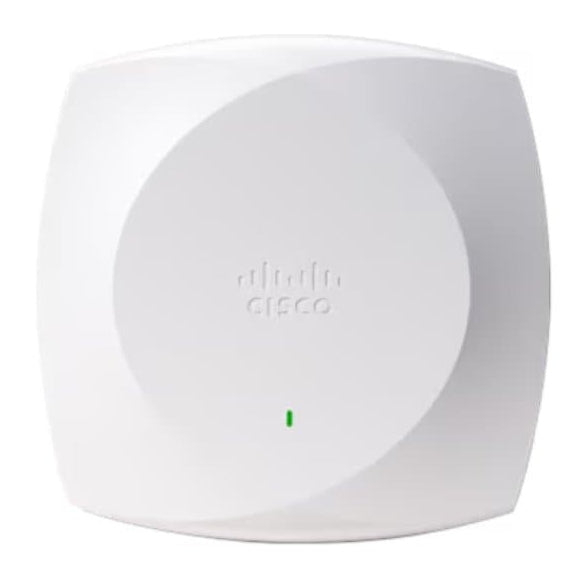

Cisco CW9174E-CFG | Wireless 9174E Wi-Fi 7 Tri-Band External Antenna Access Point

CW9174E-CFG

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco Wireless 9174E is an indoor Wi-Fi 7 (802.11be) tri-band access point with external DART8 antenna connectors. It suits high-ceiling warehouses, cold storage, clean rooms and other challenging RF spaces such as metal racking and narrow aisles, where omnidirectional or directional external antennas are needed. It is also aimed at high-density enterprise areas and AR/VR, video and other low-latency applications. This -CFG configurable SKU is the external antenna model, so antennas are selected separately.

It runs 2.4 GHz at 2x2:2 and 5 GHz and 6 GHz at 4x4:4, with PHY data rates up to approximately 17.5 Gbps in tri-band mode and channel widths up to 320 MHz on 6 GHz. Flexible Radio Assignment also allows 4x4 operation on both 2.4 GHz and 5 GHz. A dedicated 2.4 GHz IoT radio and a dedicated tri-band scanning radio are built in, along with Bluetooth Low Energy 5.3. The uplink is a single 100M/1G/2.5G/5G Multigigabit Ethernet port with PoE-in. It requires a Cisco Wireless Essentials or Advantage subscription.

Compatible external antennas include the CW-ANT-T-O2-D8 omnidirectional and CW-ANT-T-D2-D8 directional models, plus the CW-ANT-T-O4-R dipole. It is managed by Catalyst and Cisco Wireless 9800 Series controllers, a Catalyst 9000 Embedded Wireless Controller in SD-Access mode, or the Meraki cloud.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wi-Fi 7 with 4K-QAM, Multi-Link Operation, enhanced OFDMA and preamble puncturing for 320 MHz channels
- Flexible Radio Assignment for tri-radio (2.4/5/6 GHz) or dual-radio (2.4/5 GHz) operation
- 5G Multigigabit Ethernet uplink, with Cat 5e/6/6A cabling required
- Integrated BLE 5.3 radio for asset tracking, wayfinding and analytics
- USB-based application hosting and container support for IoT deployments
- Operates in on-premises (Catalyst or 9800) or Meraki cloud management mode
- Cisco Trust Anchor technology with image signing and secure boot
- Supports Cisco Spaces, Cisco ISE, SD-Access and Intelligent Capture with Catalyst Center

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Wi-Fi standard: Wi-Fi 7 (802.11be), tri-band
- Radios: 2.4 GHz 2x2:2, 5 GHz 4x4:4, 6 GHz 4x4:4 (or 2.4 GHz 4x4:4 and 5 GHz 4x4:4 with 6 GHz disabled)
- PHY data rate: up to approximately 17.5 Gbps (tri-band mode)
- Channel widths: 20/40/80/160/320 MHz (6 GHz), 20/40/80/160 MHz (5 GHz), 20 MHz (2.4 GHz)
- Antenna: external DART8 connector, antenna selected separately
- Uplink: 1x 100M/1G/2.5G/5G Multigigabit Ethernet (RJ-45), PoE-in
- Additional radios: dedicated 2.4 GHz IoT radio, dedicated tri-band scanning radio, Bluetooth Low Energy 5.3
- Interfaces: RJ-45 console port, USB 2.0 (9W), 54V DC power jack
- Power: 802.3bt Class 5 (UPOE) or 54V DC for full 10-stream operation
- Maximum PoE requirement at PD: 37W (802.3bt Class 5), 25.5W (802.3at), 13.95W (802.3af)
- Power consumption on 802.3at PoE+: idle 12.6W, typical 17.6W
- Transmit power: up to 23 dBm (200 mW) on 5 GHz and 6 GHz
- Dimensions (without brackets): 22.6 x 22.6 x 4.9 cm
- Weight: 1.47 kg
- Operating temperature: -20 to 50 C
- Storage temperature: -30 to 70 C
- Operating humidity: 10% to 90% non-condensing
- Security: WPA2, WPA3, 802.1X, OWE, AES-GCMP256
- Software: Cisco IOS XE 17.18.2 or later, Cisco Meraki MR32.1.5 or later

FAQs

Q: Does the CW9174E need a licence or subscription?
A: Yes. It requires a Cisco Networking Subscription, either Cisco Wireless Essentials or Cisco Wireless Advantage.

Q: Which external antennas work with it?
A: The CW-ANT-T-O2-D8 omnidirectional and CW-ANT-T-D2-D8 directional antennas use the DART8 connector directly. The CW-ANT-T-O4-R dipole connects with an AIR-CAB002-D8-R= or CW-CAB-001-D8-R4 cable. Several existing Cisco antennas are also supported, with adapters where needed.

Q: How should it be powered?
A: For full 10-stream operation use 802.3bt Class 5 (UPOE) or the MA-PWR-50WAC 54V DC adapter. 802.3at PoE+ runs it in reduced mode on a 2.5G link, and 802.3af supports 1x1 operation only.

Q: Which controllers or platforms manage it?
A: Catalyst and Cisco Wireless 9800 Series controllers (physical or virtual), a Catalyst 9000 Embedded Wireless Controller in SD-Access mode, or the Meraki cloud. It needs IOS XE 17.18.2 or later, or Meraki MR32.1.5 or later.

Q: How does the CW9174E differ from the CW9174I?
A: The CW9174E uses external DART8 antenna connectors so you choose omnidirectional or directional antennas for the space. The CW9174I is the indoor model with an omnidirectional antenna.
