Cisco

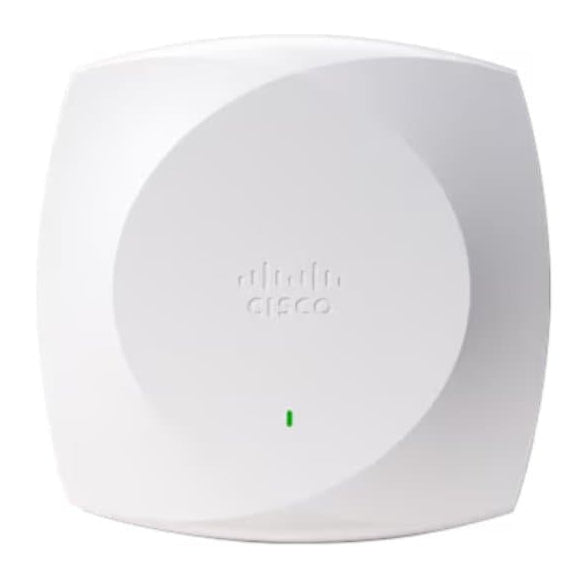

Cisco CW9174I-CFG | Wireless 9174I Wi-Fi 7 Tri-Band Access Point, 5G Uplink

CW9174I-CFG

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco Wireless 9174I (CW9174I) is an indoor Wi-Fi 7 (802.11be) tri-band access point with internal omnidirectional antennas, built for high-density enterprise environments and latency-sensitive applications such as AR/VR, video streaming and collaboration. It is a global-use model and can run on-premises with Catalyst 9800 controllers or be cloud-managed through Meraki.

The radios support 10 spatial streams in total: 2x2:2 on 2.4 GHz, 4x4:4 on 5 GHz and 4x4:4 on 6 GHz, with channel widths up to 320 MHz in the 6 GHz band and PHY data rates up to approximately 17.5 Gbps. The AP can also operate in a dual-band mode with 4x4:4 on both 2.4 GHz and 5 GHz. A single 100M/1G/2.5G/5G multigigabit RJ-45 port provides the uplink. It also includes a dedicated IoT radio (BLE 5.3 and 802.15.4), a dedicated tri-band scanning radio, a USB 2.0 port rated at 9W and a console port. Full tri-band operation with the 5G link draws up to 37W at the powered device from 802.3bt Class 5 (UPOE) or the 54V DC jack.

It works with Catalyst and Cisco Wireless 9800 Series controllers (physical or virtual), Catalyst 9000 switches running Embedded Wireless Controller in SD-Access mode, Catalyst Center, Cisco Spaces and ISE. On-premises operation requires Cisco IOS XE 17.18.2 or later, and Meraki cloud operation requires MR32.1.5 or later. A Cisco Wireless Essentials or Advantage subscription licence is required to operate the AP and is purchased separately.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wi-Fi 7 with 4096-QAM, Multi-Link Operation, enhanced OFDMA and preamble puncturing, with 320 MHz channels in 6 GHz
- 5G multigigabit Ethernet uplink (Cat 5e, 6 or 6A cabling required)
- Flexible Radio Assignment between tri-radio (2.4/5/6 GHz) and dual-radio (2.4/5 GHz) operation
- Integrated BLE 5.3 radio, upgradable to BLE 6 via future software, plus 802.15.4 for IoT
- Application hosting over USB with container support for IoT edge applications
- Integrated accelerometer for post-deployment installation verification
- AP Power Save mode and PoE port scheduling to reduce power consumption
- Intelligent Capture with Catalyst Center, with Cisco Spaces and ISE support
- Cisco Trust Anchor technology with image signing, secure boot and a trust anchor module
- Automatic management-mode discovery for on-premises Catalyst 9800 or Meraki cloud operation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: CW9174I, indoor access point with internal omnidirectional antennas, Global Use
- Wi-Fi standard: Wi-Fi 7 (802.11be), tri-band
- Spatial streams: 10 (2x2:2 on 2.4 GHz, 4x4:4 on 5 GHz, 4x4:4 on 6 GHz)
- Alternate mode: dual-band with 4x4:4 on 2.4 GHz and 4x4:4 on 5 GHz (6 GHz disabled)
- Channel widths: 20/40/80/160/320 MHz (6 GHz), 20/40/80/160 MHz (5 GHz), 20 MHz (2.4 GHz)
- Maximum PHY data rate: up to approximately 17.5 Gbps (tri-band)
- Uplink: 1x 100M/1G/2.5G/5G Multigigabit Ethernet (RJ-45)
- Other interfaces: console port (RJ-45, 115,200 bps), USB 2.0 at 9W, 54V DC power jack
- Integrated antenna peak gain: 5 dBi (2.4 GHz), 5 dBi (5 GHz), 6 dBi (6 GHz), 4 dBi (IoT)
- Maximum transmit power: up to 23 dBm on 5 GHz, 6 GHz and 2.4 GHz 4x4; 20 dBm on 2.4 GHz 2x2
- Dedicated radios: IoT radio (BLE 5.3, 802.15.4) and tri-band scanning radio
- Power input: 802.3bt Class 5 (UPOE) or 54V DC (MA-PWR-50WAC adapter)
- Maximum power draw: 37W (tri-band, 5G link, USB 9W), 32W (dual-band), 25.5W (802.3at, 2.5G link, USB disabled), 13.95W (802.3af, 1x1 2.4 GHz only)
- Power consumption on 802.3at: 12.4W idle, 15.9W typical
- Operating temperature: 0 to 50 C
- Operating humidity: 10% to 90% non-condensing
- Storage temperature: -30 to 70 C
- Dimensions (W x L x H, without brackets): 22.6 x 22.6 x 4.9 cm
- Weight: 1.52 kg
- Software: Cisco IOS XE 17.18.2 or later, or Cisco Meraki MR32.1.5 or later

FAQs

Q: Does the CW9174I need a licence?
A: Yes. It requires a Cisco Networking Subscription, either Cisco Wireless Essentials or Cisco Wireless Advantage, to operate. The licence is purchased separately from the access point.

Q: What PoE does the CW9174I need?
A: For full tri-band operation with the 5G link it needs 802.3bt Class 5 (UPOE) or the 54V DC jack with the MA-PWR-50WAC adapter, drawing up to 37W at the powered device. On 802.3at (PoE+) it runs with a 2.5G link and USB disabled at up to 25.5W. 802.3af supports only a reduced 1x1 2.4 GHz mode.

Q: Which controllers and platforms does it work with?
A: It works with Catalyst and Cisco Wireless 9800 Series controllers (physical or virtual) and with Catalyst 9000 switches running Embedded Wireless Controller in SD-Access mode. It also supports Catalyst Center, Cisco Spaces and ISE. On-premises operation needs Cisco IOS XE 17.18.2 or later.

Q: Can it be managed from the Meraki cloud?
A: Yes. The Global Use model can run in Meraki cloud-managed mode with software MR32.1.5 or later, or in on-premises mode with a Catalyst 9800 controller.

Q: How does the CW9174I differ from the CW9174E?
A: The CW9174I has internal omnidirectional antennas. The CW9174E is the sibling model with external antenna connectors.
