Cisco

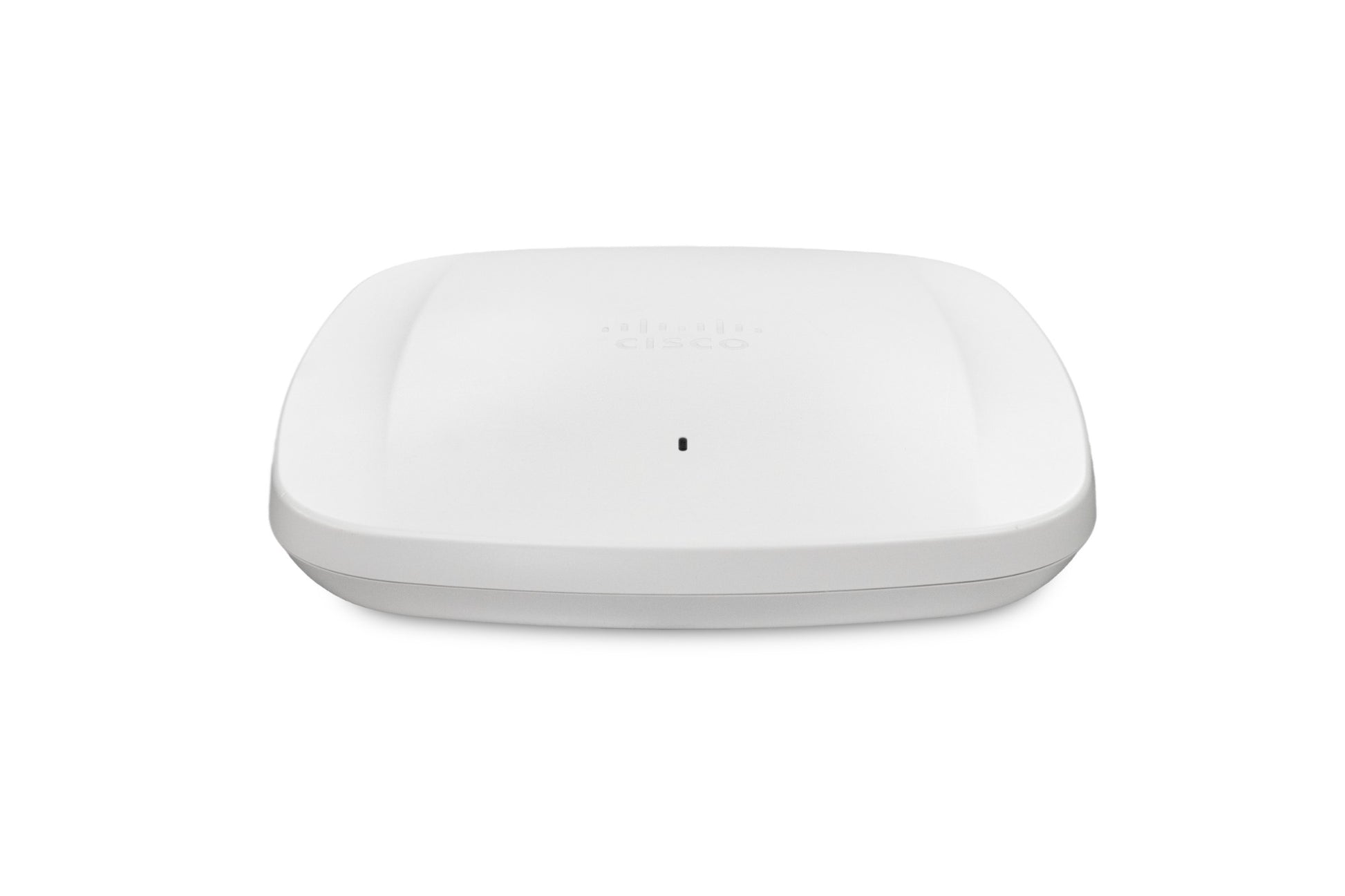

Cisco CW9166D1-Z | Catalyst 9166D1 Wi-Fi 6E Access Point, Directional, Reg Z

CW9166D1-Z

1 in stock

$3,451.15 inc. GST
$3,137.41 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9166D1 is an indoor Wi-Fi 6E tri-radio access point from the Catalyst 9166 Series, built around an integrated directional antenna. It is aimed at high-density deployments such as venues and auditoriums, where focused coverage helps serve many clients in a defined area.

This SKU is the Regulatory domain Z variant with a tri-band 4x4 XOR radio configuration. It operates on 2.4 GHz, 5 GHz and 6 GHz with 4x4:4 MU-MIMO and a tri-radio aggregate frame rate of up to 7.8 Gbps. The integrated directional antenna provides 6 dBi gain at 2.4 and 5 GHz with a 70x70 degree beamwidth, and 8 dBi gain at 6 GHz with a 60x60 degree beamwidth. A dedicated dual-band scanning radio and a Bluetooth Low Energy radio support RF monitoring and IoT use cases, with full-time Wi-Fi location tracking.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Integrated directional antenna for high-density environments
- Tri-radio Wi-Fi 6E operation including the 6 GHz band
- 4x4:4 MU-MIMO for serving multiple clients at once
- Dedicated dual-band scanning radio
- Bluetooth Low Energy radio for IoT use cases
- Full-time Wi-Fi location tracking

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Wi-Fi standard: 802.11ax (Wi-Fi 6E)
- Radios: 2.4 GHz, 5 GHz and 6 GHz
- Spatial streams: 4x4:4 MU-MIMO
- Aggregate frame rate: up to 7.8 Gbps (tri-radio)
- Antenna: integrated directional
- Antenna gain, 2.4 and 5 GHz: 6 dBi (70x70 degrees)
- Antenna gain, 6 GHz: 8 dBi (60x60 degrees)
- Scanning radio: dual-band
- IoT radio: Bluetooth Low Energy
- Location: full-time Wi-Fi location tracking
- Regulatory domain: Z

FAQs

Q: What does the Z in CW9166D1-Z mean?
A: The Z suffix denotes the Regulatory domain Z variant of the Catalyst 9166D1. Check that this domain matches your country of deployment before ordering.

Q: Where is a directional access point best used?
A: The integrated directional antenna suits high-density areas such as venues and auditoriums, where coverage is aimed at a defined zone rather than spread in all directions.

Q: Which bands does this access point support?
A: It has 2.4 GHz, 5 GHz and 6 GHz radios, plus a separate dual-band scanning radio.

Q: Does this access point have Bluetooth?
A: Yes. It includes a Bluetooth Low Energy radio for IoT use cases.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
