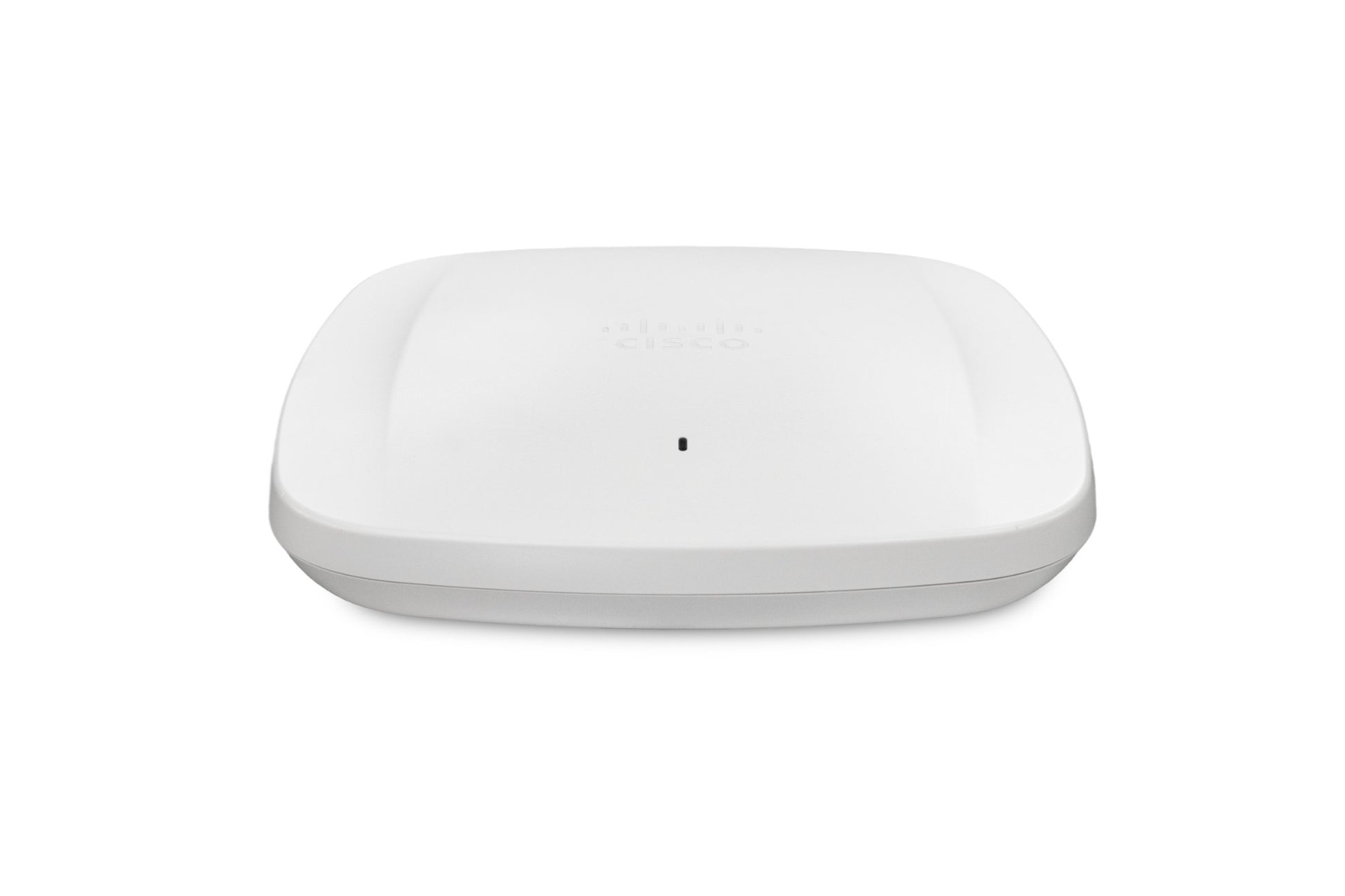

Cisco CW9162I-Z | Catalyst 9162I Wi-Fi 6E Tri-Band Access Point, Reg Z

CW9162I-Z

Stock Status: Enquire

$1,537.27 inc. GST
$1,397.52 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9162I is an enterprise indoor Wi-Fi 6E access point from the Catalyst 9162 series, built for hybrid work environments and IoT use cases such as location tracking and wayfinding. It runs three 2x2 client-serving radios across the 2.4 GHz, 5 GHz and 6 GHz bands, with the 6 GHz band giving more capacity and less interference.

The CW9162I-Z is the Reg Z regulatory domain variant. It provides up to 3.9 Gbps tri-radio aggregate frame rate and a single 100/1000/2500 Multigigabit Ethernet uplink. Power comes from 802.3at or 802.3bt PoE, or the DC 12V jack. A dedicated scanning radio supports real-time RF spectrum visibility and automatic RF optimisation, and an integrated Bluetooth Low Energy radio handles IoT services.

The access point can be managed on-premises through a Cisco Catalyst 9800 Series Wireless Controller or from the cloud in Meraki mode, and it supports Cisco Catalyst Center, Cisco Spaces and Cisco ISE.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Choice of cloud or on-premises management
- Uses the 6 GHz band for higher throughput, more capacity and less interference
- Dedicated scanning radio for real-time RF spectrum view and automatic RF optimisation
- Integrated BLE radio for IoT use cases such as location tracking and wayfinding
- Intelligent Capture feeds deep network analysis to Cisco Spaces
- Cisco Catalyst Center support, including Cisco Spaces, Apple FastLane and Cisco ISE
- Optimised AP Roaming steers clients to the AP offering the fastest data rate
- Interoperates with 802.11ax and 802.11ac clients and supports hybrid deployment with other APs and controllers

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Wi-Fi standard: 802.11ax (Wi-Fi 6E)
- Radio bands: 2.4 GHz, 5 GHz, 6 GHz
- Client-serving radios: three 2x2 radios
- Aggregate frame rate: up to 3.9 Gbps (tri-radio)
- Channel widths (6 GHz): 20, 40, 80 and 160 MHz
- Channel widths (5 GHz): 20, 40 and 80 MHz
- Uplink MU-MIMO: 6 GHz radio only; downlink MU-MIMO supported
- Scheduling: OFDMA for uplink and downlink
- Packet aggregation: A-MPDU and A-MSDU (transmit and receive)
- Other 802.11 features: Dynamic Frequency Selection (DFS), Cyclic Shift Diversity (CSD)
- Ethernet uplink: 1 x 100/1000/2500 Multigigabit (RJ-45)
- Console: RS-232 through RJ-45
- USB: 2.0, Type-A
- Power input: 802.3at / 802.3bt PoE or DC 12V jack
- Antennas: integrated internal, omnidirectional in azimuth
- BLE radio: integrated, uses one 2.4 GHz antenna
- Interfaces: recovery push button, one multicolour LED
- Regulatory domain: Reg Z

FAQs

Q: What does the Z mean in CW9162I-Z?
A: The -Z suffix is the Reg Z regulatory domain variant of the Catalyst 9162I. The hardware and features match the other regulatory variants, but the radio settings follow the Reg Z domain.

Q: How is the CW9162I-Z powered?
A: It can be powered by 802.3at or 802.3bt PoE, or from the DC 12V power jack. A PoE switch port that supports one of these standards is the simplest option.

Q: What can manage this access point?
A: It can be managed on-premises with a Cisco Catalyst 9800 Series Wireless Controller, or from the cloud in Meraki mode. It also supports Cisco Catalyst Center, Cisco Spaces and Cisco ISE.

Q: What switch port speed do I need for the uplink?
A: The access point has a single 100/1000/2500 Multigigabit RJ-45 uplink. A Multigigabit switch port lets it use the full 2.5G speed, and it will also link at 1G or 100M.

Q: Does it support the 6 GHz band?
A: Yes. It is a tri-band Wi-Fi 6E access point with 2.4 GHz, 5 GHz and 6 GHz radios. The 6 GHz radio supports channel widths up to 160 MHz.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
