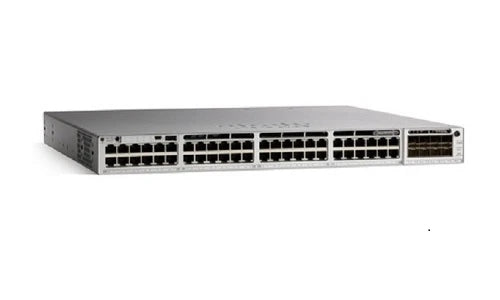

• Cisco Meraki C9300L-48UXG-4X-M switch with 48 mGig ports and 4x10G uplinks
1 1

Meraki

Meraki C9300L-48UXG-4X-M | Catalyst 9300L-M 48-Port UPOE Switch, 12 mGig, 4x 10G SFP+

C9300L-48UXG-4X-M

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300L-M is a cloud-managed, stackable Layer 3 access switch that pairs the Meraki dashboard with Catalyst hardware. This 48-port UPOE model provides 12 multigigabit and 36 gigabit RJ45 ports, four fixed 10G/1G SFP+ uplinks and a default 1100WAC power supply delivering a 675W PoE budget. It suits campus and enterprise access deployments needing high-power PoE for Wi-Fi 6 access points, IP cameras and multigigabit endpoints.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Managed via the Cisco Meraki Dashboard with zero-touch remote provisioning
- Layer 3 capabilities
- mGig support on UPOE models
- Redundant hot-swappable power supplies and replaceable fans
- Detailed historical per-port and per-client usage statistics
- Automatic firmware upgrades with scheduling control
- SNMP and Syslog support for integration with other management tools
- Role-based access control, 802.1X RADIUS/MAB, port security, DHCP snooping, Dynamic ARP Inspection, IPv4/IPv6 ACLs
- Adaptive Policy (Advanced license required)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 48-port UPOE: 12 x 100M/1G/2.5G/5G/10G mGig RJ45 + 36 x 1G (1G/100M/10M) RJ45
- 4 x 1G/10G SFP+ fixed uplinks
- UPOE (60W per port) / IEEE 802.3bt
- 2 x 320G hardware stack ports (up to 8 switches; C9300L-STAK-KIT2-M required for each switch stacked)
- 1 dedicated management interface
- Switching capacity: 392 Gbps (712 Gbps with stacking)
- Forwarding rate: 291.66 Mpps (529.76 Mpps with stacking)
- Default power supply: PWR-C1-1100WAC-P-M, hot-swap dual PSU bays
- PoE budget: 675W with primary PS; 1775W with 1100W secondary PS
- Power load (idle/max): 104.56 / 875.3 W
- 1U rack-mount; 1.73 x 17.5 x 19.2 in (4.4 x 44.5 x 48.8 cm); 16.86 lb (7.65 kg)
- 3 x hot-swap fans
- Operating temperature -5°C to 45°C; humidity 5-90%

FAQs

Q: How many multigigabit and gigabit ports does the C9300L-48UXG-4X-M provide?
A: It has 48 RJ45 ports in total: 12 multigigabit ports supporting 100M/1G/2.5G/5G/10G and 36 gigabit ports supporting 10M/100M/1G. All ports support UPOE.

Q: What PoE budget does this switch offer?
A: With the default 1100W AC power supply the PoE budget is 675W. Adding a second 1100W power supply raises the budget to 1775W. Each port can deliver up to 60W under UPOE (IEEE 802.3bt).

Q: Can this switch be stacked?
A: Yes. It has two 320G hardware stack ports and supports stacks of up to 8 switches. A C9300L-STAK-KIT2-M stacking kit is required for each switch in the stack.

Q: What uplink options are available?
A: The switch has four fixed 1G/10G SFP+ uplink ports, which accept 1G or 10G SFP+ optics and direct attach cables.

Q: How is the switch managed?
A: It is managed through the Cisco Meraki Dashboard, with zero-touch remote provisioning, automatic scheduled firmware upgrades and historical per-port and per-client statistics. SNMP and Syslog are also supported for integration with other tools.
