• Meraki C9300L-48PF-4X-M switch with 48 PoE+ ports and 4x 10G SFP+ uplinks
1 1

Meraki

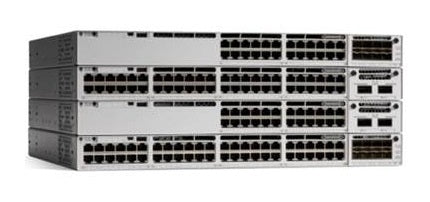

Meraki C9300L-48PF-4X-M | Catalyst 9300L-M 48-Port PoE+ Switch, 890W, 4x 10G SFP+

C9300L-48PF-4X-M

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300L-M C9300L-48PF-4X-M is a cloud-managed, Layer 3 stackable access switch with 48 gigabit RJ45 ports and four fixed 10G/1G SFP+ uplinks. This full-power variant ships with a default 1100W AC power supply and delivers an 890W PoE budget, providing a larger PoE budget than the 48P model. It combines Meraki Dashboard management with Catalyst 9300L hardware, making it well suited to campus and branch access layers that need centralised, zero-touch provisioning.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Managed via the Cisco Meraki Dashboard with zero-touch remote provisioning
- Adaptive Policy security-group segmentation (Advanced licence required)
- Detailed historical per-port and per-client usage statistics
- Remote diagnostics including packet capture, cable testing and topology discovery
- Virtual stacking for unified management of many switch ports
- Role-based access control, 802.1X RADIUS/MAB, DHCP snooping, Dynamic ARP Inspection, IPv4/IPv6 ACLs
- Static routing, OSPFv2, multicast routing (PIM-ASM), DHCP server/relay
- Redundant hot-swappable power supplies and replaceable fans
- Requires a separate Meraki Enterprise or Advanced licence

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 48 x 10/100/1000 RJ45 ports, PoE/PoE+ (30W per port)
- 4 x 10G/1G SFP+ fixed uplinks
- Layer 3 switching
- Switching capacity: 176 Gbps standalone, 496 Gbps with stacking
- Forwarding rate (single/stack): 130.95 / 369.05 Mpps
- 2 x 320G hardware stack ports; up to 8 switches per physical stack (stacking kit required)
- 1 dedicated management interface
- Default power supply: PWR-C1-1100WAC-P-M, hot-swap dual PSU bays
- PoE budget: 890W with primary power supply, 1440W with optional secondary power supply
- Power load (idle/max): 67.38 / 1023.56 W
- Dimensions: 4.4 x 44.5 x 48.8 cm (1U rack mount)
- Weight: 7.03 kg
- 3 x hot-swap fans
- Operating temperature: -5°C to 45°C; humidity 5 to 90%

FAQs

Q: How much PoE power does the C9300L-48PF-4X-M provide?
A: With the default 1100W AC power supply the PoE budget is 890W. Adding an optional secondary power supply raises the PoE budget to 1440W.

Q: Does this switch require a Meraki licence?
A: Yes. It is managed through the Meraki Dashboard and requires a separate Meraki Enterprise or Advanced licence. Adaptive Policy segmentation requires the Advanced licence.

Q: What uplink options are available?
A: It has four fixed 10G/1G SFP+ uplink ports, which accept compatible SFP+ or SFP optics and DAC cables.

Q: Can this switch be stacked?
A: Yes. It has two 320G hardware stack ports and supports up to eight switches in a physical stack. A stacking kit is required.

Q: How does the PF variant differ from the 48P model?
A: The PF (full power) variant ships with an 1100W AC power supply and provides a larger PoE budget of 890W, compared with the lower budget of the 48P model.
