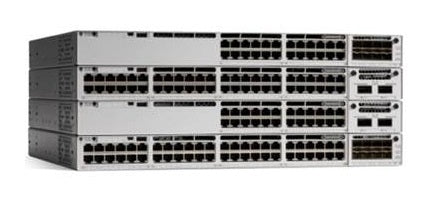

• Meraki C9300-48T-M silver Cisco switch stack with 48x 1G ports
1 1

Meraki

Meraki C9300-48T-M | Catalyst 9300-M 48-Port Gigabit Switch, 350W AC PSU

C9300-48T-M

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki cloud-managed Catalyst 9300-M is a Layer 3 stackable access switch with 48 x 1GbE RJ45 data-only ports and no PoE. It supports modular 10G SFP+ and 40G QSFP+ uplinks and ships with a 350W AC power supply. Managed through the Meraki dashboard with zero-touch provisioning, it suits campus and branch access deployments that need stacking and high-density gigabit connectivity.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Layer 3 switching with static routing, OSPFv2, DHCP server/relay
- Managed via Cisco Meraki Dashboard with zero-touch provisioning
- Virtual stacking plus physical stacking of up to 8 switches
- StackPower in a ring topology supporting up to 4 switches
- Adaptive Policy using over-the-wire tag segmentation (Advanced license)
- Dashboard per-port and per-client usage statistics
- Meraki Enterprise/Advanced license tiers apply to the C9300-M family

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 48 x 1GbE RJ45 ports, no PoE/UPoE
- Modular uplinks (10G SFP+ / 40G QSFP+ modules, sold separately)
- 2 x 120G hardware stack ports (480 Gbps stacking bandwidth)
- 1 x dedicated management interface
- Switching capacity: 256 Gbps (480 Gbps with stacking)
- Forwarding rate: 190.48 Mpps
- Default power supply: PWR-C1-350WAC-P-M (hot-swap, dual PSU supported)
- Power load idle/max: 83.9 / 109.9 W
- 1U rack mount, 3x hot-swap fans
- Dimensions: 4.4 x 44.5 x 44.9 cm; weight 7.45 kg (16.43 lb)
- Operating temperature: -5°C to 45°C; humidity 5 to 90%
- MTBF at 25°C: 305,870 hours

FAQs

Q: Does the C9300-48T-M support PoE?
A: No. This model provides 48 x 1GbE RJ45 data-only ports with no PoE or UPoE. PoE-capable variants exist elsewhere in the Catalyst 9300-M family.

Q: Are uplink modules included?
A: No. The switch supports modular 10G SFP+ and 40G QSFP+ uplinks, but the network modules are sold separately.

Q: How is this switch managed?
A: It is cloud-managed through the Meraki dashboard, with zero-touch provisioning for simplified deployment.

Q: Can multiple switches be stacked?
A: Yes. It has 2 x 120G hardware stack ports for physical stacking of up to 8 switches, and virtual stacking is also supported through the dashboard.

Q: Which power supply does it use?
A: It ships with the 350W AC PWR-C1-350WAC-P-M hot-swap power supply, and dual power supplies are supported.
