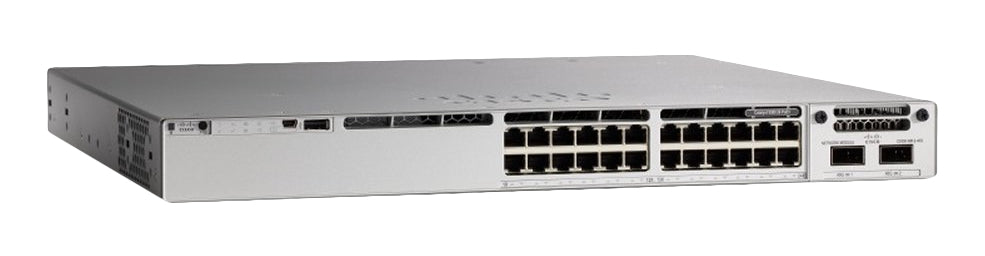

• Meraki C9300-24UX-M Cisco Catalyst 9300 switch with 24 mGig ports
1 1

Meraki

Meraki C9300-24UX-M | Catalyst 9300-M 24-Port mGig UPoE Switch, 560W PoE

C9300-24UX-M

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300-M C9300-24UX-M is a cloud-managed Layer 3 stackable access switch with 24 multigigabit RJ45 ports supporting 100M/1G/2.5G/5G/10G and UPoE at up to 60W per port. It pairs the Meraki dashboard with Catalyst 9300 hardware and provides modular uplinks for 10G SFP+ or 40G QSFP+ network modules, sold separately. The 1100W AC power supply delivers a 560W PoE budget, making it well suited to campus and enterprise access deployments with high-power PoE devices and multigigabit Wi-Fi access points.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Managed via the Meraki dashboard with zero-touch remote provisioning
- Layer 3 routing including static routing, OSPFv2, multicast PIM-ASM and DHCP server/relay
- Virtual stacking, plus StackPower in a ring topology supporting up to 4 switches
- PoE+ and UPoE support
- Netflow v10 (IPFIX) and Encrypted Traffic Analytics
- Security: 802.1X RADIUS/MAB, DHCP snooping, Dynamic ARP Inspection, IPv4/IPv6 ACLs, Adaptive Policy
- STP enhancements: BPDU guard, Root guard, Loop guard, UDLD
- 802.3ad link aggregation with up to 8 ports per aggregate
- Requires a separate Catalyst 9300-M Enterprise or Advanced licence, not included

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 24 x 100M/1G/2.5G/5G/10G RJ45 mGig ports
- UPoE / IEEE 802.3bt, 60W per port
- Modular uplinks: 10G SFP+ or 40G QSFP+ (network modules sold separately)
- 2 x 120G hardware stacking ports
- 1 x dedicated management interface
- Switching capacity: 640 Gbps
- Stacking bandwidth: 480 Gbps
- Forwarding rate: 476.19 Mpps
- Default power supply: PWR-C1-1100WAC-P-M (1100W AC), hot-swappable, dual PSU slots
- Available PoE budget: 560W with primary power supply, 1440W with secondary power supply
- Power load (idle/max): 162.7 / 809.9 W
- Dimensions: 4.4 x 44.5 x 51.3 cm, 1U rack mount
- Weight: 8.25 kg
- 3 x hot-swap fans
- Operating temperature: -5°C to 45°C, humidity 5 to 90%
- MTBF at 25°C: 214,760 hours

FAQs

Q: What port speeds do the 24 downlink ports support?
A: All 24 RJ45 ports are multigigabit and auto-negotiate 100M, 1G, 2.5G, 5G or 10G, with UPoE delivering up to 60W per port.

Q: Does this switch include uplink modules?
A: No. The uplinks are modular and accept 10G SFP+ or 40G QSFP+ network modules, which are sold separately.

Q: How is the C9300-24UX-M managed?
A: It is cloud-managed through the Meraki dashboard, with zero-touch remote provisioning. A separate Catalyst 9300-M Enterprise or Advanced licence is required and is not included.

Q: What is the PoE budget and power supply?
A: It ships with the PWR-C1-1100WAC-P-M 1100W AC power supply, giving a 560W PoE budget. Adding a secondary power supply raises the available PoE budget to 1440W.

Q: Can it be stacked?
A: Yes. It has 2 x 120G hardware stacking ports with 480 Gbps of stacking bandwidth, and supports StackPower in a ring topology with up to 4 switches.
