• Meraki C9300-24U-M Cisco Catalyst 9300 switch with 24x 1G UPOE ports
1 1

Meraki

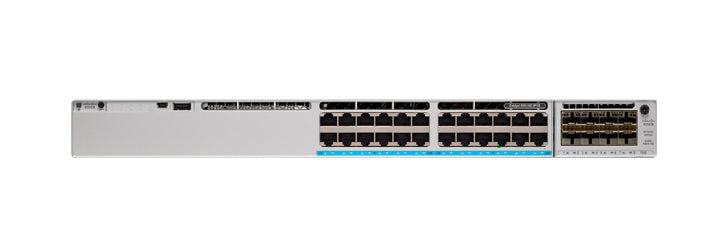

Meraki C9300-24U-M | Catalyst 9300-M 24-Port UPoE Switch, 1100W, Modular Uplinks

C9300-24U-M

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki Catalyst 9300-M C9300-24U-M is a cloud-managed Layer 3 stackable access switch with 24 Gigabit RJ45 ports delivering up to 60W UPoE per port. It includes an 1100W AC power supply and supports modular 10G or 40G uplinks via a network module sold separately. Managed through the Meraki Dashboard, it suits enterprise access layers and Wi-Fi 6 deployments that need high PoE capacity and stacking.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Managed via the Cisco Meraki Dashboard with zero-touch remote provisioning
- Layer 3 routing with static and dynamic routing
- Physically stack up to 8 switches; virtual stacking for unified management
- StackPower in a ring topology supporting up to 4 switches
- Remote diagnostics: packet capture, cable testing, ping/traceroute, alerting
- Adaptive Policy and Group Policy ACL segmentation
- Requires a Meraki Enterprise or Advanced licence to operate

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 24 x 1GbE RJ45 ports with 60W UPoE (802.3bt)
- Modular uplinks (10G/40G, network module sold separately)
- 2 x 120G hardware stack ports (480 Gbps stacking bandwidth)
- 1 x dedicated management interface
- Default power supply: PWR-C1-1100WAC-P-M (1100W AC), hot-swap dual PSU slots
- Available PoE budget: 830W with primary PSU, up to 1440W with secondary PSU
- Switching capacity: 208 Gbps
- Forwarding rate: 154.76 Mpps
- Power consumption (idle/max): 85.4 / 990.3 W
- Dimensions: 4.4 x 44.5 x 44.8 cm, 1U rack mount
- Weight: 7.54 kg
- 3 x hot-swap fans
- Operating temperature: -5°C to 45°C; humidity 5 to 90%
- MTBF: 238,410 hours at 25°C

FAQs

Q: Does the C9300-24U-M include uplink ports?
A: The uplinks are modular. The switch supports 10G or 40G uplinks through a network module, which is sold separately.

Q: How much PoE power is available?
A: Each of the 24 ports supports up to 60W UPoE. The available PoE budget is 830W with the primary power supply and up to 1440W with a secondary power supply fitted.

Q: Can this switch be stacked?
A: Yes. It has 2 x 120G stack ports providing 480 Gbps of stacking bandwidth and supports physical stacking of up to 8 switches. StackPower is supported in a ring of up to 4 switches.

Q: How is the C9300-24U-M managed?
A: It is managed through the Cisco Meraki Dashboard, with zero-touch remote provisioning and remote diagnostics such as packet capture and cable testing. A Meraki Enterprise or Advanced licence is required to operate it.

Q: Which power supply is included?
A: It ships with the PWR-C1-1100WAC-P-M 1100W AC power supply. The chassis has dual hot-swap PSU slots for redundancy or added PoE budget.
