• Cisco Meraki C9300-24S-M 24-port 1G SFP switch with modular uplinks
1 1

Meraki

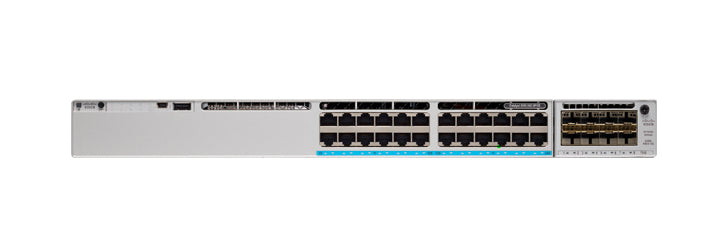

Meraki C9300-24S-M | Catalyst 9300 24-Port Gigabit SFP Switch, Modular

C9300-24S-M

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki C9300-24S-M is a cloud-managed stackable enterprise switch featuring 24 x 1G SFP ports with modular uplink expansion capabilities. Managed through the intuitive Meraki Dashboard, this Layer 3 switch combines Cisco Catalyst hardware performance with simplified cloud-based network management. Designed for demanding enterprise environments requiring fiber connectivity, Wi-Fi 6 deployment support, and scalable security with Adaptive Policy segmentation.

Features

Cloud-managed via Meraki Dashboard with centralized configuration across thousands of ports
- Layer 3 routing with static routes, OSPF, EIGRP, and BGP support
- Adaptive Policy for intent-based network segmentation using Security Groups
- 802.1x authentication, ACL support, Dynamic ARP Inspection (DAI), and DHCP snooping
- StackWise-480 technology providing 480 Gbps stacking bandwidth for up to 8 switches
- StackPower for resilient power pooling and distribution across stacked units
- Modular uplink expansion with field-replaceable network modules supporting 1G to 40G speeds
- Zero-touch provisioning with automatic firmware updates and scheduling control
- Per-port and per-client historical usage statistics and visibility
- Remote troubleshooting capabilities including ping, traceroute, cable testing, and packet capture
- Support for up to 4,094 VLANs and 32,000 MAC addresses
- SNMP and Syslog integration for third-party management platforms
- Non-blocking wire-speed performance for both IPv4 and IPv6 traffic
- 3 x field-replaceable fans with N+1 redundancy
- Email, SMS, and mobile push notification alerts for network events

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

24 x 1G SFP ports for fiber connectivity
- 1 x modular network module slot supporting 4 x 1G, 8 x 10G, 2 x 25G, or 2 x 40G uplinks
- Layer 3 switching with full routing capabilities
- 208 Gbps switching capacity (688 Gbps with stacking)
- 154.76 Mpps forwarding rate (511.90 Mpps with stacking)
- 2 x StackWise-480 ports providing 480 Gbps stacking bandwidth, up to 8 units
- 2 x StackPower ports for resilient power distribution across stack
- MAC address table: 32,000 entries
- VLAN support: up to 4,094 VLANs
- PWR-C1-715WAC-P-M 715W AC power supply included
- Dimensions: 1.73 x 17.5 x 19.2 in. (4.4 x 44.5 x 48.8 cm), 1U rack-mountable
- Weight: 14.42 lb (6.54 kg)
- Cloud-managed via Meraki Dashboard with zero-touch provisioning
- Requires Meraki Enterprise or Advanced license subscription (sold separately)

FAQs

Q: What type of uplink modules are compatible with the C9300-24S-M?
A: The C9300-24S-M supports modular network modules including C9300-NM-4G-M (4 x 1G), C9300-NM-8X-M (8 x 10G/1G), C9300-NM-2Q-M (2 x 40G), and C9300-NM-2Y-M (2 x 25G). Modules are sold separately and allow flexible uplink configuration based on bandwidth requirements.

Q: Can this switch be stacked with other Catalyst 9300 models?
A: Yes, the C9300-24S-M can stack with other C9300-M series switches with the same license tier (Enterprise or Advanced) using StackWise-480 technology. Up to 8 units can be stacked with 480 Gbps stacking bandwidth, providing unified management and resilience.

Q: What is the difference between Meraki Enterprise and Advanced licenses?
A: Both license tiers provide cloud management, zero-touch provisioning, and network visibility. Advanced licenses add enhanced Layer 7 traffic analytics, group-based policy enforcement, and advanced security features. Organizations with existing Advanced licenses must maintain the same tier across all switches.

Q: Does this switch support Power over Ethernet?
A: No, the C9300-24S-M has SFP fiber ports only and does not provide PoE. For PoE requirements with Meraki cloud management, consider the C9300-24P-M or C9300-24U-M models with RJ45 PoE+ or mGig UPoE ports.

Q: How is the C9300-24S-M managed?
A: The switch is managed entirely through the Meraki cloud dashboard with zero-touch remote provisioning. It supports SNMP and Syslog integration for third-party network management tools, and provides detailed per-port usage statistics, cable testing, packet capture, and automated firmware updates.
