Meraki

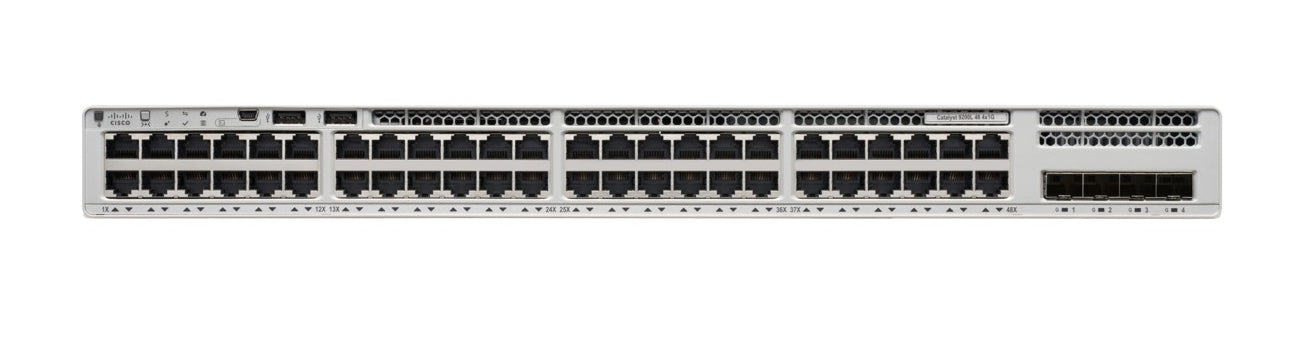

Meraki C9200L-48T-4G-M | Catalyst 9200L-M 48-Port Gigabit Switch, 4x 1G SFP

C9200L-48T-4G-M

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Meraki C9200L-48T-4G-M is a cloud-managed enterprise access switch delivering 48 Gigabit Ethernet data ports and 4x 1G SFP uplinks, managed through the intuitive Meraki dashboard. Built on the Catalyst 9200L platform with IOS XE and the UADP 2.0 ASIC, it combines powerful hardware with the simplicity of cloud management for branch offices, campuses, and small to medium enterprises. Ideal for organisations seeking secure, scalable connectivity without complex on-premise management infrastructure.

Features

Meraki cloud-based management with intuitive dashboard
- Cisco IOS XE operating system with programmable UADP 2.0 ASIC
- Virtual stacking supporting thousands of ports in a single logical stack
- MACsec encryption for Layer 2 data security
- Advanced security with Secure Boot and hardware-based trust
- Layer 3 routing capabilities including static routing and OSPF
- Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption
- 802.1X network access control and dynamic VLAN assignment
- VLAN support with 802.1Q tagging and 4096 VLANs
- Spanning Tree Protocol (802.1s MSTP, RSTP, STP)
- Link aggregation (LACP) with up to 8 ports per aggregate
- Quality of Service (QoS) with 8 egress queues
- Full NetFlow support for traffic monitoring and analytics
- Redundant power supply support (secondary PSU optional)
- Plug-and-Play (PnP) provisioning for rapid deployment
- Blue beacon LEDs for easy physical identification

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

48x 10/100/1000 Gigabit Ethernet RJ45 data ports
- 4x 1G SFP fixed uplink ports
- Switching capacity: 104 Gbps
- Forwarding rate: 77.38 Mpps
- Memory: 2 GB DRAM, 4 GB Flash
- MAC address table: 16,000 entries
- Layer 3 switching with routing capabilities
- StackWise-80 support via optional C9200L-STACK-KIT-M (up to 8 switches, 80 Gbps stacking bandwidth)
- Fixed redundant fans
- Default power supply: PWR-C5-125WAC
- Management: Meraki cloud dashboard, CLI, WebUI, SNMP
- Dimensions: 1.73 x 17.5 x 11.3 inches (1U rack-mountable)
- Operating temperature: -5°C to +45°C (up to 1500m), -5°C to +40°C (up to 3000m)

FAQs

Q: What licensing is required for the C9200L-48T-4G-M?
A: This switch requires a Meraki license for cloud management. Catalyst 9200L-M licenses are available in Enterprise and Advanced tiers, with 1, 3, 5, 7, or 10-year terms. The license enables full cloud management through the Meraki dashboard and is required for the switch to pass traffic.

Q: Can I stack the C9200L-48T-4G-M with other Catalyst switches?
A: The C9200L-48T-4G-M can be stacked with other C9200L-M models running the same license tier using the C9200L-STACK-KIT-M (sold separately). Up to 8 switches can be stacked with 80 Gbps of bandwidth. It cannot be stacked with standard C9200 modular models, C9200CX switches, or legacy Catalyst 2960 series switches.

Q: Does the C9200L-48T-4G-M support Power over Ethernet?
A: No, the C9200L-48T-4G-M is a data-only switch and does not provide PoE. For PoE requirements, consider the C9200L-48P-4G-M or C9200L-48PL-4G-M models which support PoE+ on all 48 ports.

Q: What is the difference between the Meraki-managed and standard Catalyst 9200L models?
A: The C9200L-48T-4G-M variant is managed exclusively through the cloud-based Meraki dashboard, offering simplified deployment and zero-touch provisioning. Standard C9200L models use traditional on-premise management via Cisco DNA Center, CLI, or web interface. Both run on the same hardware platform with identical performance specifications.

Q: What SFP modules are compatible with this switch?
A: The switch supports Meraki SFP transceivers including MA-SFP-1GB-SX (1000BASE-SX, 1km) and MA-SFP-1GB-LX10 (1000BASE-LX, 10km) for fibre connectivity, as well as Cisco-compatible 1G SFP modules. The 4x uplink ports are fixed 1G SFP and do not support 10G speeds.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
