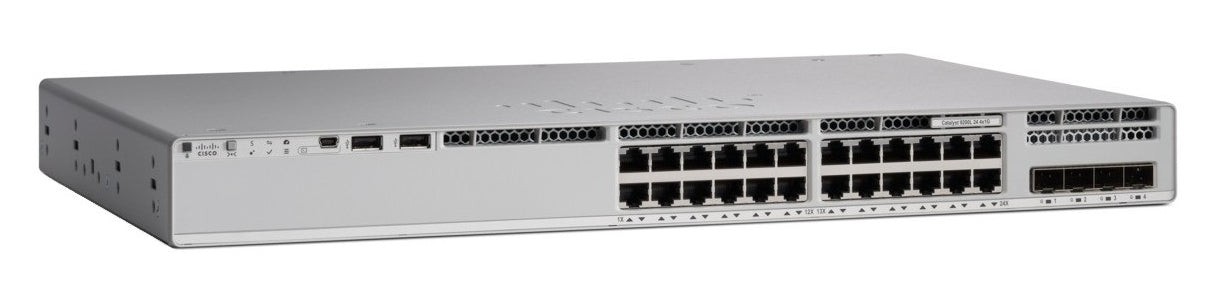

Meraki C9200L-24PXG-4X-M | Catalyst 9200L-M 24-Port PoE+ Switch, 8x mGig, 740W, 4x 10G SFP+
SKU:C9200L-24PXG-4X-M
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Meraki Catalyst 9200L-M is a cloud-managed access switch built for branch-office and campus deployments that need full PoE+ and multigigabit ports for Wi-Fi 6/6E access points, IP phones and IoT endpoints. It is the Meraki dashboard variant of the Catalyst 9200L fixed-uplink range, so it can be managed from the cloud out of the box.
The switch provides 24 full PoE+ copper ports, made up of 8 multigigabit ports running up to 10G and 16 ports at up to 1G, plus 4x 1/10G SFP+ fixed uplinks. With dual 600W power supplies the PoE budget reaches 740W, and a single supply provides 370W. Switching capacity is 272 Gbps and forwarding rate is 214.28 Mpps, rising to 352 Gbps and 262 Mpps when stacked. StackWise-80 stacking supports up to 8 members at 80 Gbps using the C9200L-STACK-KIT.
It stacks only with other C9200L models at the same licence level, not with modular C9200 or C9200CX switches. It is a 1RU rack-mount unit with a field-replaceable power supply slot and fixed redundant fans, and it can be managed through the Meraki dashboard, Catalyst Center or CLI.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Full PoE+ (30W per port) with Perpetual PoE and Fast PoE
- Multigigabit ports up to 10G suited to Wi-Fi 6/6E access points
- Optional StackWise-80 backplane stacking
- Field-replaceable, redundant power supply slot
- AES-128 MACsec encryption and policy-based segmentation
- Layer 3 routed access with OSPF, EIGRP, IS-IS and RIP
- Cloud management via the Meraki dashboard with read-only Cloud CLI
- Model-driven programmability with streaming telemetry, NETCONF and RESTCONF
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Downlink ports: 24 full PoE+ (8x mGig up to 10G, 16x up to 1G)
- Uplinks: 4x 1/10G SFP+ fixed
- Stacking: StackWise-80, 80 Gbps, up to 8 members, C9200L-STACK-KIT
- PoE budget: 370W with one PWR-C5-600WAC, 740W with a second power supply
- Default power supply: PWR-C5-600WAC, 100-240 VAC, 50-60 Hz
- Switching capacity: 272 Gbps (352 Gbps with stacking)
- Forwarding rate: 214.28 Mpps (262 Mpps with stacking)
- DRAM: 2 GB
- Flash: 4 GB
- MAC addresses: 16,000
- IPv4 routing entries: 3,000
- IPv6 routing entries: 1,500
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Fans: fixed redundant
- Dimensions (H x W x D): 4.4 x 44.5 x 35.0 cm
- Weight: 5.44 kg
- Operating temperature: -5 to 45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Power consumption: 115.2 W at 100% traffic (115VAC)
FAQs
Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.
Q: What PoE budget does it provide?
A: A single PWR-C5-600WAC supply gives a 370W PoE budget, and fitting a second supply raises it to 740W. The DC supply PWR-C5-715WDC= is also supported.
Q: Can it be stacked with other Catalyst 9200 switches?
A: It stacks only with other C9200L models at the same licence level, using the C9200L-STACK-KIT. It does not stack with modular C9200 or C9200CX switches. Up to 8 members are supported at 80 Gbps.
Q: What can I connect to the multigigabit ports?
A: The 8 mGig ports run at up to 10G and deliver full PoE+, which suits Wi-Fi 6/6E access points. The other 16 ports run at up to 1G.
Q: Which uplinks does it have and what optics does it use?
A: It has 4x 1/10G SFP+ fixed uplinks that accept SFP and SFP+ optics listed in the Cisco TMG compatibility matrix.
