Lenovo TS150 | ThinkServer TS150 Tower Server, 1-Socket Xeon E3, 4x DDR4
SKU:TS150
Stock Status: Enquire
Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Custom Built Servers
Need a different spec, quantity or configuration?
We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.
Configure your server now →
Description
Description

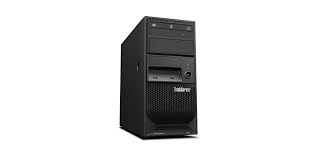

The ThinkServer TS150 is an entry-level single-socket tower server, also rackable as a 4U unit, aimed at small and medium businesses, branch and remote offices and retail environments. It suits office applications, web, email, and file and print serving.
It takes one Intel Xeon E3-1200 v5 or v6 processor (up to the E3-1280 v6 at 3.9GHz), or a Core i3, Pentium or Celeron, on the Intel C236 chipset. Four DDR4 UDIMM slots support up to 64GB of ECC memory at speeds up to DDR4-2400. Storage options include up to four 3.5in drives or up to five 2.5in drives, all non-hot-swap, with onboard RAID121i SATA RAID or an optional RAID520i PCIe 12Gb SAS/SATA controller. Networking is a single Gigabit Ethernet port (Intel i219LM), and four PCIe 3.0 slots handle expansion. Power comes from one fixed 250W 80 PLUS Bronze or 400W 80 PLUS Platinum supply.
The optional RAID520i, SD module, internal USB RDX tape drive and NVIDIA Quadro NVS 315 or K620 graphics are supported. It runs Windows Server 2016, 2012 R2 and 2012, RHEL 6.7 and 7.2, SLES 11 and 12, and VMware ESXi 5.5U3 and 6.0U2.
Enquire with XS Network Tech for Configured to order Used servers.
Features
Features
- Intel Xeon E3-1200 v6 processors with up to 4 cores, 3.9GHz and 8MB cache
- Intel Turbo Boost 2.0, Hyper-Threading and Virtualization Technology
- ECC UDIMM memory protection for improved uptime
- Choice of onboard SATA RAID or hardware RAID
- Intel Active Management Technology for remote monitoring and recovery
- UEFI with EasyStartup, EasyUpdate and Diagnostics tools
- Tool-less cover removal
- Low-noise design suited to office environments
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: Tower or 4U rack
- Dimensions (H x W x D): 375 x 175 x 431 mm
- Weight: Maximum configuration 12.5 kg
- Processor: One Intel Xeon E3-1200 v5/v6, Core i3, Pentium or Celeron (up to E3-1280 v6, 4C/3.9GHz/8MB/72W)
- Chipset: Intel C236
- Memory: 4 x DDR4 UDIMM slots, 2 channels, up to DDR4-2400
- Memory capacity: Up to 64GB (4 x 16GB), ECC
- Drive bays: Up to four 3.5in or hybrid 3.5in + 2.5in drives, or up to five 2.5in drives, non-hot-swap
- RAID: Onboard RAID121i SATA (0/1/5/10) or optional RAID520i PCIe 12Gb SAS/SATA
- Network: 1 x Gigabit Ethernet (Intel i219LM)
- Expansion slots: 4 x PCIe 3.0 (2 x16 physical, 2 x1)
- Power supply: One fixed 250W 80 PLUS Bronze or 400W 80 PLUS Platinum
- Graphics: Integrated Intel HD Graphics, optional NVIDIA Quadro NVS 315 or K620
- Front ports: 2 x USB 3.0
- Rear ports: 1 x VGA, 1 x DisplayPort, 6 x USB 3.0, 1 x RJ-45, 1 x serial, 3 x analog audio
- Security: Power-on and administrator password, TPM 1.2
- Noise: Operating below 35 dB(A), idle below 34 dB(A)
- Operating temperature: 10 to 35 C
- Operating humidity: 8% to 80% non-condensing
FAQs
Q: Does the TS150 need a licence or subscription?
A: No licence or subscription is required for the hardware. An operating system is not included on standard models, so you will need to supply your own. RAID 5 on the optional RAID520i needs an optional key.
Q: What power supply does the TS150 use?
A: It uses one fixed supply, either 250W 80 PLUS Bronze or 400W 80 PLUS Platinum, with autosensing input. It is non-redundant and not hot-swappable.
Q: Are the drive bays hot-swappable?
A: No. All drive bays are non-hot-swap. The server holds up to four 3.5in drives or up to five 2.5in drives.
Q: Which operating systems does it support?
A: Supported systems include Windows Server 2016, 2012 R2 and 2012, RHEL 6.7 and 7.2, SLES 11 and 12, and VMware ESXi 5.5U3 and 6.0U2.
Q: What RAID options are available?
A: Onboard RAID121i provides 6Gbps SATA RAID 0, 1, 5 and 10. The optional RAID520i PCIe 12Gb SAS/SATA controller supports RAID 0, 1 and 10, with RAID 5 available using an optional key.
