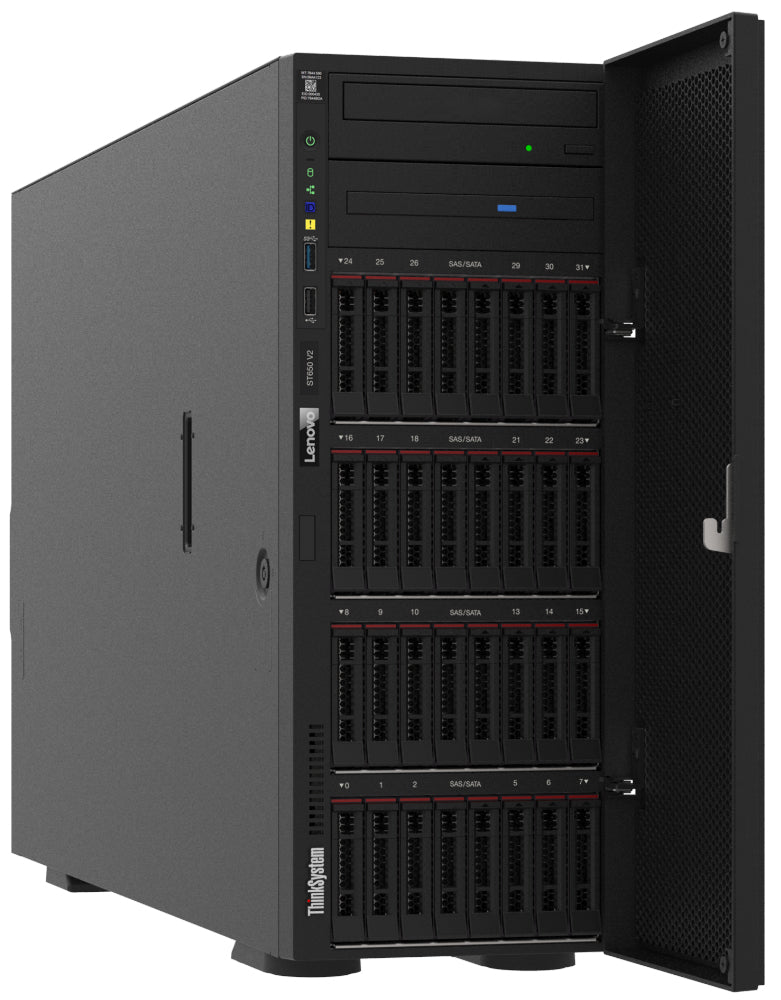

Lenovo ST650-V2 | ThinkSystem ST650 V2 Dual Xeon Tower Server, 32x 2.5-inch

SKU:ST650-V2

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

 Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The ThinkSystem ST650 V2 is a scalable dual-socket 4U tower server that can also be rack mounted. It is built on third-generation Intel Xeon Scalable processors and suits office and remote-office deployments, databases, virtualisation, VDI, web serving, collaboration and edge AI and analytics workloads.

This base CTO platform supports one or two Ice Lake processors with up to 36 cores, up to 3.6 GHz and up to 250W TDP. There are 32 DDR4 DIMM slots for up to 4TB of TruDDR4 memory at up to 3200 MHz, with support for up to 16 Intel Optane Persistent Memory 200 Series modules. The chassis is available with up to 32x 2.5-inch hot-swap bays (16x NVMe) or up to 16x 3.5-inch hot-swap bays (8x NVMe). Expansion includes up to nine PCIe slots (eight PCIe 4.0 and one optional PCIe 3.0) and support for up to eight single-wide or four double-wide GPUs. Networking is 2x onboard 10GBASE-T RJ45 ports plus a dedicated 1GbE XClarity Controller management port.

It accepts up to two hot-swap redundant 80 PLUS Platinum or Titanium power supplies from 750W to 2400W, and works with Broadcom 12Gb SAS/SATA RAID adapters and HBAs, M.2 boot adapters and LTO, RDX or DVD-RW media bays. Supported operating systems include Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi.

Enquire with XS Network Tech for Configured to order Used servers.

Features

- Dual-socket 3rd Gen Intel Xeon Scalable performance in a 4U tower with a rack-convertible option
- PCIe 4.0 I/O expansion with up to nine slots
- Multi-GPU support (8 single-wide or 4 double-wide) for AI and analytics at the edge
- Up to 16 NVMe drives for high-throughput storage
- Office-optimised design with quiet operation and physical security including an optional lockable bezel and chassis intrusion switch
- Lenovo ThinkShield security with TPM 2.0
- XClarity Controller with Redfish API support for integrated management
- Hot-swap redundant power supplies and fans with Predictive Failure Analysis

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: Tower or 4U rack
- Processor: One or two 3rd Gen Intel Xeon Scalable (Ice Lake), up to 36 cores, up to 3.6 GHz, up to 250W TDP
- Chipset: Intel C621A (Lewisburg), Whitley platform
- Memory: 32 DIMM slots (16 per processor), 8 channels per processor, 2 DPC
- Memory type: TruDDR4 RDIMM and 3DS RDIMM, up to 3200 MHz at 2 DPC
- Memory maximum: Up to 4TB with 32x 128GB 3DS RDIMMs
- Persistent memory: Up to 16x Intel Optane Persistent Memory 200 Series modules (8 per processor)
- Memory protection: ECC, SDDC, ADDDC (requires Platinum or Gold processors), memory mirroring
- Drive bays: Up to 32x 2.5-inch hot-swap (16x NVMe) plus 2x 5.25-inch media bays
- Alternative drive bays: Up to 16x 3.5-inch hot-swap (8x NVMe) with no media bays
- Internal boot storage: Internal M.2 module supporting up to two M.2 drives
- Storage controller: 12x onboard SATA (Intel VROC SATA RAID), up to 8x onboard NVMe ports
- RAID and HBA adapters: 12Gb SAS/SATA, 8/16/32 ports, up to 8GB flash-backed cache
- Media bays: Two half-height 5.25-inch (LTO tape, RDX or slim DVD-RW)
- Network interfaces: 2x onboard 10GBASE-T RJ45 (Broadcom BCM57416)
- Management port: 1x dedicated 1GbE RJ-45 XCC
- PCIe expansion: Up to 9 slots, 8x PCIe 4.0 plus 1x optional PCIe 3.0, full-height full-length
- GPU support: Up to 8x single-wide or 4x double-wide GPUs
- Ports (front): 1x USB 3.2 G1, 1x USB 2.0
- Ports (rear): 4x USB 3.2 G1, 1x VGA, 1x DB-9 COM serial, external diagnostics port
- Cooling: Up to 4x hot-swap 92 mm fans (N+1 redundant)
- Power supply: Up to 2x hot-swap redundant AC, 80 PLUS Platinum or Titanium, 750W, 1100W, 1800W or 2400W
- Video: G200 graphics, 16MB, up to 1920x1200 at 60Hz
- Security: TPM 2.0, power-on and administrator passwords
- Dimensions (W x H x D): 175 x 462 x 734 mm
- Weight: 39.28 kg maximum (2.5-inch configuration), 46.23 kg maximum (3.5-inch configuration)

FAQs

Q: Does the ST650 V2 need a licence to operate?
A: No licence is needed to run the server. XClarity Controller Standard is embedded, and XCC Advanced or Enterprise upgrades are optional for remote control functions. Intel VROC NVMe RAID needs an optional licence when using non-Intel NVMe SSDs.

Q: What power supplies does it use?
A: It takes up to two hot-swap redundant AC power supplies in 750W, 1100W, 1800W or 2400W ratings, 80 PLUS Platinum or Titanium. The 750W and 1100W units also support 110V input, while the others need 220V.

Q: What is the difference between the 7Z74 and 7Z75 machine types?
A: Both are the same base CTO platform. 7Z74 is the 3-year machine type and 7Z75 is the 1-year machine type. The chassis is available with 32x 2.5-inch or 16x 3.5-inch drive bays.

Q: Which operating systems and storage controllers are supported?
A: Supported operating systems include Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi. Storage options include Broadcom 12Gb SAS/SATA RAID adapters and HBAs, onboard SATA and NVMe ports, and an M.2 boot module.

Q: Can it be installed in a rack?
A: Yes. It is a tower server that is also rack-installable as a 4U unit.
