Lenovo

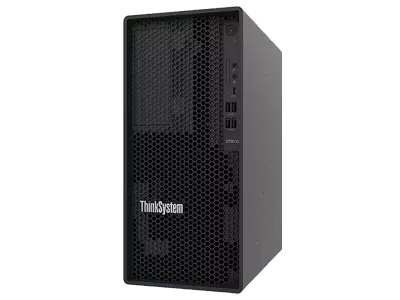

Lenovo ST50-V2 | ThinkSystem ST50 V2 1-Socket Xeon E Tower Server

SKU:ST50-V2

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

 Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The ThinkSystem ST50 V2 is an entry-level, single-socket tower server built for small businesses, home offices, retail sites, schools and branch offices. It is compact at about 17 litres and designed to be quiet enough to sit under or beside a desk, making it a practical first server for file and print, light virtualisation and local applications.

This 1-socket tower takes one Intel Xeon E-2300 series processor of up to 8 cores and 3.7 GHz, or an Intel Pentium G6405, G6505 or G6605. Four DIMM slots accept up to 128 GB of TruDDR4 3200 MHz ECC UDIMM memory, running at 2666 MHz with Pentium. Storage is up to three non-hot-swap bays (two 3.5-inch and one 2.5-inch) plus an NVMe M.2 boot drive, with onboard SATA RAID 0/1/5 or an optional RAID 5350-8i adapter. Expansion comes from three PCIe slots, and a single integrated Gigabit Ethernet port handles networking. Power is a single fixed 300W 80 PLUS Gold or 500W 80 PLUS Platinum supply.

Management uses Intel AMT 15.0 and XClarity Provisioning Manager Lite, with TPM 2.0 for security. It supports Windows Server, Red Hat Enterprise Linux and VMware ESXi, and an optional rack mount kit allows rack installation.

Enquire with XS Network Tech for Configured to order Used servers.

Features

- Compact, quiet tower of about 17 litres suited to office environments
- ECC memory protection for 24x7 operation
- Tool-less cover removal for access to memory and adapters
- Onboard SATA RAID or optional hardware RAID adapters for data protection
- Intel AMT 15.0 for remote monitoring, alerting and recovery
- Integrated UEFI and TPM 2.0 for platform security
- Intelligent Cooling Engine thermal monitoring
- Optional NVIDIA GPU support and rack mount kit

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: Tower, rack mountable with optional kit
- Processor: 1 x Intel Xeon E-2300 series, up to 8 cores, up to 3.7 GHz
- Alternative processors: Intel Pentium G6405, G6505 or G6605, 2 cores, up to 4.3 GHz
- Chipset: Intel C256
- Memory: 4 x DIMM slots, TruDDR4 3200 MHz ECC UDIMM (2666 MHz with Pentium)
- Maximum memory: 128 GB using 4 x 32 GB UDIMMs
- Drive bays: Up to 3 non-hot-swap (2 x 3.5-inch, 1 x 2.5-inch)
- Boot storage: 1 x NVMe M.2 drive on system board
- Storage controller: Onboard SATA with Intel RSTe RAID 0/1/5
- Optional controllers: RAID 5350-8i, 4350-8i SAS/SATA 12Gb HBA
- Network: 1 x integrated Gigabit Ethernet RJ-45 (Intel I219-LM)
- PCIe slots: 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1, 1 x PCIe 3.0 x4
- Front ports: 5 x USB (1 x USB 3.2 G2 Type-C), microphone and headset ports
- Rear ports: 4 x USB 3.2 G1, 2 x DisplayPort, 1 x RJ-45, 1 x serial, 1 x audio line-out
- Video: 2 x DisplayPort, up to 3840 x 2160 at 60 Hz with integrated graphics
- Power supply: Fixed 300W 80 PLUS Gold or 500W 80 PLUS Platinum
- Optical drive: Optional slim DVD-RW
- Management: Intel AMT 15.0, XClarity Provisioning Manager Lite
- Security: TPM 2.0, optional chassis intrusion switch, padlock loop, Kensington slot
- Dimensions (W x H x D): 170 x 376 x 316 mm
- Weight: Up to 9.4 kg

FAQs

Q: Does the ST50 V2 need a licence to run?
A: No licence is needed to operate the hardware. The operating system, such as Windows Server, Red Hat Enterprise Linux or VMware ESXi, is licensed separately.

Q: What power supply does it use?
A: It has one fixed, non-redundant power supply of either 300W 80 PLUS Gold or 500W 80 PLUS Platinum, depending on the model. It is not hot-swappable.

Q: How much memory and storage can it hold?
A: It supports up to 128 GB of ECC DDR4 UDIMM across four slots. Storage is up to three non-hot-swap drives plus an NVMe M.2 boot drive, for up to 16 TB using two 8 TB 3.5-inch drives.

Q: Does it have a remote management controller?
A: It does not include an XClarity Controller. Remote management is provided by Intel AMT 15.0, along with XClarity Provisioning Manager Lite.

Q: What expansion options does it support?
A: Optional parts include the RAID 5350-8i adapter, 4350-8i SAS/SATA 12Gb HBA, a slim DVD-RW, a rack mount kit, a chassis intrusion switch and GPU adapters such as the NVIDIA Quadro T1000.

Q: Can I use a Pentium processor, and what changes?
A: Yes. Pentium processors limit memory speed to 2666 MHz and run PCIe slot 1 at PCIe 3.0 rather than 4.0.
