Lenovo ST50 | ThinkSystem ST50 1-Socket Tower Server, ECC, 4x 3.5in
SKU:ST50
Stock Status: Enquire
Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Custom Built Servers
Need a different spec, quantity or configuration?
We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.
Configure your server now →
Description
Description

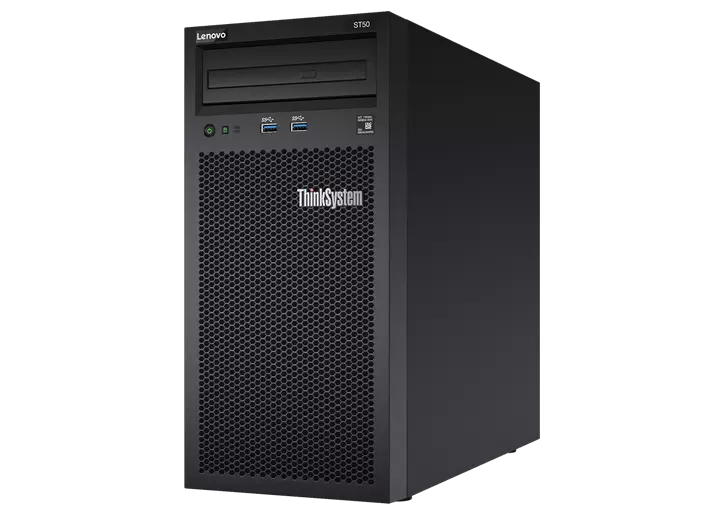

The ThinkSystem ST50 is an entry-level single-socket compact tower server built for small businesses, home offices, retail sites, educational institutions and branch offices. It is quiet and compact enough to sit under or beside an office desk, which suits office-friendly file, print and light application serving.
It supports one Intel Xeon E-2200 processor (up to 6 cores and 4.0 GHz), or a Core i3, Pentium or Celeron alternative, on the Intel C246 chipset. Four DIMM slots take TruDDR4 2666 MHz ECC UDIMMs up to 64 GB. Storage is up to four 3.5-inch non-hot-swap bays, managed by onboard SATA with AHCI or Intel RSTe RAID 0/1/10/5, or by optional RAID 530i, 730-8i, 930-8i and 940-8i controllers. Networking is one integrated Gigabit Ethernet port, with three PCIe 3.0 slots (x16, x1 and x4) for expansion. Power comes from a fixed 250W or 400W 80 PLUS Platinum supply, and the 400W option removes GPU restrictions.
The hardware needs no licence. Intel AMT 12.0 is built in for remote management, and the server supports Windows Server, Red Hat Enterprise Linux and VMware ESXi. An optional Rack Mount Kit allows rack installation.
Enquire with XS Network Tech for Configured to order Used servers.
Features
Features
- ECC UDIMM memory protection for higher uptime than PC-class servers
- Intel Active Management Technology 12.0 for remote monitoring and recovery
- Choice of onboard SATA RAID or optional hardware RAID controllers
- Tool-less cover removal for easy access to memory and adapters
- 80 PLUS Platinum power supply and Intelligent Cooling Engine for quiet, efficient operation
- Compact tower design suited to sitting under or beside an office desk
- Hardware TPM 1.2/2.0 with optional chassis intrusion switch, padlock loop and Kensington lock slot
- Intel SGX support on select Xeon E-2274G, E-2276G and E-2286G processors
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: Tower, rack-mountable with optional Rack Mount Kit
- Processor: 1 x Intel Xeon E-2200, Core i3, Pentium or Celeron
- Xeon option: up to 6 cores and 4.0 GHz
- Chipset: Intel C246
- Memory: 4 DIMM slots, TruDDR4 2666 MHz ECC UDIMM
- Maximum memory: 64 GB (4 x 16 GB)
- Drive bays: up to 4 x 3.5-inch non-hot-swap
- Maximum internal storage: 32 TB HDD or 3.84 TB SSD
- Storage controller: onboard 6 Gb SATA, AHCI or Intel RSTe RAID 0/1/10/5
- Optional RAID: RAID 530i, 730-8i, 930-8i, 940-8i
- Optional HBA: HBA 430-8i, 440-8i
- Network: 1 x Gigabit Ethernet 1000BASE-T RJ-45, Intel i219-LM
- PCIe expansion: PCIe 3.0 x16, x1 and x4 slots, all full-height half-length
- Front ports: 2 x USB 3.1 G1
- Rear ports: 2 x USB 3.1 G1, 2 x USB 2.0, 2 x DisplayPort, 1 x serial, 1 x audio line-out
- Video: integrated Intel Graphics, up to 3840 x 2160 at 60 Hz
- Power supply: fixed 250W or 400W, 80 PLUS Platinum, 100-240V autosensing
- Management: Intel AMT 12.0, XClarity Provisioning Manager Lite
- Security: TPM 1.2/2.0, optional chassis intrusion switch, padlock loop, Kensington lock slot
- Dimensions (W x H x D): 175 x 376 x 424 mm
- Weight: 7.5 kg minimum, 11.2 kg maximum
- Operating temperature: 10 to 35 C, humidity 8 to 80%
FAQs
Q: Does the ThinkSystem ST50 need a licence?
A: The hardware needs no licence. Intel AMT 12.0 is built in and XClarity Provisioning Manager Lite is included. An operating system is a separate purchase.
Q: What power supply does it use and can it take a GPU?
A: It has one fixed 250W or 400W 80 PLUS Platinum supply, 100-240V autosensing. GPU adapters are supported only with the 400W supply, as the 250W supply does not support GPUs.
Q: How much memory does it support and what type?
A: It has four DIMM slots for Lenovo TruDDR4 2666 MHz ECC UDIMMs, up to 64 GB using 4 x 16 GB modules.
Q: Which RAID options are available?
A: Onboard SATA supports AHCI or Intel RSTe software RAID 0/1/10/5. Optional hardware controllers are the RAID 530i, 730-8i, 930-8i and 940-8i, plus HBA 430-8i and 440-8i.
Q: Can the ST50 be installed in a rack?
A: Yes. It is a tower server, and the optional Rack Mount Kit allows rack installation.
Q: Which operating systems are supported?
A: It supports Microsoft Windows Server, Red Hat Enterprise Linux and VMware ESXi.
