Lenovo SR950 | ThinkSystem SR950 4U Server, 8-Socket, 24TB DDR4
SKU:SR950
Stock Status: Enquire
Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Custom Built Servers
Need a different spec, quantity or configuration?
We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.
Configure your server now →
Description
Description

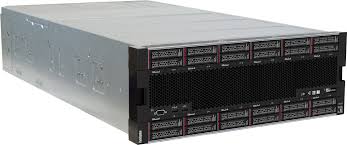

The ThinkSystem SR950 is a 4U rack server built for mission-critical, CPU- and memory-intensive workloads such as in-memory databases like SAP HANA, large transactional databases, analytics and ERP. Its modular chassis scales from two to eight Intel Xeon Scalable processors and gives front and rear access to major subsystems for serviceability.
This 8-socket configuration supports up to eight Xeon Platinum processors (or up to four Gold) with up to 28 cores and up to 205W TDP each. Memory scales to 96 DIMM sockets and up to 24TB of TruDDR4 using 96x 256GB 3DS RDIMMs at up to 2933 MHz. Intel Optane DC Persistent Memory is also supported, with up to 48 modules and up to 36TB of total memory. Storage is up to 24x 2.5-inch hot-swap SAS/SATA bays, 12 of which can take NVMe drives through AnyBay backplanes. Expansion includes up to 17 PCIe 3.0 slots plus one or two ML2 slots, and an integrated Intel X722 10Gb controller. Power comes from up to four redundant hot-swap 1100W or 1600W 80 PLUS Platinum supplies.
XClarity Controller Enterprise functionality is included as standard. The server supports Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi, with operating system licences supplied separately.
Enquire with XS Network Tech for Configured to order Used servers.
Features
Features
- Scales from 2 to 8 processors by adding compute trays and system boards
- Supports 2nd Gen Intel Xeon Scalable processors, including top-bin 205W parts
- Up to 24TB DDR4, with Performance+ 2933 MHz DIMMs for 2 DIMMs per channel at full speed
- Supports Intel Optane DC Persistent Memory
- Up to 24x 2.5-inch drive bays, 12 of which can be NVMe via AnyBay
- Modular design with front and rear access to major subsystems
- Hot-swap redundant drives, power supplies and fans
- XClarity Controller Enterprise functionality as standard, with XClarity Administrator integration
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 4U rack
- Processors: Up to 8x Intel Xeon Platinum or up to 4x Gold Scalable, up to 28 cores, up to 3.8 GHz, up to 205W TDP
- Chipset: Intel C624
- Memory slots: Up to 96 DIMM sockets, 12 per processor
- Memory type: TruDDR4 RDIMM, LRDIMM and 3DS RDIMM, 2666 MHz or 2933 MHz
- Maximum memory: 24TB DDR4 (96x 256GB 3DS RDIMM)
- Persistent memory: Up to 48 Intel Optane DC Persistent Memory modules, up to 36TB total memory in AppDirect mode
- Memory protection: ECC, SDDC (x4), ADDDC (x4), memory mirroring, memory sparing
- Drive bays: Up to 24x 2.5-inch hot-swap SAS/SATA, 12 bays NVMe-capable with AnyBay
- Maximum internal storage: 737.28TB (24x 30.72TB SAS/SATA SSD)
- RAID: No embedded RAID, optional 12Gb RAID 530i, 730-8i, 930-8i, 930-16i, 940-8i, 940-16i and SAS HBAs
- Network: Integrated Intel X722 10Gb controller, 1 LOM adapter, 1 or 2 ML2 slots
- Expansion slots: Up to 17 rear PCIe 3.0 slots (x16/x8), plus 1-2 internal PCIe 3.0 x8 slots and an M.2 adapter slot
- Front ports: 2x USB 2.0, 1x VGA
- Rear ports: 2x USB 3.0, 1x VGA, 1x DB-9 serial, 1x 1GbE RJ-45 management
- Power supplies: Up to 4x redundant hot-swap 1100W or 1600W 80 PLUS Platinum, 200-240V AC
- Cooling: Up to 12 redundant hot-swap fans, N+1 per compute tray
- Video: G200 graphics, 16MB, up to 1920x1200 at 60Hz
- Security: Power-on and administrator passwords, TPM 1.2 / 2.0
- Dimensions (W x H x D): 447 x 176 x 851 mm
- Weight: 32.6 kg minimum, 58.7 kg maximum configuration
- Operating temperature: 10 to 35 C (ASHRAE A2)
FAQs
Q: Does the SR950 include a management licence?
A: XClarity Controller Enterprise functionality is included as standard. Operating system licences are separate.
Q: What power supplies does it use?
A: It takes up to four redundant hot-swap 1100W or 1600W 80 PLUS Platinum power supplies on 200-240V AC. The 1100W units also accept 100-127V AC at a reduced 1050W capacity.
Q: Which processors and memory does it support?
A: It supports 2nd Gen Intel Xeon Platinum and Gold Scalable processors and TruDDR4 RDIMM, LRDIMM and 3DS RDIMM modules. Intel Optane DC Persistent Memory is also supported.
Q: Can it use NVMe drives?
A: Yes. With AnyBay backplanes, 12 of the 24 front 2.5-inch bays can take PCIe NVMe drives. The remaining bays are SAS/SATA.
Q: Does it have built-in RAID?
A: No. RAID is provided by optional Lenovo 12Gb RAID adapters, and SAS HBAs are available for pass-through storage.
Q: Which operating systems are supported?
A: Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi.
