Lenovo SR860-V3 | ThinkSystem SR860 V3 4U 4-Socket Rack Server, Xeon
SKU:SR860-V3
Stock Status: Enquire
Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Custom Built Servers
Need a different spec, quantity or configuration?
We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.
Configure your server now →
Description
Description
The ThinkSystem SR860 V3 is a 4U, 4-socket rack server in the ThinkSystem V3 family, built on 4th Gen Intel Xeon Scalable processors. It is aimed at mission-critical workloads such as SAP HANA in-memory computing, transactional databases, analytics, deep learning and high virtual machine density, and suits server consolidation and GPU-accelerated AI and HPC deployments.
It scales from two to four Gold or Platinum processors with up to 60 cores and TDP up to 350W, linked in a mesh topology with three UPI links. Memory runs to 64 DIMM slots and up to 16TB of TruDDR5 at up to 4800 MHz. Storage supports up to 48 x 2.5-inch hot-swap bays, including up to 24 direct-connect AnyBay NVMe drives. Expansion offers up to 18 PCIe slots plus two OCP 3.0 SFF slots at PCIe 5.0 x16, and up to four double-wide 350W GPUs or eight single-wide 75W GPUs. Up to four hot-swap redundant power supplies from 1100W to 2600W, 80 PLUS Platinum or Titanium, support N+N redundancy.
This is the 4U 4-socket base platform, sold configure-to-order under machine types 7D93, 7D94 and 7D95 (SAP HANA). Management is handled by Lenovo XClarity Controller 2 with XCC2 Platinum included, and no licence is needed to operate the server.
Enquire with XS Network Tech for Configured to order Used servers.
Features
Features
- Start with two processors and upgrade to four, with a mesh topology and three UPI links between CPUs
- Embedded Intel accelerators (QAT, DLB, IAA, DSA) and Intel AMX
- Up to 24 direct-connect NVMe drives over PCIe Gen5 x4 without retimers or switches
- Two dedicated OCP 3.0 slots for 1/10/25/100 GbE networking
- CXL v1.1 ready
- XCC2 Platinum as standard: remote KVM, remote media mounting, boot capture and power capping
- Hot-swap drives, fans and power supplies with Predictive Failure Analysis and light path diagnostics
- Platform Firmware Resiliency hardware Root of Trust, TPM 2.0, Secure Boot and self-encrypting drive support
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 4U rack
- Machine types: 7D93, 7D94, 7D95 (SAP HANA configurations)
- Processor: Two or four 4th Gen Intel Xeon Scalable (Gold or Platinum), up to 60 cores, up to 3.7 GHz
- Processor TDP: Up to 350W
- Processor interconnect: 3 UPI links at 16 GT/s, mesh topology
- Chipset: Intel C741
- Memory slots: Up to 64 DIMM slots (16 per CPU, 8 channels, 2 DPC)
- Memory type: TruDDR5 RDIMM and 3DS RDIMM
- Memory speed: 4800 MHz at 1 DPC, 4400 MHz at 2 DPC
- Memory maximum: Up to 16TB with 64 x 256GB 3DS RDIMMs
- Persistent memory: Up to 32 x Intel Optane PMem 300 Series modules (App Direct mode)
- Drive bays: Up to 48 x 2.5-inch hot-swap (up to 24 AnyBay/NVMe)
- Rear boot bays: Optional 2 x 7mm hot-swap
- Storage controllers: Up to 24 onboard PCIe Gen5/Gen4 NVMe ports (Intel VROC), 12Gb SAS/SATA RAID and HBA adapters
- Network interfaces: 2 x dedicated OCP 3.0 SFF slots, PCIe 5.0 x16, up to 100 GbE

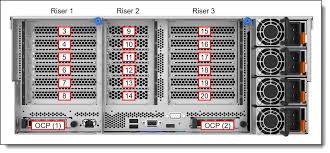

- PCIe expansion: Up to 18 slots plus 2 x OCP 3.0 slots
- GPU support: Up to 8 x single-wide or 4 x double-wide GPUs
- Front ports: 1 x VGA, 1 x USB 3.2 G1, 1 x USB 2.0
- Rear ports: 3 x USB 3.2 G1, 1 x VGA, 1 x DB-9 serial, 1 x RJ-45 XCC management
- Cooling: 12 x N+1 redundant hot-swap 60 mm fans
- Power supplies: Up to 4 hot-swap redundant AC PSUs, 1100W to 2600W, 80 PLUS Platinum or Titanium
- Management: XClarity Controller 2 with XCC2 Platinum included
- Security: TPM 2.0, PFR hardware Root of Trust, chassis intrusion switch
- Dimensions (W x H x D): 447 x 175 x 906 mm
- Weight: Up to 59.4 kg maximum
FAQs
Q: Does the SR860 V3 need a licence to operate?
A: No licence is needed to operate the server. XClarity Controller 2 Platinum is included as standard. Optional extras such as Intel VROC NVMe RAID and IBM SKLM for self-encrypting drives are licensed separately.
Q: What power supplies does it use?
A: It takes up to four hot-swap redundant AC power supplies rated 1100W to 2600W, 80 PLUS Platinum or Titanium, with N+N redundancy supported. 220V AC is used, and the 1100W units also accept 110V.
Q: What memory does it support?
A: It supports TruDDR5 RDIMM and 3DS RDIMM only, up to 64 DIMMs and 16TB, at up to 4800 MHz at 1 DPC. UDIMM and LRDIMM are not supported.
Q: Can it be fitted with GPUs?
A: Yes, it supports up to four double-wide 350W GPUs or eight single-wide 75W GPUs. GPU support requires the BT2K chassis base, and the winged heatsink needed for GPUs limits processors to 270W TDP or less.
Q: Which processors are supported?
A: It supports 4th Gen Intel Xeon Gold 6416H, 6418H, 6434H and 6448H, and Platinum 8444H, 8450H, 8454H, 8460H, 8468H and 8490H, in two or four socket configurations.
Q: What do the machine types 7D93, 7D94 and 7D95 mean?
A: They are configure-to-order variants of the same 4U 4-socket platform. 7D93 and 7D94 are standard configurations, while 7D95 covers SAP HANA configurations.
