Lenovo SR860-V2 | ThinkSystem SR860 V2 4U 4-Socket Rack Server, Xeon
SKU:SR860-V2
Stock Status: Enquire
Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Custom Built Servers
Need a different spec, quantity or configuration?
We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.
Configure your server now →
Description
Description

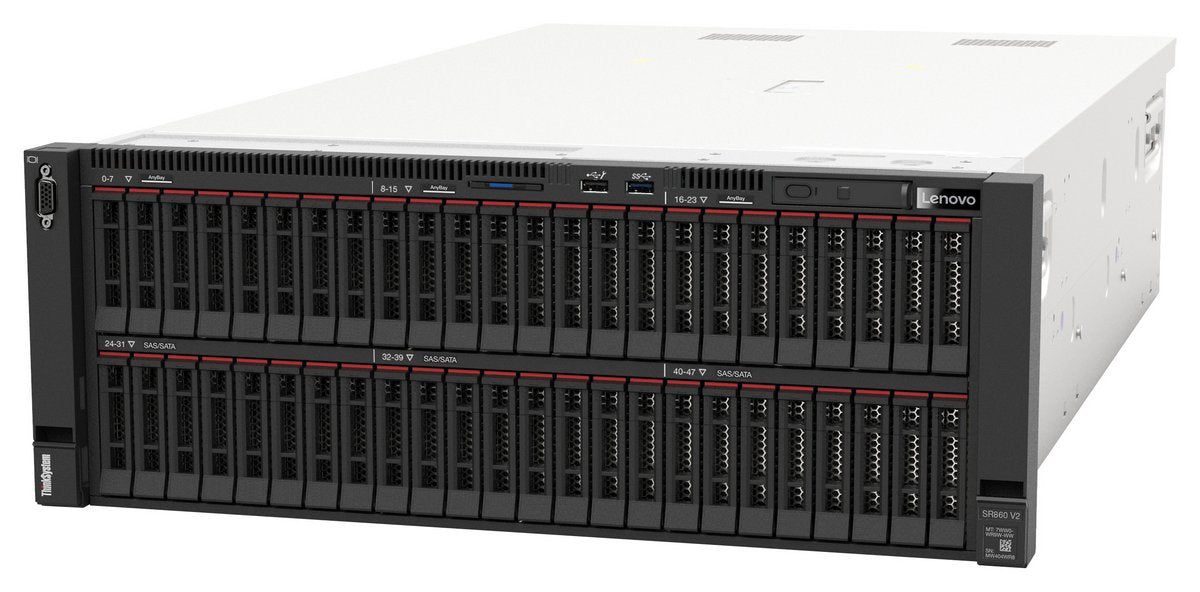

The ThinkSystem SR860 V2 is a 4U, 4-socket rack server built around 3rd Gen Intel Xeon Scalable (Cooper Lake H/HL) processors with support for Intel Optane Persistent Memory 200 Series. It is aimed at mission-critical workloads such as SAP HANA in-memory computing, transactional databases, deep learning, analytics and high virtual machine density.
It scales from two to four Gold or Platinum H/HL processors with up to 28 cores and up to 250W TDP each, linked by six UPI links at 10.4 GT/s in a mesh topology. A two-processor build provides 24 DIMM slots, and the Processor and Memory Expansion Tray extends this to four processors and 48 DIMM slots, supporting up to 12TB of TruDDR4 3DS RDIMM at up to 3200MHz. Up to 24 Optane PMem 200 Series modules can be fitted in App Direct mode. Storage runs to 48 hot-swap 2.5-inch bays, including up to 24 NVMe, and expansion includes up to 14 PCIe 3.0 slots plus a dedicated OCP 3.0 slot, with room for up to four double-wide or eight single-wide GPUs. Up to four hot-swap redundant 750W, 1100W or 1800W power supplies can be configured N+1 or N+N.
It works with Lenovo RAID 530/930/940 and HBA 430/440 storage adapters, NVIDIA V100S and T4 GPUs, and Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi. XClarity Controller Enterprise is standard for remote management.
Enquire with XS Network Tech for Configured to order Used servers.
Features
Features
- Start with two processors and 24 DIMM slots, then expand to four processors and 48 DIMM slots with the Processor and Memory Expansion Tray
- Six-UPI mesh topology for faster processor-to-processor communication
- Supports Enhanced Intel Deep Learning Boost with bfloat16, AVX-512 and Intel Speed Select
- Up to 24 NVMe drives with Intel VROC NVMe RAID support
- Dedicated OCP 3.0 slot with tool-less adapter installation
- Light path diagnostics and integrated LCD diagnostics panel with proactive platform alerts
- Hardware root-of-trust features including TPM 2.0, Secure Boot, Intel TXT and AES-NI
- XClarity Controller Enterprise as standard for remote KVM, remote media and power capping
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 4U rack
- Sockets: 4-socket, runs with 2 or 4 processors
- Processor: 3rd Gen Intel Xeon Scalable Gold or Platinum H/HL (Cooper Lake), up to 28 cores, up to 3.9 GHz
- Processor TDP: up to 250W
- Processor interconnect: six UPI links at 10.4 GT/s, mesh topology
- Chipset: Intel C621A
- Memory slots: up to 48 DDR4 DIMM slots (12 per processor, 6 channels, 2 DPC)
- Memory type: Lenovo TruDDR4 RDIMM and 3DS RDIMM, up to 3200 MHz at 2 DPC
- Maximum memory: up to 12TB with 48x 256GB 3DS RDIMM
- Persistent memory: up to 24x Intel Optane Persistent Memory 200 Series, App Direct mode
- Memory protection: ECC, SDDC, ADDDC, memory mirroring
- Drive bays: up to 48x 2.5-inch hot-swap, up to 24 NVMe or AnyBay
- Optional rear storage: two 7mm hot-swap SATA/NVMe SSD bays, or M.2 boot adapter
- Onboard storage: 8x SATA and up to 16x NVMe with Intel VROC
- Network: dedicated OCP 3.0 SFF slot (PCIe 3.0 x16) for 1GbE, 10GbE or 25GbE adapters
- PCIe expansion: up to 14x PCIe 3.0 slots plus OCP 3.0 slot
- GPU support: up to 4x double-wide or 8x single-wide
- Front ports: 1x VGA, 1x USB 3.2 G1, 1x USB 2.0
- Rear ports: 2x USB 3.2 G1, 1x VGA, 1x DB-9 serial, 1x RJ-45 XCC management
- Power supplies: up to 4x hot-swap redundant 750W, 1100W or 1800W, 80 PLUS Platinum or Titanium
- Cooling: eight N+1 redundant hot-swap 60mm fans
- Security: TPM 2.0, chassis intrusion switch, lockable top cover
- Dimensions (W x H x D): 447 x 175 x 807 mm
- Weight: up to 62 kg
FAQs
Q: Does the SR860 V2 need a licence for remote management?
A: Lenovo XClarity Controller Enterprise is standard, giving remote KVM, remote media mounting, boot capture and power capping. Intel VROC NVMe RAID needs an optional licence when used with non-Intel NVMe SSDs.
Q: What power supplies can it use?
A: It takes up to four hot-swap redundant AC power supplies in 750W, 1100W or 1800W ratings, 80 PLUS Platinum or Titanium, configurable N+1 or N+N. The 750W and 1100W units also accept 110V input, while the 1800W units require 220V.
Q: Which processors and memory does it support?
A: It supports Intel Xeon Scalable Gold 5318H, 5320H, 6328H, 6330H and 6348H, and Platinum 8353H, 8354H, 8356H, 8360H, 8376H and 8380H processors. Memory is TruDDR4 16/32/64GB RDIMM and 128/256GB 3DS RDIMM, plus Intel Optane PMem 200 Series in 128/256/512GB modules.
Q: Can it run with only two processors?
A: Yes. It can be run with two processors and 24 DIMM slots, then upgraded to four processors and 48 DIMM slots. Slots 1-4 and 9-12 require four processors.
Q: Which GPUs and operating systems are supported?
A: It supports up to four NVIDIA V100S double-wide or eight NVIDIA T4 single-wide GPUs. Supported operating systems are Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi, with persistent memory requiring SLES 15 SP2 or later.
