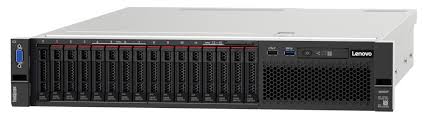

Lenovo SR850P | ThinkSystem SR850P 4-Socket 2U Server, 16x 2.5in Bays

SKU:SR850P

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

 Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The ThinkSystem SR850P is a 4-socket, 2U rack server built on second-generation Intel Xeon Scalable processors. It is aimed at data analytics, virtualisation, dense computing, scientific applications and general business consolidation, and SAP HANA workloads on machine type 7D2H.

The four processors are linked in a mesh topology, with each CPU connected directly to the other three over Intel UPI links at 10.4 GT/s. Each CPU supports up to 28 cores and up to 205W TDP. Memory scales across 48 DIMM slots, up to 6TB of TruDDR4 or up to 15TB with Intel Optane DC Persistent Memory. Storage is 16 hot-swap 2.5-inch bays, with NVMe support on 8 of them. Expansion includes 8 rear PCIe 3.0 slots plus dedicated LOM and M.2 adapter slots, and an integrated Intel X722 10GbE controller.

Power comes from up to two hot-swap redundant 80 PLUS Platinum supplies in 750W, 1100W, 1600W or 2000W ratings. Lenovo XClarity Controller provides out-of-band management.

Enquire with XS Network Tech for Configured to order Used servers.

Features

- Mesh interconnect links each CPU directly to the other three, improving performance over the ring topology used in the SR850
- Lenovo XClarity Controller for service processor control, monitoring, remote KVM and remote drive
- Support for Intel Optane DC Persistent Memory for very large memory capacity
- Hot-swap drives, power supplies and fans with N+1 redundant cooling
- Dedicated LOM slot for 1GbE or 10GbE networking without using a PCIe slot
- Optional M.2 adapter for one or two M.2 boot drives
- Optional front VGA port and pull-out LCD panel

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: 2U rack
- Processors: 4x 2nd-gen Intel Xeon Scalable (Gold or Platinum), up to 28 cores, up to 3.8 GHz
- Processor TDP: up to 205W
- Processor interconnect: 3x Intel UPI links at 10.4 GT/s each, mesh topology
- Chipset: Intel C624
- Memory slots: 48 DIMM slots (12 per processor), 24 on the system board and 24 on the Processor and Memory Expansion Tray
- Memory type: TruDDR4 RDIMM, LRDIMM and 3DS RDIMM at 2666/2933 MHz
- Maximum memory: up to 6TB with 48x 128GB 3DS RDIMMs
- Persistent memory: up to 24 Intel Optane DC Persistent Memory modules, up to 15TB in AppDirect Mode
- Drive bays: 16x 2.5-inch hot-swap, 8x SATA/SAS and 8x SATA/SAS/NVMe
- Maximum internal storage: 491.52TB (16x 30.72TB SAS/SATA SSD)
- Optical and tape drive bays: none
- Network: integrated Intel X722 10GbE controller plus one LOM adapter (2/4-port GbE, 10GbE SFP+ or 10GbE RJ45)
- Expansion slots: 8x PCIe 3.0 at the rear, plus dedicated LOM and M.2 adapter slots
- Front ports: 2x USB 2.0, or 1x USB 2.0 and 1x USB 3.0 (model dependent), optional VGA
- Rear ports: 2x USB 3.0, 1x VGA, 1x DB-9 serial, 1x RJ-45 XCC management
- Power supplies: up to 2x hot-swap redundant 80 PLUS Platinum, 750W, 1100W, 1600W or 2000W
- Cooling: six N+1 redundant hot-swap 60 mm fans
- Video: G200 graphics with 16 MB, up to 1920x1200 at 60Hz
- Dimensions (H x W x D): 86.5 x 444.6 x 763.7 mm

FAQs

Q: Does the server include an operating system licence?
A: No operating system licence is included. Lenovo XClarity Controller Standard is built in for management.

Q: What power supplies does it use?
A: It takes up to two hot-swap redundant 80 PLUS Platinum AC supplies rated 750W, 1100W, 1600W or 2000W. The 750W and 1100W units also accept 110V input, while the 1600W and 2000W units need 220V.

Q: What memory does it support?
A: It supports TruDDR4 RDIMM, LRDIMM and 3DS RDIMM modules, plus Intel Optane DC Persistent Memory. Maximum capacity is 6TB of TruDDR4 or up to 15TB in AppDirect Mode with Optane.

Q: Which drive types can the 2.5-inch bays take?
A: All 16 bays take SAS and SATA drives, and 8 of them also support NVMe. There are no optical or tape drive bays.

Q: How does the SR850P differ from the SR850?
A: The SR850P connects its four processors in a mesh topology, with each CPU linked directly to the other three, rather than the ring topology used in the SR850.
