Lenovo

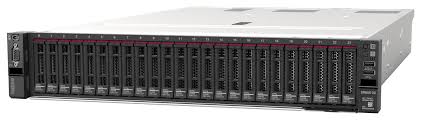

Lenovo SR850-V2 | ThinkSystem SR850 V2 4-Socket 2U Rack Server, 48 DIMM

SKU:SR850-V2

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

 Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The ThinkSystem SR850 V2 is a 4-socket, 2U rack server built on 3rd-generation Intel Xeon Scalable processors. It suits scale-up, memory-intensive workloads such as databases, virtualisation and SAP HANA, where a dense platform with large memory and NVMe capacity is needed.

The chassis supports two or four Gold or Platinum processors with up to 28 cores each and a TDP of up to 250W. A processor and memory expansion tray takes the system from 24 DIMM slots to 48, with up to 12TB of TruDDR4 memory at up to 3200MHz and support for up to 24 Intel Optane Persistent Memory 200 Series modules. Storage options run to 24 hot-swap 2.5-inch bays across SAS, SATA, NVMe and AnyBay, plus an optional pair of 7mm rear boot drives. Expansion includes up to seven PCIe 3.0 slots and a dedicated OCP 3.0 slot for 1, 10 or 25GbE networking.

It is managed through the embedded Lenovo XClarity Controller with TPM 2.0. It works with 3rd-generation Intel Xeon Scalable CPUs, TruDDR4 RDIMMs and 3DS RDIMMs, OCP 3.0 SFF Ethernet adapters and ThinkSystem PCIe RAID and HBA cards.

Enquire with XS Network Tech for Configured to order Used servers.

Features

- Processor and memory expansion tray allows an upgrade from 2 CPUs and 24 DIMMs to 4 CPUs and 48 DIMMs
- Up to four processors, 112 cores and 224 threads for multithreaded workloads
- Up to 24 NVMe drive bays for high-performance local storage
- Optional pair of 7mm hot-swap boot drives with RAID-1
- Hot-swap redundant power supplies and N+1 redundant fans for availability
- Power-source-independent light path diagnostics
- Dedicated OCP 3.0 slot for flexible 1, 10 or 25GbE networking
- Intel Optane Persistent Memory 200 Series support for SAP HANA and in-memory workloads

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: 2U rack
- Processor: 2 or 4 x 3rd-gen Intel Xeon Scalable (Gold or Platinum), up to 28 cores, TDP up to 250W
- Processor interconnect: 6 x Intel UPI links at 10.4 GT/s each
- Chipset: Intel C621A
- Memory slots: Up to 48 DIMM slots (24 on system board, 24 on expansion tray)
- Memory type: Lenovo TruDDR4 RDIMM and 3DS RDIMM, up to 3200MHz at 2 DPC
- Maximum memory: Up to 12TB
- Persistent memory: Up to 24x Intel Optane Persistent Memory 200 Series
- Drive bays: Up to 24 x 2.5-inch hot-swap (SAS, SATA, NVMe or AnyBay)
- Boot drives: Optional 2 x 7mm hot-swap SATA or NVMe SSDs, RAID-1 capable
- Network: Dedicated OCP 3.0 SFF slot, 1GbE, 10GbE or 25GbE adapters
- PCIe expansion: Up to 7 x PCIe 3.0 slots plus OCP 3.0 slot
- GPU support: Up to 2 x single-wide GPUs
- Power supplies: 2 x hot-swap redundant, 80 PLUS Platinum or Titanium, 750W, 1100W, 1800W or 2400W
- Fans: 6 x N+1 redundant hot-swap fans
- Front ports: VGA, 1 x USB 3.1, 1 x USB 2.0
- Rear ports: 2 x USB 3.1, serial, VGA, 1GbE management port
- Management: Lenovo XClarity Controller with TPM 2.0
- Dimensions (H x W x D): 86.5 x 434.4 x 880.2 mm
- Weight: 40 kg maximum

FAQs

Q: Can I start with two processors and upgrade later?
A: Yes. The server starts with two CPUs and 24 DIMM slots and expands to four CPUs and 48 DIMM slots using the processor and memory expansion tray.

Q: Which power supplies does it use?
A: It uses two hot-swap redundant AC power supplies, 80 PLUS Platinum or Titanium, in 750W, 1100W, 1800W or 2400W options. The 1100W option also supports 110V.

Q: How is the server managed?
A: It is managed through the embedded Lenovo XClarity Controller, which has a dedicated 1GbE management port. The XClarity feature tier depends on the model or optional upgrade.

Q: Which processors and memory does it support?
A: It supports 3rd-generation Intel Xeon Scalable Gold and Platinum processors (LGA 4189) and Lenovo TruDDR4 RDIMM and 3DS RDIMM memory. Intel Optane Persistent Memory 200 Series is also supported.

Q: Does it include an operating system?
A: No. No operating system is included with this server.
