Lenovo

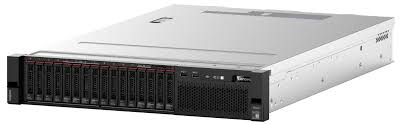

Lenovo SR850 | ThinkSystem SR850 4-Socket 2U Rack Server, 48 DIMM DDR4

SKU:SR850

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

 Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The ThinkSystem SR850 is a 2U, four-socket Intel Xeon Scalable rack server built for databases, virtualisation, server consolidation and other memory-intensive workloads. It starts with two processors and 24 DIMM slots, and a snap-in processor and memory mezzanine tray takes it to four processors and 48 DDR4 DIMM slots, so capacity can grow with the workload.

Memory scales to 6TB across 48 slots using 128GB DIMMs. Storage uses Lenovo AnyBay bays that accept up to 16 x 2.5-inch SAS or SATA drives, or up to 8 x NVMe SSDs, with optional dual M.2 boot drives to keep the front bays free for data. Expansion covers up to 9 PCIe slots, a LOM slot and an optional ML2 slot. Power comes from up to two hot-swap redundant 750W, 1100W or 1600W 80 PLUS Platinum supplies, cooled by six N+1 hot-swap fans.

The XClarity Controller is embedded for out-of-band management, and the server supports Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware vSphere. Exact CPU, memory and power supply configuration depends on the specific model part number within machine types 7X18 and 7X19.

Enquire with XS Network Tech for Configured to order Used servers.

Features

- Mezzanine design: snap-in Processor and Memory Expansion Tray adds two CPUs and 24 more DIMM slots
- Lenovo AnyBay drive bays accept SAS, SATA and NVMe devices in the same bays
- Four direct-connect NVMe ports from the motherboard, removing the need for PCIe switch adapters
- M.2 boot storage frees drive bays for data
- Enterprise-class RAS including Predictive Failure Analysis, light path diagnostics and hot-swap redundant PSUs, fans and drives
- XClarity Controller with Redfish-compliant REST APIs for embedded management
- Hardware RAID with flash cache, and HBA options up to 16 ports
- High-efficiency 80 PLUS Platinum power supplies

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: 2U rack server
- Machine types: 7X18 and 7X19
- Processors: 2 or 4 x Intel Xeon Processor Scalable family (Gold/Platinum)
- Gen 2 processors: up to 28 cores, up to 3.8 GHz, TDP up to 205W
- Chipset: Intel C624
- Memory slots: 48 x DDR4 DIMM (24 on a two-socket configuration)
- Maximum memory: up to 6TB using 128GB DIMMs
- Memory layout: 12 DIMMs per processor, 6 channels per CPU
- Drive bays: up to 16 x 2.5-inch SAS/SATA hot-swap, or up to 8 x 2.5-inch NVMe
- Boot storage: optional 2 x mirrored M.2
- Maximum internal storage: 491.52TB using 16 x 30.72TB SAS/SATA SSDs
- Expansion slots: up to 9 x PCIe, 1 x LOM, optional 1 x ML2
- Power supplies: up to 2 x hot-swap redundant 750W/1100W/1600W 80 PLUS Platinum AC
- Input voltage: 750W and 1100W support 110V, 1600W requires 220V
- Cooling: 6 x N+1 hot-swap 60mm fans
- Front ports: 2 x USB 2.0, or 1 x USB 2.0 and 1 x USB 3.0 (model dependent), optional front VGA
- Rear ports: 2 x USB 3.0, 1 x VGA, 1 x DB-9 serial, 1 x RJ-45 XCC management
- Security: TPM 1.2/2.0
- Dimensions (W x H x D): 445 x 87 x 765 mm
- Weight: 18 kg minimum, 27 kg maximum configuration

FAQs

Q: Does the SR850 need a licence to operate?
A: No licence is needed to operate the hardware. The XClarity Controller is embedded and available at Standard, Advanced and Enterprise feature levels depending on the model. XClarity Administrator is a separate virtual appliance.

Q: How do I go from two to four processors?
A: The server starts with two processors and 24 DIMM slots. Adding the snap-in Processor and Memory Expansion Tray provides the extra two processors and 24 more DIMM slots, for 48 in total.

Q: What power supplies does the SR850 use?
A: It takes up to two hot-swap redundant 80 PLUS Platinum AC power supplies in 750W, 1100W or 1600W ratings. The 750W and 1100W units accept 110V input, while the 1600W unit requires 220V. A second power supply requires the Processor and Memory Expansion Tray or a power interposer card.

Q: What storage can I fit in the front bays?
A: AnyBay bays support up to 16 x 2.5-inch SAS or SATA drives, or up to 8 x 2.5-inch NVMe SSDs. Optional dual M.2 boot drives can be used to leave the front bays free for data.

Q: Which operating systems does it support?
A: The SR850 supports Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware vSphere.

Q: What is the difference between machine types 7X18 and 7X19?
A: Both are the same ThinkSystem SR850 platform. The exact processor, memory and power supply configuration depends on the specific model part number.
