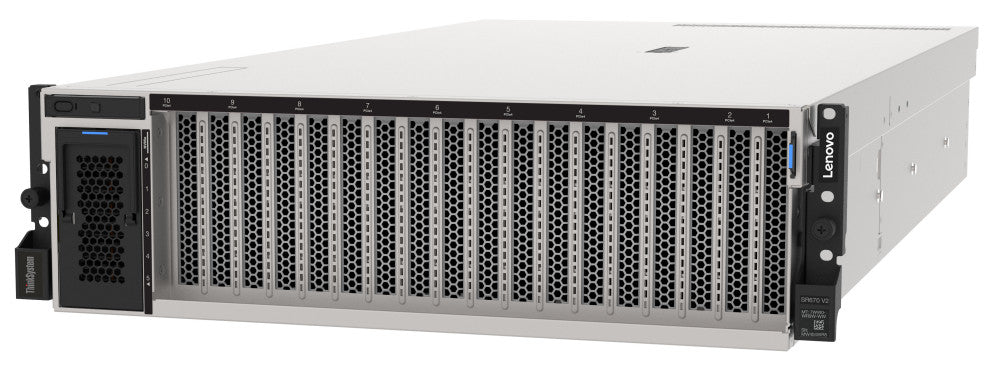

Lenovo SR670-V2 | ThinkSystem SR670 V2 3U GPU Server, 8x Double-Wide GPU
SKU:SR670-V2
Stock Status: Enquire
Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Custom Built Servers
Need a different spec, quantity or configuration?
We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.
Configure your server now →
Description
Description
The ThinkSystem SR670 V2 is a GPU-rich 3U two-socket rack server built on 3rd-generation Intel Xeon Scalable (Ice Lake) processors. This SKU is the 8-DW GPU model, designed for AI and machine learning, deep learning, HPC, remote visualisation, ray-traced rendering, video encode and decode, and life-sciences simulation. It deploys as a single node or in clusters managed with Lenovo Intelligent Computing Orchestration (LiCO).
This configuration supports up to eight double-wide PCIe GPUs alongside two Xeon Scalable processors with up to 40 cores and up to 270W TDP each. Memory is provided by 32 DIMM slots of TruDDR4 running up to 3200 MHz, scaling to 4TB, with optional Intel Optane Persistent Memory 200 Series. Local storage on the 8-DW model is six hot-swap EDSFF E1.S NVMe bays, with an optional internal M.2 adapter. Power comes from four hot-swap redundant 80 PLUS Platinum 2400W supplies, and the OCP 3.0 slot accepts 1GbE, 10GbE and 25GbE adapters.
The server is built to order. It is compatible with NVIDIA A100, A40 and A30 PCIe GPUs using NVLink bridges, 12Gb SAS/SATA RAID and HBA adapters, and common operating systems including Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi. XClarity Controller provides embedded remote management.
Enquire with XS Network Tech for Configured to order Used servers.
Features
Features
- Eight double-wide PCIe GPU capacity in a 3U chassis for dense AI and HPC compute
- Supports NVIDIA A100, A40 and A30 Tensor Core GPUs
- NVLink bridges provide direct GPU-to-GPU connection of up to 600 GB/s on supported GPUs
- Supports GPU Direct RDMA I/O
- Local high-speed NVMe storage with EDSFF E1.S hot-swap bays
- Hot-swap redundant 80 PLUS Platinum power supplies
- XClarity Controller embedded management with XClarity Administrator and Energy Manager integration
- LiCO support for AI and HPC cluster orchestration
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 3U rack
- Model: 8-DW GPU model
- Processor: Two 3rd-gen Intel Xeon Scalable (Ice Lake), up to 40 cores, up to 3.6 GHz, up to 270W TDP
- Chipset: Intel C621A, Whitley platform
- Memory: 32 DIMM slots, TruDDR4 RDIMM and 3DS RDIMM, up to 3200 MHz at 2 DPC
- Memory maximum: Up to 4TB
- Persistent memory: Up to 16x Intel Optane Persistent Memory 200 Series
- Memory protection: ECC, SDDC, ADDDC, memory mirroring
- GPU support: Up to 8x double-wide PCIe GPUs
- Drive bays: 6x EDSFF E1.S hot-swap NVMe, optional internal M.2 adapter (up to 2 drives)
- Maximum internal storage: 46.08TB
- Network interfaces: OCP 3.0 SFF slot (PCIe 4.0 x8 or x16), supports 1GbE, 10GbE and 25GbE adapters
- PCI expansion: Up to 4x PCIe 4.0 slots, configuration dependent
- Power supply: 4x hot-swap redundant 80 PLUS Platinum 2400W AC
- Cooling: 5x dual-rotor simple-swap 80 mm fans, N+1 rotor redundancy
- Video: G200 graphics, 16MB, integrated in XCC, max 1920x1200
- Rear ports: 3x USB 3.2 G1, 1x VGA, 1x RJ-45 1GbE XCC management port
- Security: Chassis intrusion switch, power-on and administrator passwords, TPM 2.0
- Dimensions (W x H x D): 448 x 131 x 892 mm
- Weight: 39 kg, configuration dependent
FAQs
Q: Does this server need a licence to operate?
A: No licence is required to run the server. XClarity Controller Standard is included, and optional Advanced or Enterprise upgrades add remote control functions. Intel VROC NVMe RAID needs an optional licence when used with non-Intel NVMe SSDs.
Q: What power supplies does the 8-DW GPU model use?
A: The 8-DW GPU model uses four hot-swap redundant 80 PLUS Platinum 2400W AC power supplies, operating from 220V AC.
Q: Which GPUs does it work with?
A: It supports NVIDIA A100, A40 and A30 PCIe GPUs with NVLink bridges. The 8-DW model holds up to eight double-wide GPUs.
Q: What storage does the 8-DW GPU model provide?
A: It provides six hot-swap EDSFF E1.S NVMe bays, giving up to 46.08TB of internal storage, plus an optional internal M.2 adapter for up to two drives.
Q: Which operating systems are supported?
A: Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi are supported.
