Lenovo SR665 | ThinkSystem SR665 2U Dual AMD EPYC Rack Server
SKU:SR665
Stock Status: Enquire
Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Custom Built Servers
Need a different spec, quantity or configuration?
We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.
Configure your server now →
Description
Description

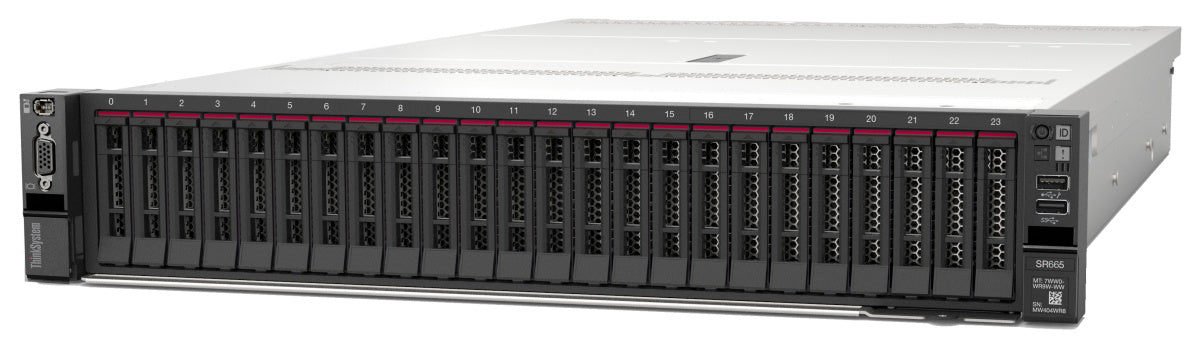

The ThinkSystem SR665 is a 2-socket, 2U rack server built on AMD EPYC 7002 "Rome" and 7003 "Milan" processors with PCIe 4.0 throughout. It is aimed at demanding workloads such as HPC, AI with GPU-equipped models, virtualisation, and high-capacity or NVMe-based storage servers in finance, healthcare and telco environments.
Up to two EPYC processors deliver up to 64 cores each, with a TDP of up to 280W. Memory comes from 32 DDR4 slots (16 per processor, 8 channels each), scaling to 8TB using 256GB 3DS RDIMMs at up to 3200 MHz. Storage supports up to 20 x 3.5-inch or 40 x 2.5-inch hot-swap bays across front, middle and rear zones, with SAS, SATA, NVMe or AnyBay combinations and an optional internal M.2 boot module. Expansion includes up to 8 PCIe 4.0 slots plus a dedicated OCP 3.0 SFF network slot, and up to 8 single-width or 3 double-width GPUs.
Redundant hot-swap power supplies (80 PLUS Platinum or Titanium, 500W to 1800W) and up to six N+1 hot-swap fans support continuous operation. XClarity Controller provides built-in out-of-band management, and no operating licence is required to run the hardware.
Enquire with XS Network Tech for Configured to order Used servers.
Features
Features
- Supports AMD EPYC 7002 and 7003 processors, including 3D V-Cache Milan-X, with up to 64 cores per socket
- PCIe 4.0 throughout, with 128 PCIe 4.0 lanes available from the processors
- Up to 16 NVMe drives with 1:1 connectivity, or up to 32 with 1:2 oversubscription
- Up to 12 SATA drives from the onboard controller with no adapter needed
- Dedicated OCP 3.0 SFF network slot with tool-less installation
- Up to 8 single-width or 3 double-width GPUs in 2U
- Redundant hot-swap power supplies and fans, with hot-swap drives and RAID support
- XClarity Controller embedded management for out-of-band control
- M.2 boot options with RAID 1 and hot-swap 7mm boot drives
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 2U rack
- Processor: One or two AMD EPYC 7002 (Rome) or 7003 (Milan) Series, up to 64 cores, up to 4.1 GHz, TDP up to 280W
- Memory slots: 32 DIMM slots with two processors (16 per processor), 8 channels per processor, 2 DIMMs per channel
- Memory type: TruDDR4 RDIMMs and 3DS RDIMMs
- Memory speed: Performance+ RDIMMs up to 3200 MHz at 1DPC and 2DPC; RDIMMs 3200 MHz at 1DPC, 2933 MHz at 2DPC; 3DS RDIMMs 2933 MHz at 1DPC, 2666 MHz at 2DPC
- Maximum memory: Up to 8TB with 32x 256GB 3DS RDIMMs
- Drive bays: Up to 20x 3.5-inch or 40x 2.5-inch hot-swap bays, SAS/SATA, NVMe or AnyBay
- Boot storage: Optional 2x 7mm rear drives and internal M.2 module with up to 2 M.2 drives
- Storage controllers: Onboard NVMe and SATA (no RAID); RAID 530i, 930 and 940 series; 430/440 HBAs
- Expansion slots: Up to 8x PCIe 4.0 full-height rear slots plus 1x OCP 3.0 SFF slot, slots 4-8 require two processors
- Network: Dedicated OCP 3.0 SFF slot (PCIe 4.0 x16) for 1GbE, 10GbE and 25GbE adapters
- GPU support: Up to 8 single-width or 3 double-width GPUs
- Front ports: 1x USB 3.2 G1, 1x USB 2.0 (also XCC local management), external diagnostics port, optional VGA
- Rear ports: 3x USB 3.2 G1, 1x VGA, 1x RJ-45 1GbE XCC management port, optional DB-9 COM
- Cooling: Up to 6x N+1 redundant hot-swap 60 mm fans
- Power supplies: Up to two hot-swap redundant, 80 PLUS Platinum or Titanium, 500W, 750W, 1100W, 1800W (220V AC); 1100W -48V DC option
- Video: G200 graphics, 16 MB, up to 1920x1200 at 60Hz
- Management: XClarity Controller, XClarity Administrator, XClarity Integrator, XClarity Energy Manager
- Security: TPM 2.0, chassis intrusion switch, power-on and administrator passwords, optional lockable front bezel
- Operating systems: Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
- Dimensions (W x H x D): 445 x 87 x 764 mm
- Weight: Up to 38.8 kg
FAQs
Q: Does the SR665 require an operating licence?
A: No operating licence is required. XClarity Controller Standard is built in, and optional XCC Advanced and Enterprise upgrades add remote control functions. The XCC tier depends on the specific model configuration.
Q: Which processors does the SR665 support?
A: It supports AMD EPYC 7002 (Rome) and 7003 (Milan) Series processors, up to two per server. P-suffix parts are single-socket only. EPYC 7003 and NVIDIA A100 configurations need the SR665 2U Refresh system board.
Q: What power supply options are available?
A: Up to two hot-swap redundant AC supplies, 80 PLUS Platinum or Titanium, in 500W, 750W, 1100W and 1800W ratings. The 1800W unit runs on 220V AC only, and a 1100W -48V DC option is also available.
Q: How many GPUs can the SR665 hold?
A: Up to 8 single-width or 3 double-width GPUs. High-performance GPUs are supported only on the "for AI" base models.
Q: How do I add networking to the SR665?
A: The server has a dedicated OCP 3.0 SFF slot (PCIe 4.0 x16) supporting 2-port and 4-port 1GbE, 10GbE and 25GbE adapters. Additional adapters can be fitted in the PCIe 4.0 slots.
