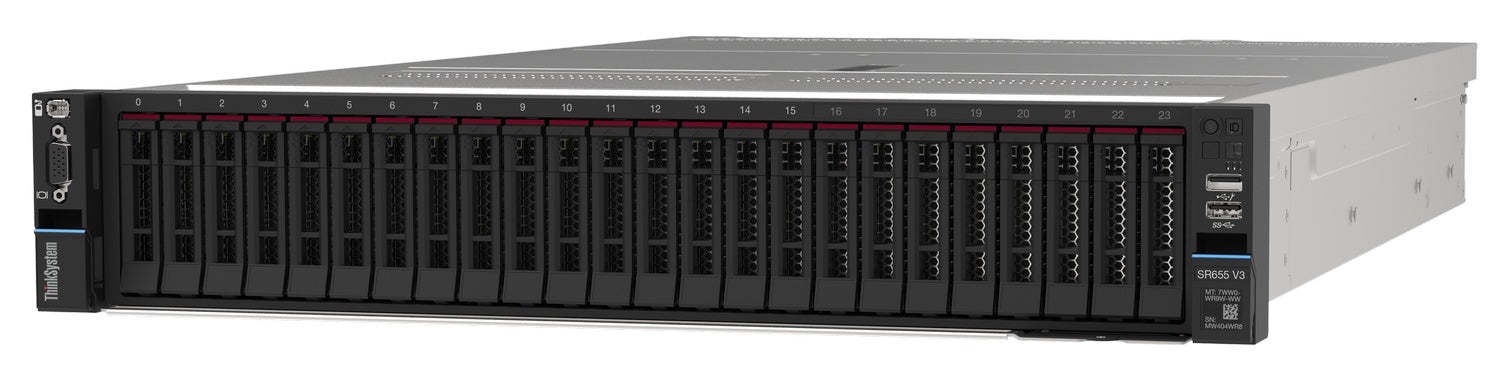

Lenovo SR655-V3 | ThinkSystem SR655 V3 2U Rack Server, AMD EPYC 9004
SKU:SR655-V3
Stock Status: Enquire
Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Custom Built Servers
Need a different spec, quantity or configuration?
We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.
Configure your server now →
Description
Description
The ThinkSystem SR655 V3 is a single-socket 2U rack server built on the AMD EPYC 9004 (Genoa) platform. It is aimed at dense GPU, NVMe storage and virtualisation workloads, and suits AI inference, VDI, OLTP, analytics and software-defined storage in finance, healthcare and telco environments.
A single EPYC 9004 processor delivers up to 128 cores and 256 threads at up to 360 W TDP. Twelve DDR5 DIMM slots, one DIMM per channel, support up to 3TB of memory with 256GB 3DS RDIMMs, running at up to 4800 MHz. Storage is highly configurable, from up to 20 hot-swap 3.5-inch bays to up to 40 hot-swap 2.5-inch bays across SAS, SATA, NVMe and AnyBay options. Expansion covers up to 10 PCIe slots plus a dedicated OCP 3.0 SFF slot, with room for up to 8 single-width or 3 double-wide GPUs. This is the base platform, configured to order, and it takes up to two hot-swap redundant 80 PLUS Platinum or Titanium power supplies from 750 W to 2600 W.
It works with Lenovo and Broadcom 12Gb SAS RAID adapters and HBAs, NVMe retimer and switch adapters, OCP 3.0 Ethernet adapters, M.2 and 7mm boot kits, and Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi and Ubuntu Server.
Enquire with XS Network Tech for Configured to order Used servers.
Features
Features
- 31 front, middle and rear drive bay configurations plus 6 rear slot configurations
- Up to 24x NVMe drives with 1:1 PCIe connectivity, or up to 32 with oversubscription
- Dedicated OCP 3.0 slot with tool-less installation and shared BMC sideband support
- Hot-swap redundant power supplies and up to 6 hot-swap redundant fans
- Power-source-independent light path diagnostics for faster fault finding
- Optional front-accessible slots and drives for front-of-rack servicing
- Platform Secure Boot with AMD silicon root of trust, plus TPM 2.0 and PFR
- Optional Lenovo Neptune direct-water cooling on configure-to-order builds
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 2U rack
- Processor: 1x AMD EPYC 9004 (Genoa), up to 128 cores / 256 threads
- Processor power: up to 360 W TDP, up to 4.1 GHz
- Memory slots: 12 DDR5 DIMM slots, 12 channels, 1 DIMM per channel
- Memory speed: up to 4800 MHz with EPYC 9004
- Memory maximum: up to 3TB (12x 256GB 3DS RDIMM)
- Memory types: Lenovo TruDDR5 RDIMM, 3DS RDIMM and 9x4 RDIMM
- Drive bays: up to 20x 3.5-inch or 40x 2.5-inch hot-swap
- Drive interfaces: SAS/SATA, NVMe or AnyBay
- Boot options: two 7mm rear drives, or internal M.2 module with up to two M.2 drives
- PCIe expansion: up to 10 slots (PCIe 5.0 / 4.0) plus 1 OCP 3.0 SFF slot (PCIe 4.0 x16)
- GPU support: up to 8 single-width or 3 double-wide GPUs
- Front ports: 1x USB 3.2 G1, 1x USB 2.0 (XCC local management), external diagnostics port, optional VGA
- Rear ports: 3x USB 3.2 G1, 1x VGA, 1x RJ-45 1GbE XCC management port
- Cooling: up to 6x N+1 redundant hot-swap 60 mm fans
- Power supplies: up to 2x hot-swap redundant, 80 PLUS Platinum or Titanium, 750 W to 2600 W
- Management: XClarity Controller 2 (ASPEED AST2600 BMC)
- Security: TPM 2.0, Platform Firmware Resiliency, chassis intrusion switch
- Dimensions (W x H x D): 445 x 87 x 766 mm
- Weight: up to 38.8 kg
FAQs
Q: Does the SR655 V3 need a software licence to run?
A: No licence is needed for the hardware to operate, and standard XClarity Controller 2 management is included. An optional XCC Platinum upgrade adds remote control (KVM) and remote media mounting. Operating systems and hypervisors are licensed separately.
Q: What power supplies does it use?
A: It takes up to two hot-swap redundant AC supplies, 80 PLUS Platinum or Titanium, in 750 W, 1100 W, 1800 W, 2400 W or 2600 W. The 750 W and 1100 W units also support 110 V, and a 1100 W -48V DC option is available.
Q: How much memory can it hold?
A: It has 12 DDR5 slots and supports up to 3TB using 12x 256GB 3DS RDIMMs. Memory runs at up to 4800 MHz with an EPYC 9004 processor.
Q: How many GPUs can it take?
A: Up to 8 single-width or 3 double-wide GPUs. High-performance GPUs are supported on the AI-oriented base models.
Q: Which operating systems does it support?
A: Microsoft Windows Server, Windows 10 and 11, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi and Ubuntu Server.
