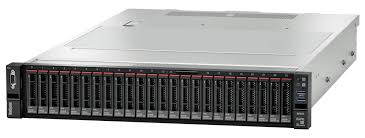

Lenovo SR655 | ThinkSystem SR655 2U Rack Server, 1-Socket EPYC 7002/7003
SKU:SR655
Stock Status: Enquire
Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Custom Built Servers
Need a different spec, quantity or configuration?
We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.
Configure your server now →
Description
Description
The ThinkSystem SR655 is a single-socket 2U rack server built on AMD EPYC 7002 (Rome) or EPYC 7003 (Milan) processors. It suits virtualisation, software-defined storage, advanced security and high-performance database workloads, particularly where single-socket performance and plenty of PCIe lanes are needed.
The SR655 base chassis takes one EPYC processor with up to 64 cores and 128 threads at up to 280W TDP, plus 16 DDR4 DIMM slots for up to 2TB using 128GB 3DS RDIMMs. Memory runs at up to 3200MHz at 1 DPC and 2933MHz at 2 DPC. Storage scales to 20 x 3.5" or 32 x 2.5" drive bays, with up to 32 NVMe drives. Expansion includes 8 x PCIe 4.0 rear slots, an OCP 3.0 adapter slot and an internal PCIe 4.0 x8 slot. Specific CPU, memory and drive configuration varies by 7Z01 machine-type model.
Two hot-swap redundant power supplies are fitted, in 550W, 750W or 1100W 80 PLUS Platinum, or 750W 80 PLUS Titanium. Management is handled by an ASPEED AST2500 BMC with a dedicated 1GbE RJ-45 port. It supports Windows Server, SUSE Linux Enterprise Server, Red Hat Enterprise Linux and VMware vSphere.
Enquire with XS Network Tech for Configured to order Used servers.
Features
Features
- Designed to deliver the full performance of 280W 64-core EPYC processors
- PCIe Gen 4.0 support for up to twice the I/O speed of PCIe Gen 3
- Supports 3200 MHz DDR4 memory
- Dense storage with SATA, SAS and NVMe drive support
- Hot-swap redundant power supplies
- Remote management via ASPEED AST2500 BMC and Lenovo XClarity
- Supports Fibre Channel HBAs including 64Gb Emulex LPe36002 and 32Gb Emulex LPe35000/35002 adapters
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 2U rack
- Processor: One AMD EPYC 7002 (Rome) or EPYC 7003 (Milan) processor
- Maximum cores: Up to 64 cores / 128 threads per processor
- Core speed: Up to 4.1 GHz
- Processor TDP: Up to 280W
- Process technology: 7 nm
- Memory slots: 16 x DDR4 across 8 memory channels
- Maximum memory: 2TB using 128GB 3DS RDIMMs
- Memory speed: 3200MHz at 1 DPC, 2933MHz at 2 DPC
- PCIe lanes: 128 x PCIe 4.0 I/O lanes
- Drive bays: Up to 20 x 3.5" or 32 x 2.5" drives
- NVMe: Up to 32 x NVMe drives with 1:2 connection
- RAID support: Hardware RAID with flash cache, HBAs
- Expansion slots: 8 x PCIe 4.0 rear slots, 1 x OCP 3.0 slot, 1 x internal PCIe 4.0 x8 slot
- Front ports: 2 x USB 3.1 G1, 1 x VGA (optional)
- Rear ports: 1 x VGA, 2 x USB 3.1 G1, 1 x Serial, 1 x RJ-45 1Gb dedicated management
- Power supplies: Two hot-swap redundant 550W/750W/1100W 80 PLUS Platinum, or 750W 80 PLUS Titanium
- Systems management: ASPEED AST2500 BMC
- Dimensions (H x W x D): 87 x 445 x 764 mm
- Weight: Up to 35.4 kg
FAQs
Q: Does the SR655 need a licence to operate?
A: No licence is needed for the base server to operate. Operating system licences such as Windows Server, Red Hat Enterprise Linux, SUSE and VMware are separate.
Q: What power supplies does the SR655 use?
A: It takes two hot-swap redundant AC power supplies, in 550W, 750W or 1100W 80 PLUS Platinum, or 750W 80 PLUS Titanium.
Q: Which processors does the SR655 support?
A: It supports a single AMD EPYC 7002 (Rome) or EPYC 7003 (Milan) processor, with up to 64 cores and a TDP of up to 280W.
Q: Which operating systems are supported?
A: Supported operating systems include Microsoft Windows Server, SUSE Linux Enterprise Server, Red Hat Enterprise Linux and VMware vSphere.
Q: Does it support Fibre Channel adapters?
A: Yes. It supports Emulex Fibre Channel HBAs, and the 64Gb 4XC7A77485 card works with both EPYC 7002 and 7003 processors. Some 32Gb cards are specific to one processor generation.
