Lenovo SR650-V3 | ThinkSystem SR650 V3 2U Dual Xeon Rack Server
SKU:SR650-V3
Stock Status: Enquire
Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Custom Built Servers
Need a different spec, quantity or configuration?
We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.
Configure your server now →
Description
Description

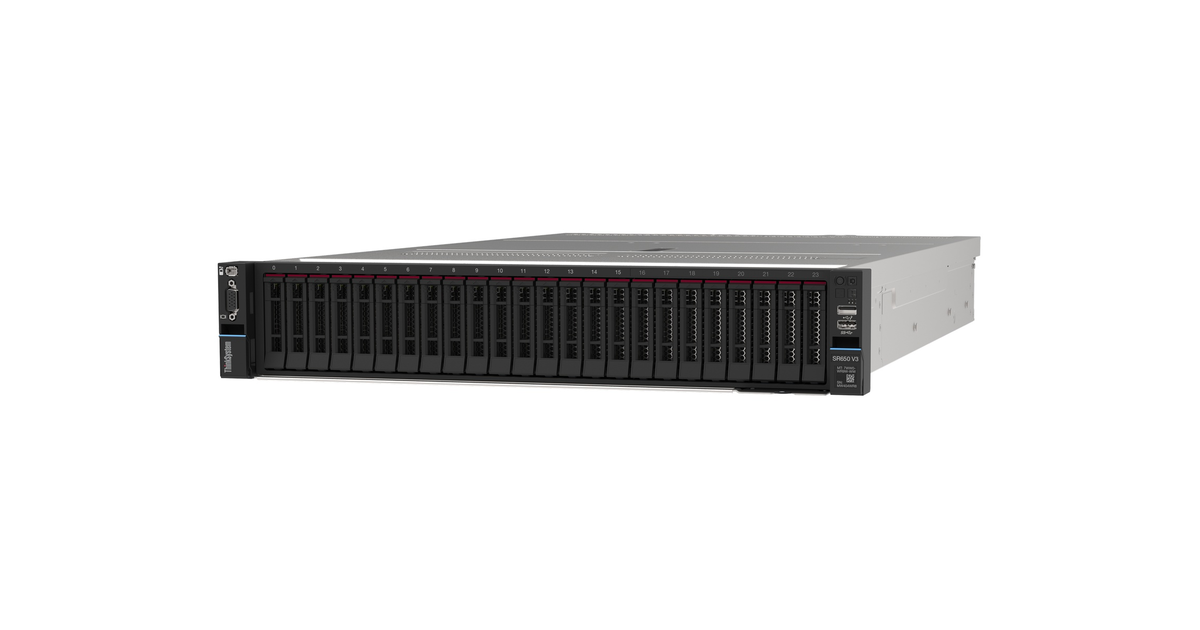

The ThinkSystem SR650 V3 is a 2-socket, 2U rack server from the ThinkSystem V3 range, built for enterprise IT infrastructure, data analytics, public, private and hybrid cloud applications, AI and machine learning, high performance computing and 5G or networking workloads. It suits organisations from small businesses through to large enterprises.
It supports up to two 4th Gen (Sapphire Rapids) or 5th Gen (Emerald Rapids) Intel Xeon Scalable processors with up to 64 cores and 385W TDP each, on the Intel C741 chipset. Memory is TruDDR5 across up to 32 DIMM slots, with 16 slots and 8 channels per processor. Storage is flexible AnyBay, accepting up to 20x 3.5" or 40x 2.5" drive bays, with up to 36 NVMe drives using retimer adapters. Expansion covers up to 12 PCIe 4.0/5.0 slots plus an OCP 3.0 slot, and the chassis supports up to 8 single-width or 3 double-width GPUs. Dual redundant hot-swap AC or DC power supplies are available from 750W to 2600W, including a 1100W -48V DC option.
Lenovo XClarity Controller 2 (XCC2) Standard is included for monitoring, with an optional Platinum upgrade adding remote control, remote media mounting and power capping. Processor, memory and storage are configured per order. Operating system support covers Microsoft, SUSE, Red Hat and VMware.
Enquire with XS Network Tech for Configured to order Used servers.
Features
Features
- AnyBay storage allows SAS, SATA or NVMe PCIe drives in the same drive bay
- Support for a wide range of GPUs for AI, machine learning, HPC and graphics workloads
- DDR5 memory for higher speed and capacity
- PCIe 5.0 I/O lanes for optimised data transfer
- XClarity Controller 2 with enhanced remote management features
- Memory RAS with SDDC (Chipkill), ADDDC and memory mirroring
- ThinkShield security
- Optional open-loop liquid cooling via the Neptune Processor Direct Water Cooling module
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 2U rack server
- Processors: Up to 2x 4th or 5th Gen Intel Xeon Scalable, up to 64 cores and 385W TDP each
- Chipset: Intel C741
- Memory: Up to 32x TruDDR5 3DS/RDIMM slots, up to 8TB, 8 channels per processor, 2 DPC
- Drive bays: Up to 20x 3.5" or 40x 2.5
- NVMe: Up to 36x NVMe drives with PCIe retimer adapters
- Rear drive bays: 2x 2.5
- Boot drives: 7mm SATA/NVMe hot-swap or 2x M.2 SATA/NVMe, RAID supported
- RAID: Direct NVMe, VROC/VMD, onboard SATA software RAID (0, 1, 5, 10)
- Expansion slots: Up to 12x PCIe 4.0/5.0, 1x OCP 3.0
- GPU support: Up to 8x single-width or 3x double-width
- Front ports: 1x USB 3.1 G1, 1x USB 2.0, optional VGA and diagnostics handset port
- Rear ports: 3x USB 3.1 G1, 1x VGA, 1x 1GbE RJ-45 management, optional second management port and serial port
- Power supplies: Dual redundant hot-swap AC or DC, 750W to 2600W, Platinum or Titanium, 1100W -48V DC option
- Management: Lenovo XClarity Controller 2 (XCC2)
- Video: Embedded graphics with 16 MB memory
- Dimensions (H x W x D): 86.5 x 444.6 x 763.7 mm
- Weight: Up to 39 kg depending on configuration
- Operating temperature: ASHRAE A4 up to 45 C, some configurations limited to 25 C or 30 C
- OS support: Microsoft, SUSE, Red Hat, VMware
FAQs
Q: Does the SR650 V3 need a licence to operate?
A: No licence is required to operate it. XClarity Controller 2 Standard is included for monitoring, and an optional XClarity Controller Platinum upgrade adds remote control (KVM), remote media mounting, boot capture and power capping.
Q: Which processors does it support?
A: It supports up to two 4th Gen (Sapphire Rapids) or 5th Gen (Emerald Rapids) Intel Xeon Scalable processors, with up to 64 cores and 385W TDP per processor.
Q: What power supply options are available?
A: Dual redundant hot-swap AC or DC supplies are available in 750W, 1100W, 1800W and 2400W Platinum, 750W, 1100W, 1800W and 2600W Titanium, and a 1100W -48V DC Platinum option.
Q: What memory does it use?
A: It uses TruDDR5 RDIMM, 3DS RDIMM and 9x4 RDIMM across up to 32 slots, for up to 8TB. Optane persistent memory is not supported.
Q: How many GPUs can it hold?
A: It supports up to 8 single-width GPUs or up to 3 double-width GPUs, depending on configuration.
Q: Which operating systems are supported?
A: Microsoft, SUSE, Red Hat and VMware operating systems are supported.
