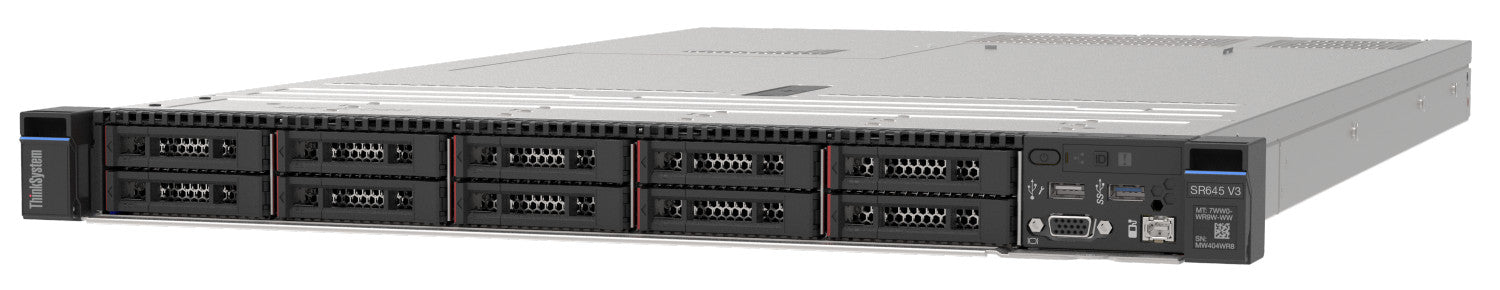

Lenovo SR645-V3 | ThinkSystem SR645 V3 1U Rack Server, 2x AMD EPYC 9004
SKU:SR645-V3
Stock Status: Enquire
Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Custom Built Servers
Need a different spec, quantity or configuration?
We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.
Configure your server now →
Description
Description
The ThinkSystem SR645 V3 is a dense 2-socket 1U rack server in the ThinkSystem SR Series (V3) range. It is built around AMD EPYC processors with PCIe 5.0 I/O and is aimed at virtualisation, cloud computing, VDI, database management, data analytics and HPC workloads, from small businesses through to large enterprises and cloud service providers. This SKU is the base model with two 4th Gen AMD EPYC 9004 processors.
The platform supports one or two AMD EPYC 9004 or 9005 processors, with 24 DDR5 DIMM slots (12 channels per processor) for up to 6TB using 256GB 3DS RDIMMs. Front storage options include up to 12x 2.5-inch or 4x 3.5-inch hot-swap bays, or 16x E1.S EDSFF drives, with AnyBay bays accepting SAS, SATA or NVMe. Expansion covers up to 5 PCIe slots plus a dedicated OCP 3.0 slot, and up to 5 single-width GPUs at 75W each. Redundant hot-swap power supplies range from 500W to 1800W AC, with a 1100W -48V DC option.
Management is handled by XClarity Controller 2 with a dedicated 1GbE port, and an optional XCC Platinum upgrade adds remote control and FIPS 140-3 security. Security features include a Root of Trust module with TPM 2.0 and Platform Firmware Resiliency.
Enquire with XS Network Tech for Configured to order Used servers.
Features
Features
- Supports one or two 4th Gen AMD EPYC 9004 or 5th Gen AMD EPYC 9005 processors with PCIe 5.0 I/O
- Up to 12 NVMe drives with direct 1:1 connections and no PCIe lane oversubscription
- AnyBay hot-swap bays accepting SAS, SATA or NVMe drives
- Compute Express Link (CXL) v1.1 Ready
- OCP 3.0 slot with PCIe 5.0 x16 interface and tool-less installation
- Lenovo Neptune liquid-cooling options for high-TDP processors
- Redundant hot-swap power supplies and fans with light path diagnostics
- Lenovo ThinkShield security with Root of Trust, TPM 2.0 and Platform Firmware Resiliency
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 1U rack
- Processor: One or two AMD EPYC 9004 (4th Gen) or 9005 (5th Gen) processors
- Maximum cores: Up to 128 per processor (9004), up to 160 per processor (9005)
- Processor TDP: Up to 400 W
- Memory slots: 24 DDR5 DIMM slots, 12 channels per processor
- Memory maximum: Up to 6TB with 24x 256GB 3DS RDIMMs
- Memory types: TruDDR5 RDIMM, 3DS RDIMM and 9x4 RDIMM
- Drive bays: Up to 12x 2.5-inch or 4x 3.5-inch hot-swap, or 16x E1.S EDSFF
- Rear drive bays: 2x 2.5-inch or 2x 7mm
- Internal storage: M.2 module, up to 2 drives
- Storage controllers: Onboard NVMe and SATA, 12 Gb SAS/SATA RAID adapters and HBAs
- PCIe expansion: Up to 5 slots (PCIe 5.0/4.0) plus 1x OCP 3.0 slot
- GPU support: Up to 5x single-width GPUs
- Network: OCP 3.0 SFF slot supporting 2-port and 4-port 1GbE/10GbE/25GbE adapters
- Front ports: 1x USB 3.2 G1, 1x USB 2.0, external diagnostics port, optional VGA
- Rear ports: 3x USB 3.2 G1, 1x VGA, 1x RJ-45 1GbE XCC management port
- Power supplies: Up to 2x hot-swap redundant, 500W/750W/1100W/1800W AC, Platinum or Titanium
- DC power option: 1100W -48V DC
- Cooling: Up to 8x N+1 redundant hot-swap 40 mm fans
- Management: XClarity Controller 2 (ASPEED AST2600 BMC)
- Security: TPM 2.0, Root of Trust, Platform Firmware Resiliency, chassis intrusion switch
- Dimensions (W x H x D): 440 x 43 x 773 mm
- Weight: Up to 20.2 kg
- Operating temperature: ASHRAE A2 10 to 35 C, A3 5 to 40 C, A4 5 to 45 C
- Maximum altitude: 3,050 m
FAQs
Q: Does the SR645 V3 need a licence for remote management?
A: Standard XClarity Controller 2 management is included. The optional XCC Platinum upgrade adds remote control (KVM), remote media mounting and FIPS 140-3 security.
Q: What power supplies does the SR645 V3 use?
A: It takes up to two hot-swap redundant power supplies, 80 PLUS Platinum or Titanium, in 500W, 750W, 1100W or 1800W AC. The 500W, 750W and 1100W units also support 110V, and a 1100W -48V DC option is available.
Q: How much memory does it support?
A: It has 24 DDR5 DIMM slots, 12 per processor, and supports up to 6TB using 24x 256GB 3DS RDIMMs. TruDDR5 RDIMMs, 3DS RDIMMs and 9x4 RDIMMs are supported.
Q: Can it take GPUs?
A: Yes. It supports up to 5 single-width GPUs at 75W each, alongside up to 5 PCIe slots and an OCP 3.0 slot.
Q: Which operating systems are supported?
A: Microsoft Windows Server, Windows 10 and 11, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi and Ubuntu Server are supported.
Q: What storage can I fit in the front bays?
A: Front options include up to 12x 2.5-inch or 4x 3.5-inch hot-swap bays, or 16x E1.S EDSFF drives. AnyBay bays accept SAS, SATA or NVMe drives.
