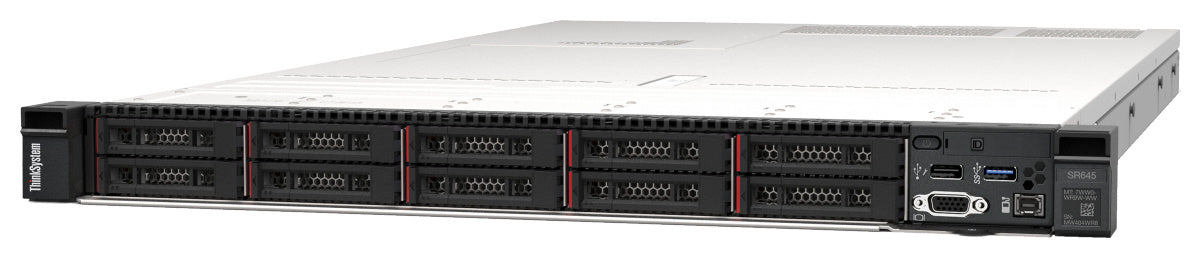

Lenovo SR645 | ThinkSystem SR645 1U Dual AMD EPYC Rack Server
SKU:SR645
Stock Status: Enquire
Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Custom Built Servers
Need a different spec, quantity or configuration?
We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.
Configure your server now →
Description
Description
The ThinkSystem SR645 is a 2-socket 1U rack server built on AMD EPYC 7002 Rome and 7003 Milan processors, with PCIe 4.0 I/O. It suits dense enterprise workloads including HPC, database, analytics, virtualisation and VDI, and can also host GPU-accelerated and high-performance NVMe deployments in the data centre.
Up to two EPYC processors provide up to 64 cores each at up to 280W TDP. Thirty-two DDR4 DIMM slots scale to 8TB using 256GB 3DS RDIMMs, with speeds up to 3200 MHz. Storage options reach up to 12x 2.5-inch or 4x 3.5-inch hot-swap bays, including AnyBay bays that accept SAS, SATA or NVMe, with up to 12 onboard NVMe connections. Expansion covers up to three PCIe 4.0 slots plus a dedicated OCP 3.0 SFF slot, and up to three single-width 75W GPUs. Redundant hot-swap power supplies range from 500W to 1800W at 80 PLUS Platinum or Titanium efficiency.
This page covers the base SR645 platform, available as machine type 7D2X or 7D2Y, with CPU, memory, drive and power configuration set by the specific model. It works with OCP 3.0 adapters, Lenovo RAID adapters and HBAs, M.2 boot adapters, and XClarity management tools. Supported operating systems include Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi.
Enquire with XS Network Tech for Configured to order Used servers.
Features
Features
- Dual AMD EPYC 7002/7003 support with up to 64 cores per CPU and PCIe 4.0 I/O
- Onboard NVMe ports connect directly to up to 12 NVMe SSDs without additional adapters
- AnyBay drive bays accept SAS, SATA or NVMe drives
- Dedicated OCP 3.0 SFF slot with tool-less adapter installation
- Up to three single-width 75W GPUs in 1U for VDI and compute acceleration
- Memory RAS features including SDDC, patrol and demand scrubbing and ECC retry
- Hot-swap drives, redundant power supplies and fans with light path diagnostics
- XClarity Controller with Redfish REST API and ThinkShield security with TPM 2.0
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 1U rack, 2-socket
- Machine types: 7D2X and 7D2Y
- Processor: One or two AMD EPYC 7002 (Rome) or 7003 (Milan) Series, up to 64 cores, up to 4.1 GHz, up to 280W TDP
- Memory slots: 32 DDR4 DIMM slots, 8 channels per processor, 2 DIMMs per channel
- Memory type: Lenovo TruDDR4 RDIMMs and 3DS RDIMMs
- Memory speed: Up to 3200 MHz (configuration dependent)
- Maximum memory: 8TB using 32x 256GB 3DS RDIMMs
- Drive bays: Up to 12x 2.5-inch or 4x 3.5-inch hot-swap bays
- NVMe: Up to 12x NVMe with 1:1 onboard connection
- Internal storage: M.2 module for up to two M.2 drives
- Storage controllers: 12Gb SAS/SATA RAID adapters (530i, 930, 940 series) and HBAs (430, 440 series)
- PCIe slots: Up to 3x PCIe 4.0 rear slots plus 1x OCP 3.0 SFF slot
- GPU support: Up to 3x single-width 75W GPUs
- Network: OCP 3.0 SFF slot for 1GbE, 10GbE and 25GbE adapters, 2-port or 4-port
- Management port: Dedicated 1GbE RJ-45 XClarity Controller port
- Front ports: 1x USB 3.2 G1, 1x USB 2.0, external diagnostics port, optional VGA
- Rear ports: 3x USB 3.2 G1, 1x VGA, 1x RJ-45 XCC management, optional DB-9 COM
- Power supplies: Up to 2x hot-swap redundant AC PSUs, 500W, 750W, 1100W or 1800W, 80 PLUS Platinum or Titanium
- Cooling: Up to 8x N+1 redundant hot-swap 40 mm fans
- Video: G200 graphics, 16MB, up to 1920x1200 at 60Hz
- Security: TPM 2.0, chassis intrusion switch, power-on and administrator passwords
- Dimensions (W x H x D): 440 x 43 x 773 mm
- Weight: Up to 20.2 kg
FAQs
Q: Does the SR645 need a licence to operate?
A: No licence is needed to operate the server. XClarity Controller is included as standard. XCC Advanced for remote control and XCC Enterprise are optional upgrades, and operating system licences are separate.
Q: Which processors does the SR645 support?
A: It supports one or two AMD EPYC 7002 (Rome) or 7003 (Milan) Series processors, with up to 64 cores per CPU and up to 280W TDP.
Q: What power supplies can the SR645 use?
A: It takes up to two hot-swap redundant AC power supplies rated 500W, 750W, 1100W or 1800W, at 80 PLUS Platinum or Titanium efficiency. The 500W, 750W and 1100W units also support 110V, and a 1100W -48V DC option is available.
Q: Can the SR645 run GPUs?
A: Yes. It supports up to three single-width 75W GPUs, suited to VDI and compute acceleration in a 1U chassis.
Q: What network adapters does the SR645 support?
A: It has a dedicated OCP 3.0 SFF slot (PCIe 4.0 x16) that supports 2-port and 4-port 1GbE, 10GbE and 25GbE adapters. One port can be shared with the XClarity Controller.
Q: What is the difference between machine types 7D2X and 7D2Y?
A: Both are the base SR645 platform. 7D2X and 7D2Y are separate machine type designations, and CPU, memory, drive and power supply configuration is set by the specific model.
