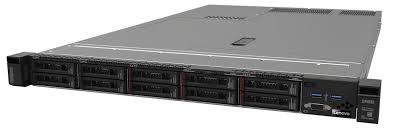

Lenovo SR635 | ThinkSystem 1U Rack Server, EPYC, 16 DIMM, 16x NVMe
SKU:SR635
Stock Status: Enquire
Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Custom Built Servers
Need a different spec, quantity or configuration?
We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.
Configure your server now →
Description
Description
The ThinkSystem SR635 is a single-socket 1U rack server built on AMD EPYC 7002 (Rome) and 7003 (Milan) processors with PCIe 4.0 I/O. It suits dense, GPU-heavy and NVMe-heavy workloads in a compact footprint, with typical uses including AI inference, VDI, OLTP, analytics, HPC and software-defined storage.
The single processor scales to 64 cores at up to 4.1 GHz and 280W TDP. Memory is 16 DIMM slots across 8 channels, taking TruDDR4 RDIMMs at 3200 or 2933 MHz up to 2TB. Storage options run from 4x 3.5-inch to 16x 2.5-inch hot-swap bays, with up to 16 NVMe drives connected directly. Expansion includes up to 4 PCIe 4.0 slots plus a dedicated OCP 3.0 SFF slot for 1GbE, 10GbE or 25GbE network adapters. Power comes from up to two hot-swap redundant 80 PLUS Platinum AC supplies in 550W, 750W, 1100W or 1600W ratings, and a 1100W -48V DC option is available.
It works with Lenovo TruDDR4 RDIMMs, 12Gb SAS/SATA RAID and non-RAID adapters, up to three single-width 75W GPUs and an optional M.2 boot module. Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi are supported.
Enquire with XS Network Tech for Configured to order Used servers.
Features
Features
- Supports AMD EPYC 7002 and 7003 processors with up to 64 cores and 128 threads
- Up to 128 PCIe lanes, suited to GPU and high-performance NVMe workloads
- Supports up to three single-width GPUs, each up to 75W
- Single-socket design can lower per-socket software licensing costs
- Onboard NVMe ports connect up to 16 NVMe SSDs directly, freeing I/O slots
- Remote management through ThinkSystem System Manager, IPMI 2.0, SNMP 3.0 and Redfish REST API
- Hardware TPM 2.0, Secure Boot and AMD Secure Root-of-Trust
- Hot-swap redundant power supplies and fans
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 1U rack
- Processor: 1x AMD EPYC 7002 (Rome) or 7003 (Milan) series
- Cores: up to 64 cores, up to 4.1 GHz, up to 280W TDP
- Memory slots: 16 DIMM slots, 8 channels, 2 DIMMs per channel
- Memory type: Lenovo TruDDR4 RDIMM, 3200 MHz or 2933 MHz
- Maximum memory: 2TB with 16x 128GB 3DS RDIMMs
- Memory protection: ECC, SDDC, Patrol and Demand Scrubbing, Post Package Repair
- Drive bays: up to 4x 3.5-inch or 16x 2.5-inch hot-swap
- NVMe support: up to 16 direct-attached NVMe drives (10 front, 4 mid, 2 rear)
- Storage controller: onboard SATA for up to 12 drives (no RAID), 12Gb SAS/SATA RAID and non-RAID adapters
- Maximum internal storage: 368.64TB (12x 30.72TB 2.5-inch SAS/SATA SSD)
- Expansion slots: up to 4x PCIe 4.0 plus 1x OCP 3.0 SFF slot
- Network: OCP 3.0 SFF slot with PCIe 4.0 x16, 1GbE, 10GbE and 25GbE adapters
- Front ports: 2x USB 3.1 G1, optional VGA
- Rear ports: USB 3.1 G1, 1x VGA, 1x DB-9 serial, 1x RJ-45 1GbE management
- Internal: optional M.2 module, up to 2 drives
- Power supplies: up to 2x hot-swap 80 PLUS Platinum AC, 550W, 750W, 1100W or 1600W
- Cooling: six or seven N+1 redundant hot-swap 40 mm fans
- Video: onboard 512 MB graphics, max 1920x1200 at 60Hz
- Dimensions (W x H x D): 440 x 43 x 755 mm
- Weight: up to 19.2 kg
FAQs
Q: Does this server need a licence to operate?
A: No licence is needed to operate the server, and XClarity Provisioning Manager Lite is built in. Operating systems such as Windows Server, RHEL, SLES and VMware ESXi are licensed separately.
Q: Which power supplies does it use?
A: It takes up to two hot-swap redundant 80 PLUS Platinum AC supplies in 550W, 750W, 1100W or 1600W ratings. The 550W, 750W and 1100W units also accept 110V input, while the 1600W unit requires 220V. An 1100W -48V DC option is also available.
Q: Which processors and memory does it support?
A: It supports a single AMD EPYC 7002 or 7003 series processor with up to 64 cores. Memory is Lenovo TruDDR4 RDIMMs at 3200 or 2933 MHz across 16 slots, up to 2TB. Persistent memory is not supported.
Q: How many NVMe drives can it take?
A: It supports up to 16 NVMe drives with direct connections and no oversubscription, spread across 10 front, 4 mid and 2 rear bays, depending on the drive bay configuration.
Q: Can it be fitted with GPUs?
A: Yes. It supports up to three single-width GPUs, each rated up to 75W, using the PCIe 4.0 slots.
Q: What network adapters does it support?
A: A dedicated OCP 3.0 SFF slot takes 2-port and 4-port 1GbE, 10GbE and 25GbE adapters. One port can be shared with the management processor for Wake-on-LAN and NC-SI.
